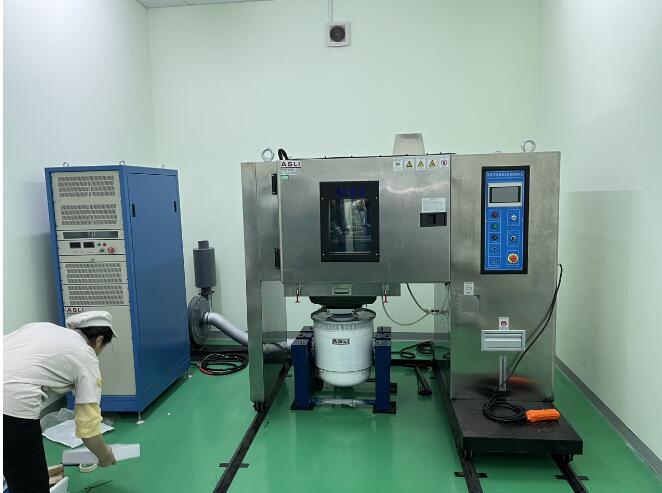

ASLI temperature(humidity) Combined system installed successfully in Vietnam
THV Environmental Test Systems
This combined testing method, also known as The Department of Defense’s AGREE (Advisor Group on Reliability of Electronic Equipment) method of testing, combines three testing environments (temperature, humidity and vibration) in one chamber.
Model Selection
The following Model identifies some of configurations of chamber sizes (internal chamber volume), For more details on ASLI shaker specifications in general and/or the process of choosing an adequate THV chamber for specific needs, please contact ASLI sales department.
Name | Temperature Humidity And Vibration Integrated Test Chamber | ||
Model | THV-408(A~F) | THV-1000(A~F) | THV-1500(A~F) |
Internal Dimension WxHxD(mm) | 600x850x800 | 1000x1000x1000 | 1500x1500x1500 |
External dimension WxHxD (mm) | 850x1950x2100 | 1300x2200x2400 | 1800x2400x3000 |
Temperature Range | Low temperature: (A:25ºC; B:0ºC; C:-20ºC; D: -40ºC; E: -60ºC; F:-70ºC) High temperature:100ºC(150ºC) | ||
Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier) | ||
Control Accuracy of temperature and humidity | ±0.5ºC; ±2.5% R.H. | ||
Temperature Rising / Falling Velocity | Temperature rising approx. 0.1~3.0ºC/min ; | ||
Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection | ||
Vibration Test Equipment | Choose proper vibration test bench according to customer's test condition, the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference | ||
