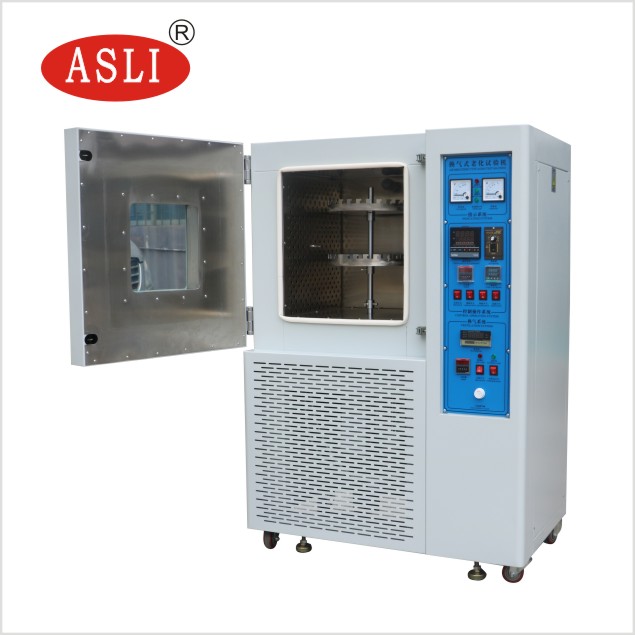

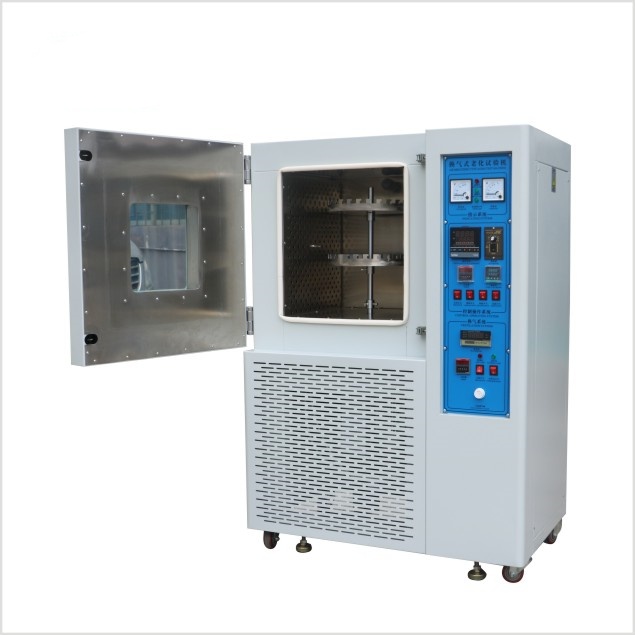

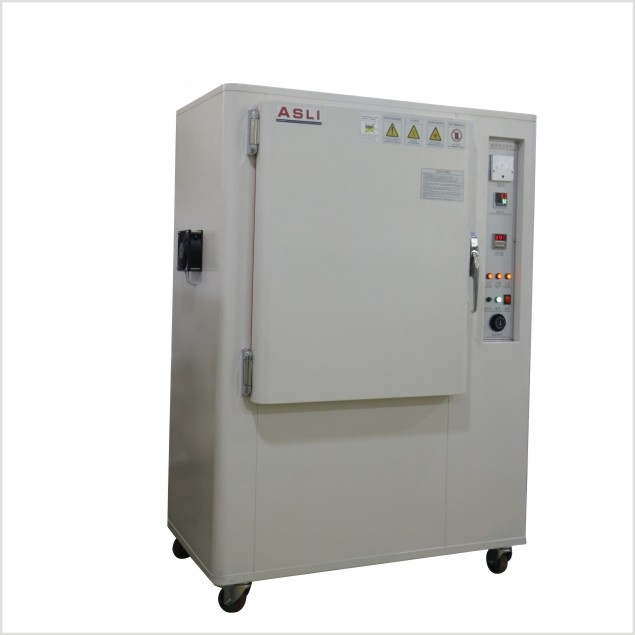

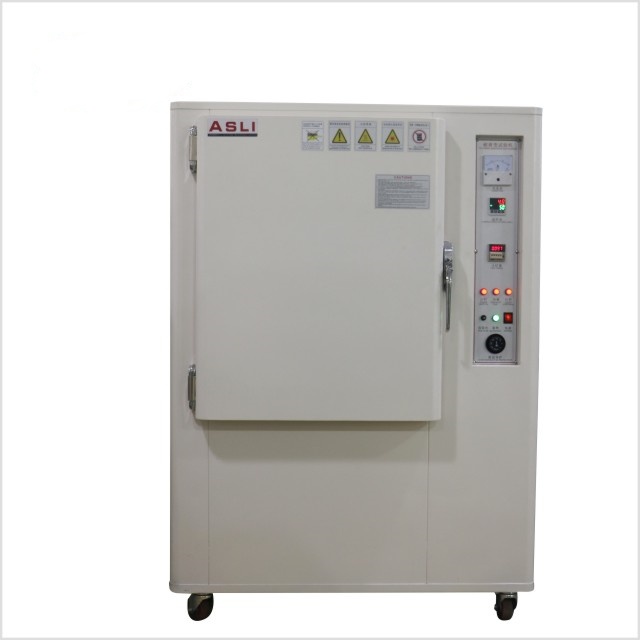

ASTM-D2436 Standard Environmental Ventilation Aging Test Chamber for Rubber is suitable for heat resistance test of electrical insulating materials, electronic spare parts, gas aging test of platicized products, to check its adaptability to storage and operation under high temperature environment conditions, compare the properties after aging in air under simulated high temperature and atmospheric pressure.
ASTM-D2436 Standard Environmental Ventilation Aging Test Chamber for Rubber is used to test the material heat-resistance of polymer materials (plastics, plastic) and electronic parts, electrical insulation materials, such as: wire and cable sheathing, heat-shrinkable tubing, rubber or PVC materials.
Ventilation Conversion Formula:
V: Capacity of case;
X: Power consumed when open the air valve
Y: Power consumed when closed
t: Temperature difference between working and environmental
Touch Screen Ventilation Aging Testing Chamber technical parameters:
|Internal Dimension W×H×D(mm)||450×500×450||500×600×500||600×750×600|
|External Dimension W×H×D(mm)||1000×1000×700||1150×1200×850||1350×1500×1000|
|Internal and External Material||Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or see cold-rolled steel with paint coated.|
|Temperature Range||RT+10ºC~200ºC (300ºC)|
|Uniformity of Distribution||±2.0ºC|
|Air Ventilation Rate||0-200 times/hr adjustable, with an ventilative adjustment button, Watt/Hour|
|Speed of Test Frame |
ASTM-D2436 Standard Environmental Ventilation Aging Test Chamber for Rubber Features:
1. Easy to operation and the box using CNC machining, elegant design, innovative and adopt counterproductive handle.
2. Internal material is high imported SUS304 mirror Stainless steel or 304B TIG, outside is A3 Steel spray, it improves the texture and appearance of cleanliness.

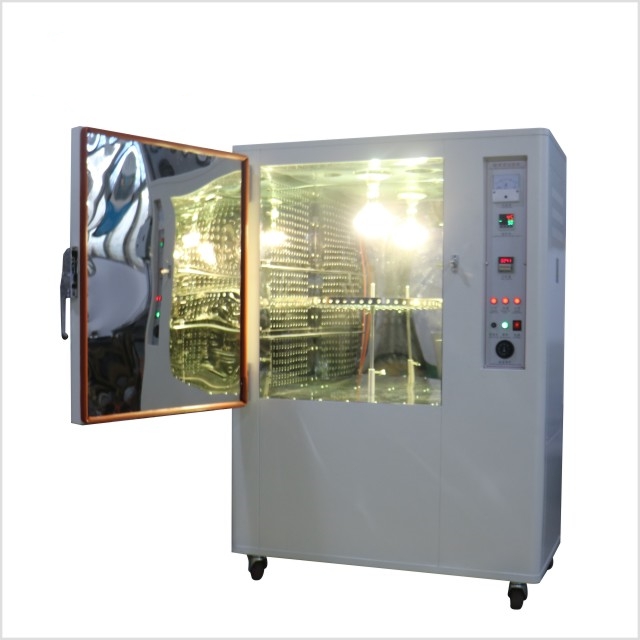

4. You can visually observe through huge Tempered glass windows with lights anytime and clearly.
5. Good uniformity of temperature
7. With D.50mm test holes on the left side for external test power line or signal line.
1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
7. Lack of Anti-phase protection system.
8. Overload protection for circulation fan motor.
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.ASTM-D2436 Standard Environmental Ventilation Aging Test Chamber for Rubber is our star products , and we had obtained the CE certification for this machine .
