ASTM1149 Programmable Ozone Climatic Aging Test Chamber

Ozone levels in the atmosphere is the main factors of rubber cracking, ASTM1149 Programmable Ozone Climatic Aging Test Chamber simulation and strengthen the ozone in the atmosphere conditions, studied the effect of ozone on rubber, rubber resistance to ozone aging fast identification and evaluation of performance and the antiozonant shielding efficiency of the method, and then take effective measures, the anti aging in order to improve the service life of rubber products.

Inquire Now
Description
Product Description

ASTM1149 Programmable Ozone Climatic Aging Test Chamber is used to test the ozone environment, the characteristics of crack-resistant rubber, ozone resistance testing machine, can control and adjust the concentration of ozone environment, to determine the anti-ozone properties of the specimen. The equipment can comply with the standard: JISK6259 ASTM1149 ISO1431 GB/TTB62 GB/T13642

Product Parameters

ozone climatic aging test chamber technical parameters:

 Model OA-80 OA-408 OA-800
 Internal Dimensions WxHxD (mm) 400x500x400 600x850x800 1000x1000x800
 Internal Dimensions WxHxD (mm) 950x1650x950 1200x1950x1350 1600x2000x1450
 Temperature Range  RT+10ºC~+65ºC
 Control Accuracy
of Temperature
 ±0.5ºC
 Distribution Uniformity
of Temperature
 ±2.0ºC
 Analytic Accuracy
of temperature
 0.1ºC
Ozone Concentration (pphm)  1~1000, adjustable
 Deviation of  Ozone Concentration  ≤10%
 Ozone Generator  Silent discharge tube type
 Internal and External Material  Material of the inner box is SUS 304# stainless steel, of the outer box is
stainless steel or SEE cold-rolled steel with paint coated.
 Insulation Material  Polyurethane rigid foam / superfine glass fiber cotton
 Security  Leakage, short circuit, over-current protection
 Power  AC 220V



Detailed Photos

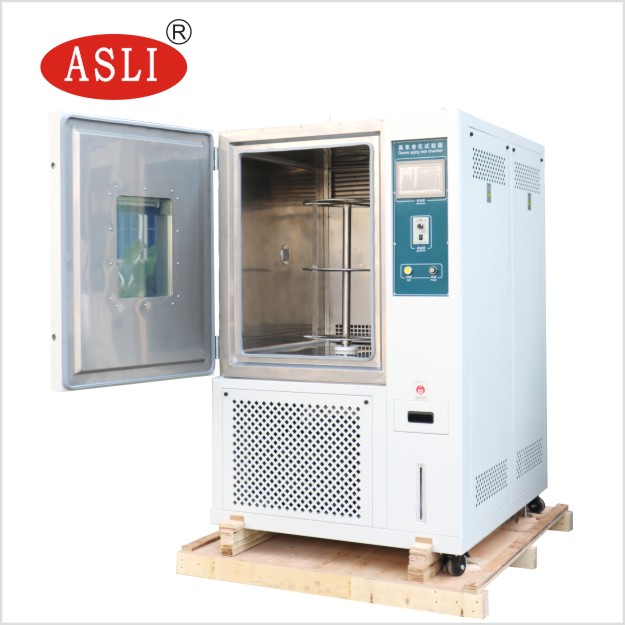

Dynamic Test Rig Ozone Climatic Aging Test Chamber

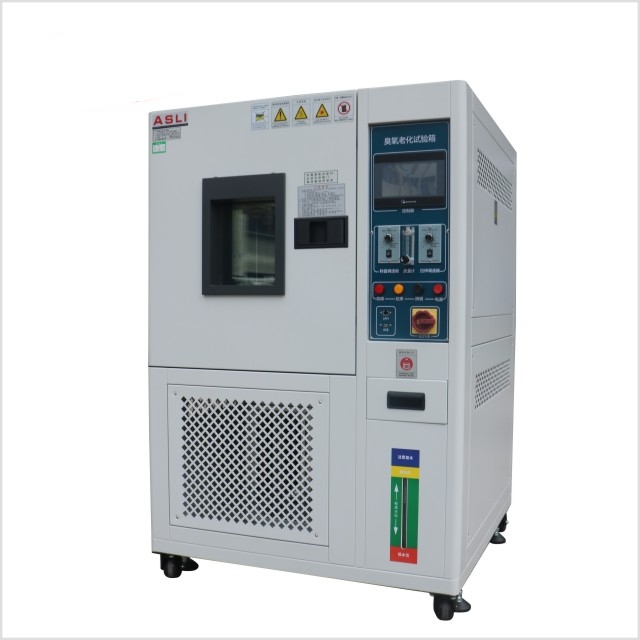

Dynamic Test Rig Ozone Climatic Aging Test Chamber
Dynamic Test Rig Ozone Climatic Aging Test Chamber

Dynamic Test Rig Ozone Climatic Aging Test Chamber


ASTM1149 Programmable Ozone Climatic Aging Test Chamber features:
1. Stainless steel inside and outside
2. Outside made iron with powder coating
3. Durable ozone generator
4. Insulation material is High-density glass fiber cotton
5.  Bottom is universal round wheel and fixed foot
6. Window materials is multilayer steel-glass, the inside is chip conductive


Saftey device:
1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
7. Lack of Anti-phase protection system.
8. Overload protection for circulation fan motor.

ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber,  Programmable Ozone Climatic Aging Test Chamber,Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
