Other Mechanical Environmental Tester

300mm to 2000mm Free Fall Drop Impact Tester

300mm to 2000mm Free Fall Drop Impact Tester used to test the damage and impact of packaged products by the free fall, including packing containers Ling, angle, surface can be tested, it mainly used to assess withstand drops of product packaging parts in the transport and loading, thereby improving and perfecting package design.

Inquire Now
Description
Product Description

300mm to 2000mm Free Fall Drop Impact Tester is used for evaluating the damage and impact resistance when handling and carrying a package, it is to do a free fall test for the area, angle and edge of the package. The tester equipped with a digital height display and decoder to do the height tracking, ensure to calculate a precision fall height, which the error has no greater than 2% or 10mm. The tester use single arm and double column structure, which can electric reset, electronic control and electronic lifting device, easy using and easy to set the sample.


300mm to 2000mm Electronic Product Packaging Material Lab Drop Impact Tester

Product Parameters

Packaging Lab Drop Tester Parameters:

Model
AS-DT-200
Max. Weight of Test Samples (Kg)
100
Height of Drop (mm)
300~2000
Max. Dimension of Test Sample WxHxD (mm)
1000x800x1000
Falling Floor Size WxHxD (mm)
1700x50x1200
Drop Method
Face, edge, angle
Test Bench External Dimension WxHxD (mm)
1700x2700x1200
Weight (Kg)
700

Detailed Photos

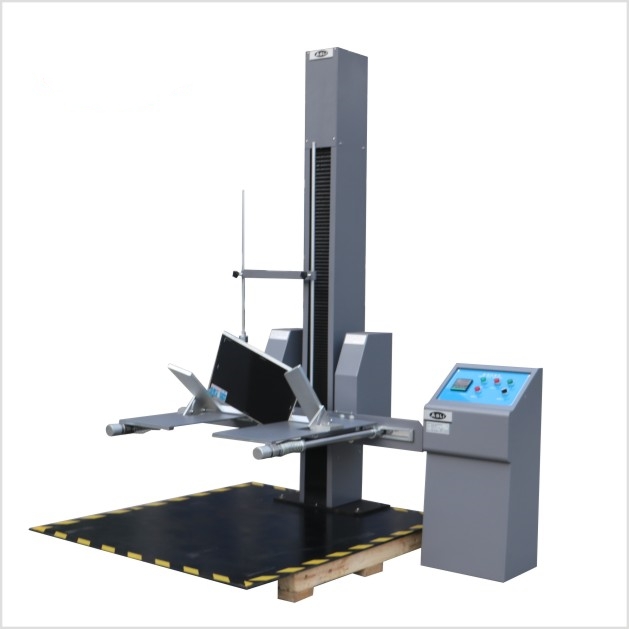

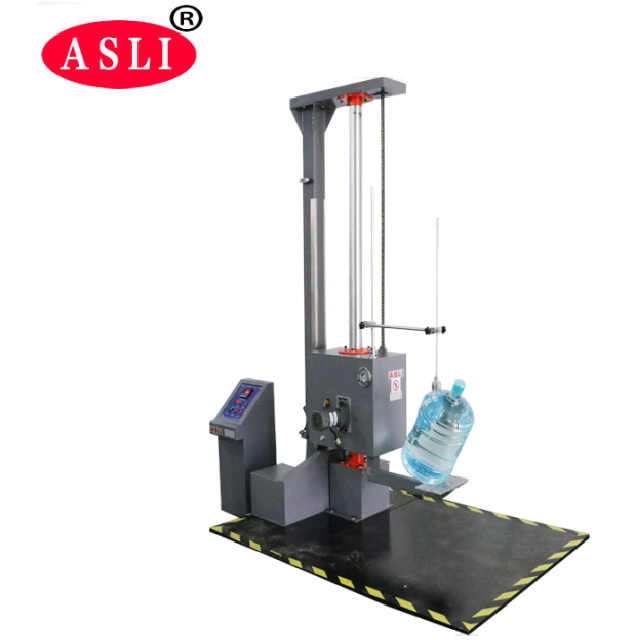

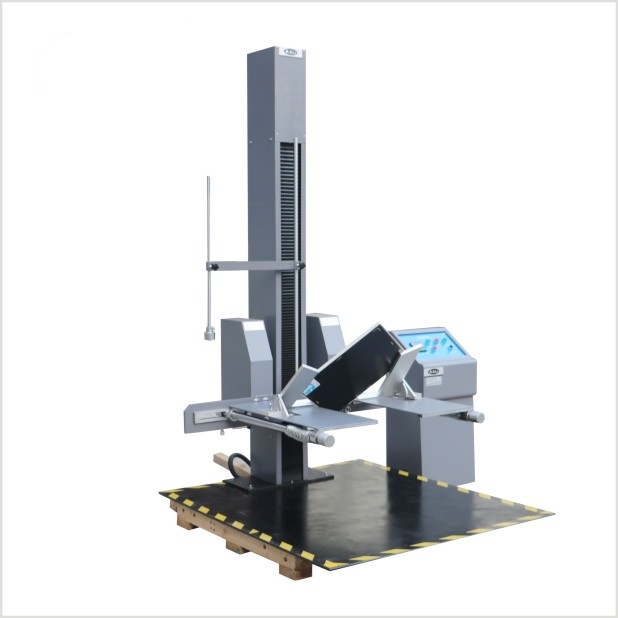

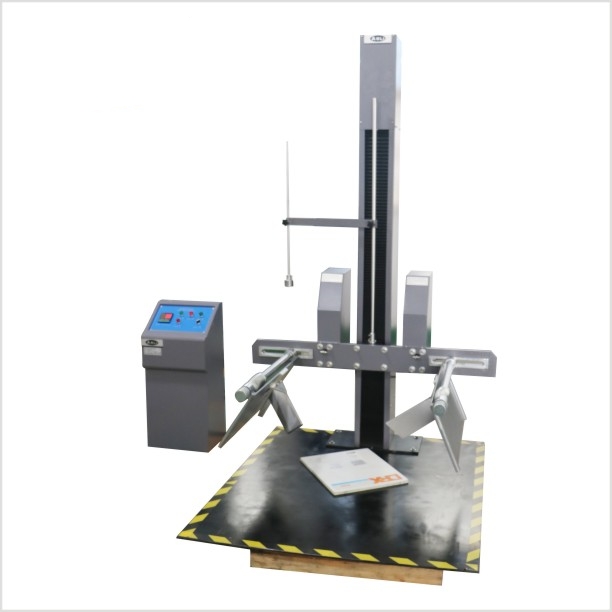

300mm to 2000mm Electronic Product Packaging Material Lab Drop Impact Tester
300mm to 2000mm Electronic Product Packaging Material Lab Drop Impact Tester
300mm to 2000mm Electronic Product Packaging Material Lab Drop Impact Tester


300mm to 2000mm Electronic Product Packaging Material Lab Drop Impact Tester

Packaging Drop Test Machine Feature

1. Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.
2. It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.
3. High Accuracy, direct display
4. It is steady when it is dropping and lifting

Exhibition

300mm to 2000mm Electronic Product Packaging Material Lab Drop Impact Tester

Our Advantages
1.Professional technology support.

2.Full experience of large numbers containers loading in Chinese sea port.

3.Fast shipment by reputed shipping line.

4.Best service after shipment with emails.

5.We are professional test equipment manufacturer in China with excellent experience and skills, also have best quality products



Certifications
300mm to 2000mm Electronic Product Packaging Material Lab Drop Impact Tester



Packing & Delivery

300mm to 2000mm Electronic Product Packaging Material Lab Drop Impact Tester
If you need to know more information about 300mm to 2000mm Free Fall Drop Impact Testerplease don't hesitate to send the inquiries to us.
