Temperature Humidity Test Chamber Temperature Cycling Testing

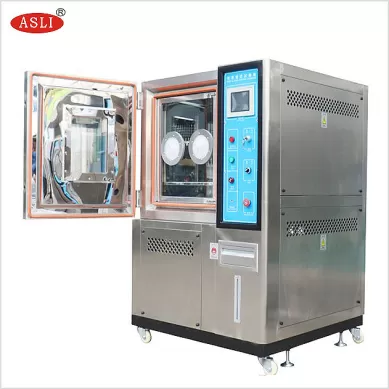

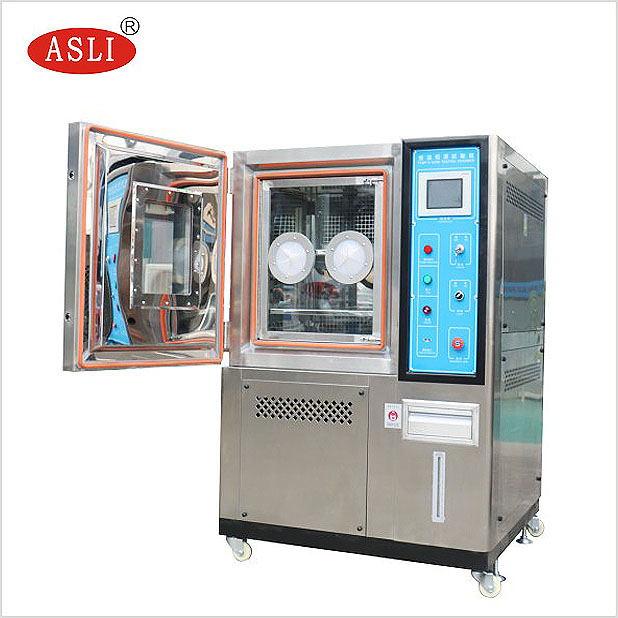

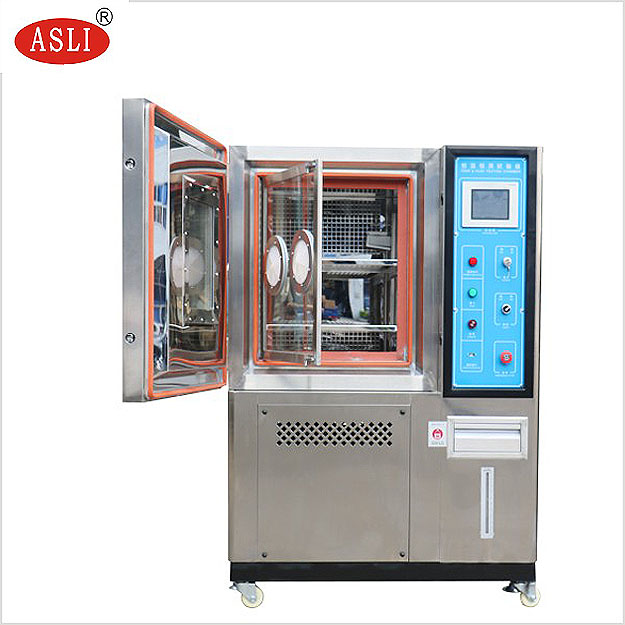

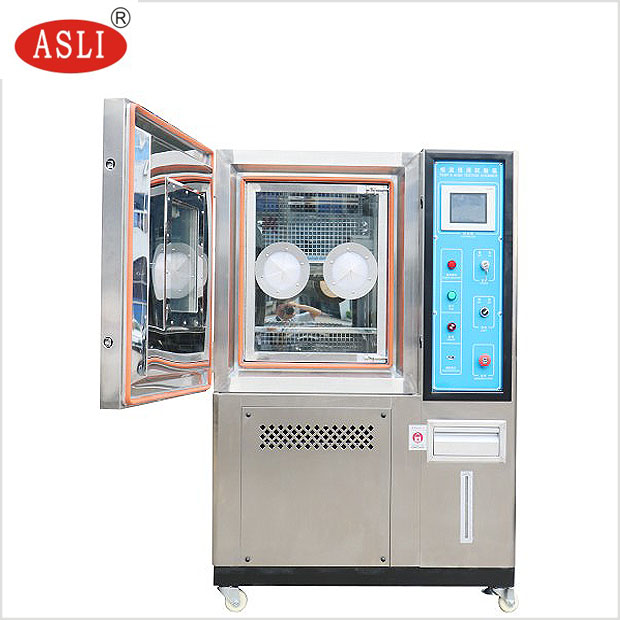

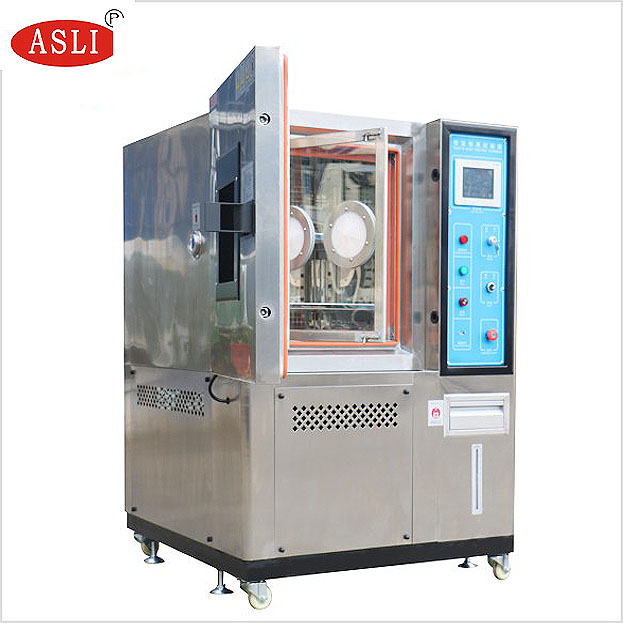

With Inner Operation Door Energy Saving Temperature(&Humidity)Test Chamber

With Inner Operation Door Energy Saving Temperature(&Humidity)Test Chamber  are applicable for testing the performance indexes of aeronautic & astronautic products, ships, weapon, accdemies, motorcycle, information electronics, instruments & meters, materials, electronic engineering products Climatic application testing. ASLI offer many pre-engineered and custom sizes to fit your exact testing requirements.  Available models include a wide range of temperature ramp rates, humidity levels, and many standard and optional features including temperature cycling, steady-state testing, and fast change rate.  Additional options include access ports, Explosion Resistant, Quiet Mode, additional shelves, Battery Safety options, Dry Air Purge, Demineralizer Water Filter System and more.

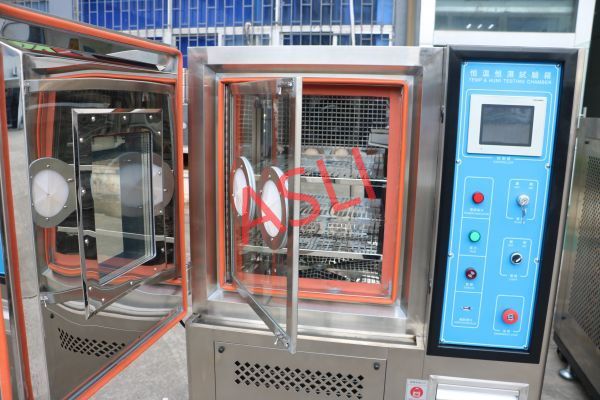

This Chamber with Unique features the middle tranpartent door and operation hole achieve for inspection the test item during testing without open the chamber door.

Energy saving and also change no testing conditions from time to time inpection.

Should u have similar needs mention the same to our sales when inquiry.



Inquire Now
Description

Programmable Constant Climatic Test Cabinet

Model TH-80  TH-150  TH-225  TH-408  TH-800  TH-1000
Internal Dimension 400x500x400 500x600x500 600x750x500 600x850x800 1000x1000x8001000x1000x1000
WxHxD (mm)
External Dimension  950x1650x9501050x1750x10501200x1900x11501200x1950x13501600x2000x14501600x2100x1450
WxHxD (mm)
Temperature RangeT min:   Low Temperature (A:25℃  B:0℃  C:-20℃  D:-40℃  E:-60℃  F:-70℃)
Tmax:  High Temperature (150℃, 180℃, 200℃)
Humidity RangeOptional: ( 20%~98%R.H /10%-98% R.H. / 5%-98% R.H )
Analytic Accuracy/ 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.
Distribution uniformity
of temperature
and humidity
Control Accuracy  ±0.5℃; ±2.5% R.H.
of Temperature and
Humidity
Temperature Rising/ Temperature rising approx.  0.1~3.0℃/min
Falling Speed Ratetemperature falling approx.  0.1~1.5℃/min;

( The Falling Speed Rate Min.1.5℃per minute is a special optional condition)
Material Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or
SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperature,
high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System Wind cooling or water cooling/single segment compressor(-40℃, double segment
compressor -70℃)
Protection Devices Fuse-free switch, overloading protection switch  for compressor, high and low voltage
coolant protection switch, over-humidity and over-temperature protection switch, fuses,
fault warning system, water short storage warning protection
Optional Accessories   Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Compressor French Tecumseh Brand,Germany Bizer Brand
 Power AC220V  1ph 3 lines, 50/60HZ ,  AC380V   3ph  5 lines , 50/60HZ
Approx. Weight (Kg) 150 180 250 320 400 450
