Vibration Shaker and Simulated Transportation Tester

Automobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab testing

Electromagnetic vibration table is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.

Inquire Now
Description

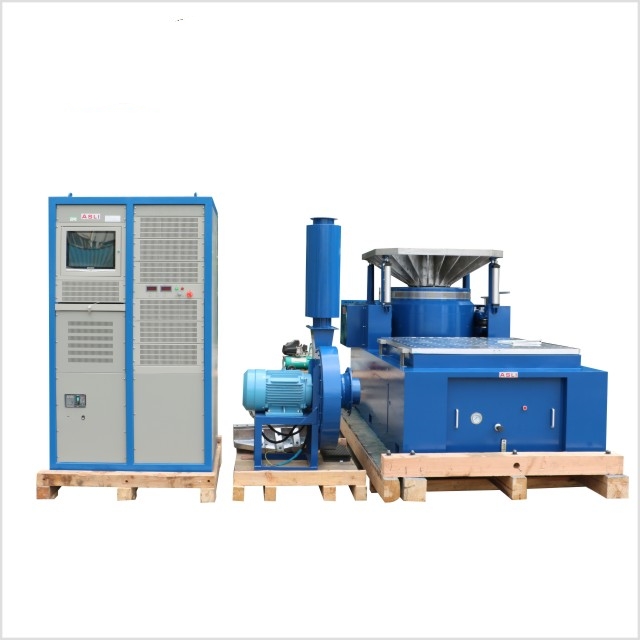

Automobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab testing

Electro-dynamic Vibration Testing System



Electromagnetic vibration table is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.



Specification


NameAutomobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab testing
ModelRated Sine Force (N)Rated Random Force (N)Frequency Range (Hz)Rated Acceleration (m/s2)Rated Speed(m/s)Rated displacement (p-p)mmMax. Loading (Kg)moving coil (Kg)Dimension of Moving coil (mm)
ES-6600060003-350010001.6251806.5Φ230
ES-6a600060003-350010001.65125012Φ230
ES-1010000100003-300010001.85127014Φ240
ES-2020000200003-300010001.85130030Φ320
ES-3030000300003-280010001.85l45040Φ450
ES-4040000400003-280010001.85150050Φ450
ES-5050000500003-270010001.85175050Φ450
ES-6060000600003-270010001.85175060Φ450
ES-1001000001000003-250010001.851100090Φ450



Feature

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.

7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
