Walk in Chamber Temperature Aging Room

Programmable Walk in Climatic Test Chamber for EV Charger

Programmable Walk in Climatic Test Chamber for EV Charger is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.

Inquire Now
Description

Programmable Walk in Climatic Test Chamber for EV Charger


Purpose:

This chamber is suitable for the products to do the temperature and humidity testing. Inner box size, the temperature and humidity range, and special requirements can be customized. Laboratory floor loading capacity: 600kg/m2 (uniform load).

Application:
Computer, TV, monitors, printers, fax and other electronic products to do the whole resistance to heat and cold test. LED, PCB and other products do the high temperature aging test; Automobile to do the high and low temperature damp heat test


Product Parameters
Walk-in Humidity Chamber Technical Parameters
 Model  THR-volume (low-temperature options : A ~ F)
 Inner Dimensions(cm)  Customers designated space size and design
 Temperature Range

 Low Temperature(A:25   B:0℃   C:-20  D:-40  E:-60   F:-70 )

 High Temperature 80  (80  ~200 is optional)

 Humidity Range  20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
Indication Resolution/
Distribution Uniformity of
Temperature & Humidity
 0.1d ; 0.1% R.H/±2.5 ; ±3.5% R.H.
 Control Accuracy of
Temperature and Humidity
 ±0.5 ; ±2.5% R.H.
 Temperature Rising/
Falling Velocity
 Temperature rising approx.  0.1~3.0°C/min;
temperature falling approx. 0.1~1.0°C/min;
( faster temperature change rate is optional )
 Cooling System  Water cooled or Air cooling
 Protection Devices  Fuse-free switch, overloading protection switch  for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses,  fault warning system, water short storage warning protection
 Optional Accessories  Slope for cart , Recorder, Water Purifier, Dehumidifier
 Compressor  French Tecumseh Brand, Germany Bizer Brand
 Power  AC 380 V(±10%),50/60HZ ,3 phase  5 Lines

Programmable Walk in Climatic Test Chamber for Charger Temperature and Humidity Testing
Programmable Temperature And Humidity Chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane Handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test With interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into The humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23, R404A
6. LCD display screen, capable of displaying the set point and actual value at the same Time
7. The control unit has the functions of multiples segment program editing, with ramp rates Control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.


Detailed Photos

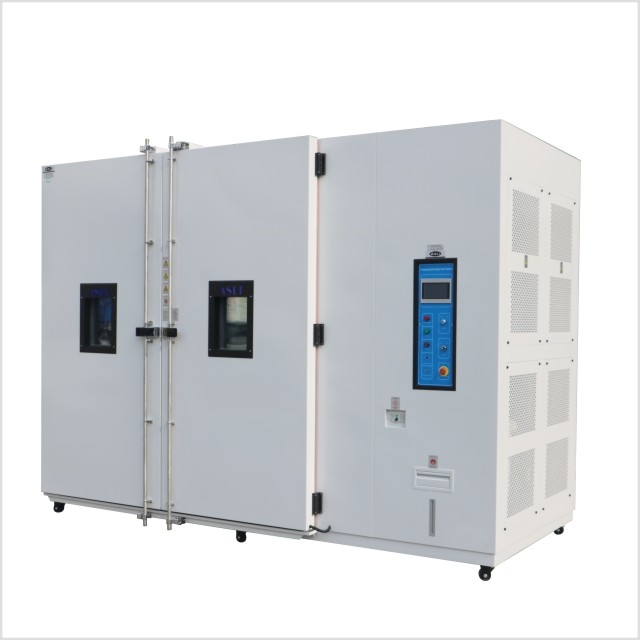

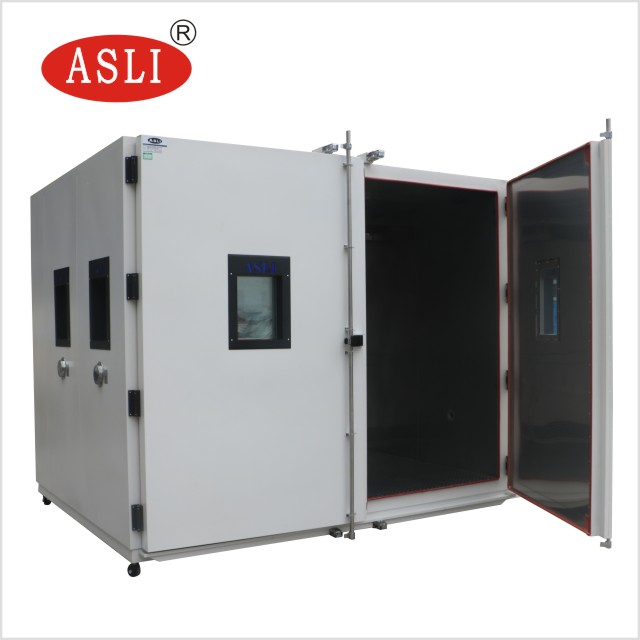

Walk in Temperature humidity Test chamber pictures:
Programmable Walk in Climatic Test Chamber for Charger Temperature and Humidity Testing
Programmable Walk in Climatic Test Chamber for Charger Temperature and Humidity TestingProgrammable Walk in Climatic Test Chamber for Charger Temperature and Humidity Testing
Programmable Walk in Climatic Test Chamber for Charger Temperature and Humidity Testing
Exhibition:
Programmable Walk in Climatic Test Chamber for Charger Temperature and Humidity TestingCertificates:
Programmable Walk in Climatic Test Chamber for Charger Temperature and Humidity Testing

If you need more information about Programmable Walk in Climatic Test Chamber for EV Charger , please don't hesitate to send your inquiry to us.
