Walk-In Stability Chamber for Large-Scale Climate Simulation
1 Product Name
1-1 Product Name: Walk-In temperature humidity test chamber
2 Main Technical Parameters
2-1 Dimension: According to the customer's requirements
2-2 Material: SUS#304ss
2-3 Temperature :-70°C~150°C (according to customer's requirements)
2-4 Temperature Indication Resolution: ±0.1°C
2-5 Temperature Control Accuracy: ±0.5°C
2-6 Temperature distribution uniformity:±2°C
2-6 Humidity: 20%-98% R.H (according to customer's requirements)
2-7 Humidity Indication Resolution: ±0.1%R.H
2-8 Humidity distribution uniformity: ± 5.0% R.H
Big Size Temperature Humidity Machine Technical Parameters
Model | THR-volume (low-temperature options: A~F) |
Inner Dimensions(cm) | Customers designated the space size and design |
Temperature Range | Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~150°C is optional) |
Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) |
| Indication Resolution/Distribution Uniformity of Temperature & Humidity | 0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H. |
Control Accuracy of Temperature and Humidity | ±0.5°C; ±2.5% R.H. |
Temperature Rising/Falling Velocity | The temperature is rising approximately. 0.1~3.0°C/min The temperature is falling approximately. 0.3~1.0°C/min; (A faster temperature change rate is optional) |
Cooling System | Water-cooled or air-cooled |
Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
Optional Accessories | Slope for cart, Recorder, Water Purifier, Dehumidifier |
Compressor | French Tecumseh Brand, Germany Bizer Brand |
Power | AC 380 V(±10%),50/60HZ ,3 ph 5 Lines |

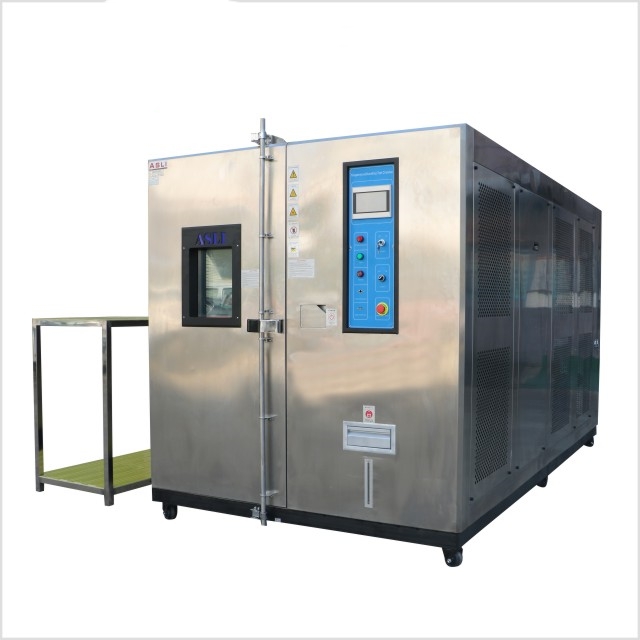

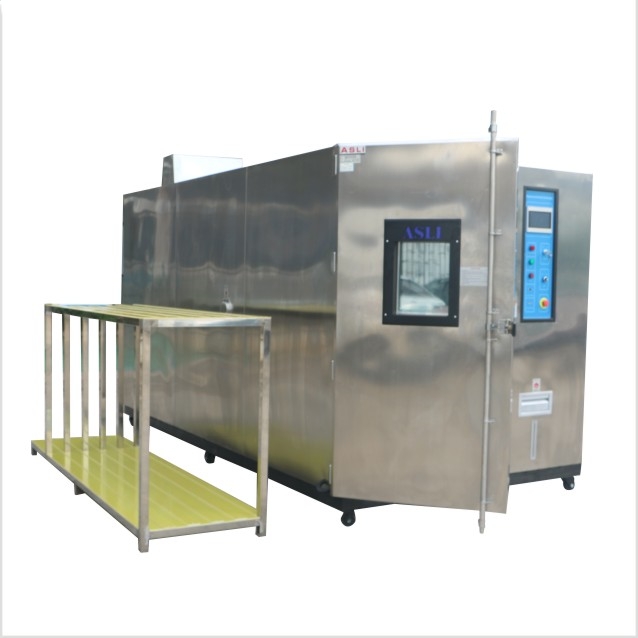

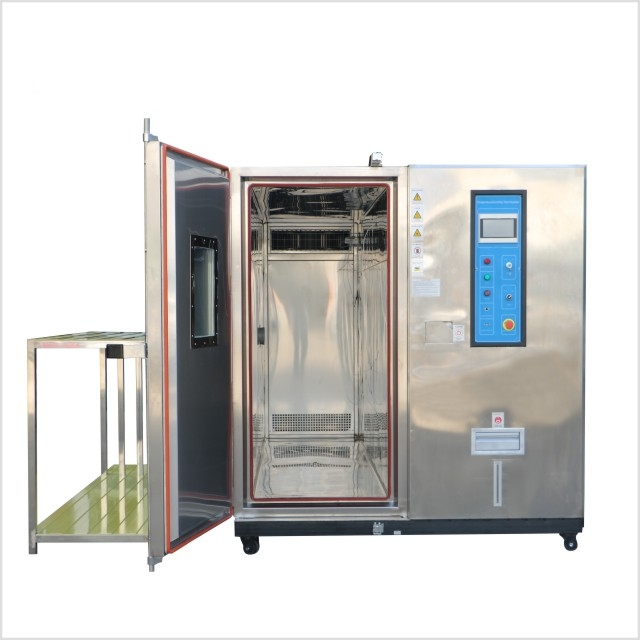

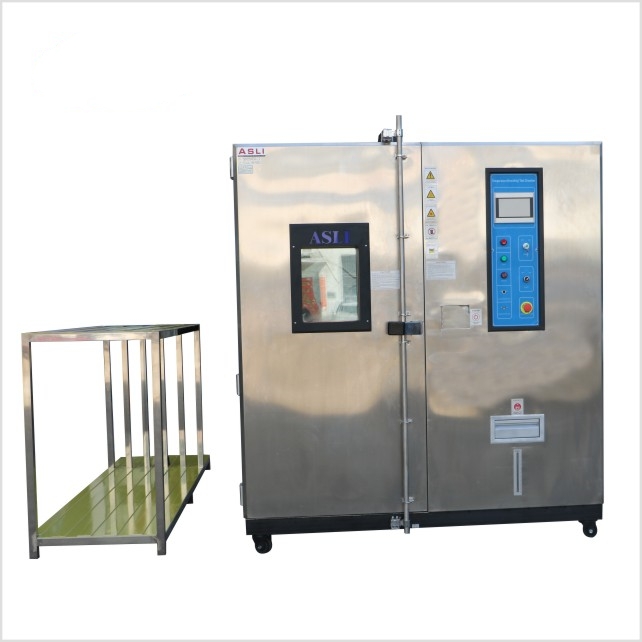

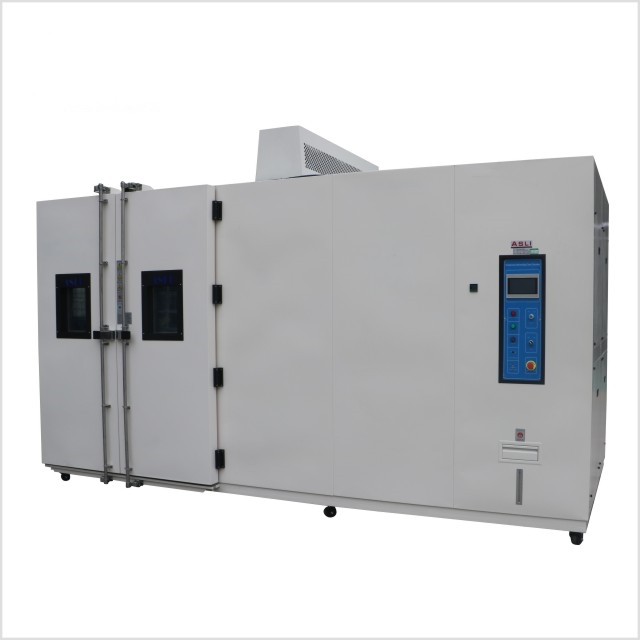

Product Pictures
Walk-In Aging Room/Climatic Room in customer factory.
Installation of the walk-in temperature test chamber at the customer's factory
Package: PP film first, and then 10mm foam between the machine and the case, and outside is a standard export plywood case.
Short introduction about the ASLi factory:
We are a long-time testing equipment manufacturer. In the past 28 years, we devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The Walk-in Temperature Humidity Stability Test Chamber for Auto Spare Parts is our star product, and we have obtained the CE certification for this machine.
Exhibition:
Please don't hesitate to send your inquiries if any needs about Walk in Temperature Humidity Stability Test Chamber for Auto Spare Parts.
