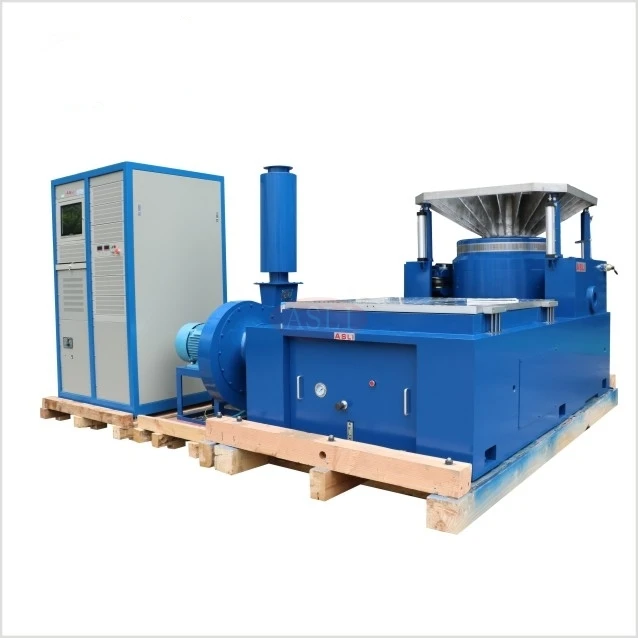

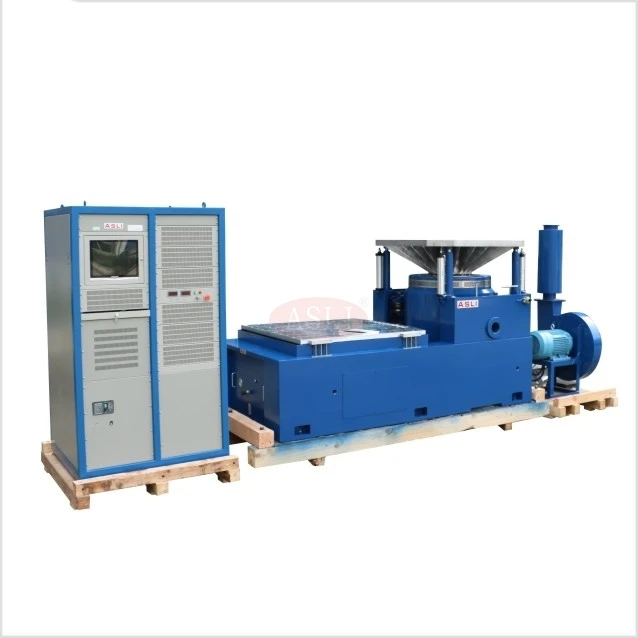

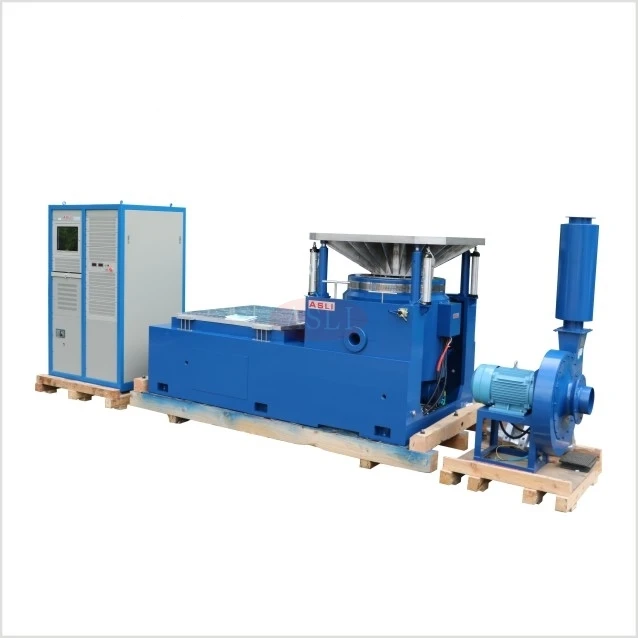

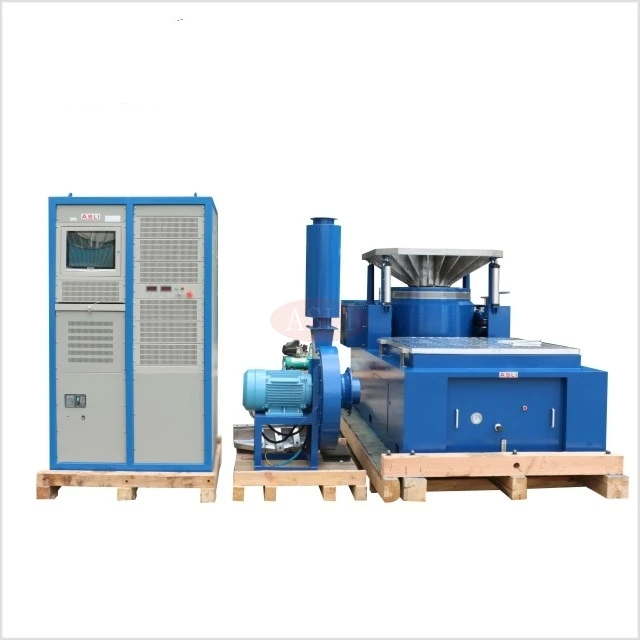

3 Axis High Frequency Electromagnetic Vibration Shaker is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition, and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable.
| Model | Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s²) |
Rated Speed (m/s) |
Rated Displacement (p-p) mm |
Max. Loading (kg) |
Moving Coil (kg) |
Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
|---|---|---|---|
| LT0303 | 300×300×22 | 5-1000 | 6.6 |
| LT0303 | 300×300×26 | 5-1500 | 7.8 |
| LT0303 | 300×300×30 | 5-2000 | 9.0 |
| LT0404 | 400×400×22 | 5-1000 | 11.2 |
| LT0404 | 400×400×26 | 5-1400 | 13.2 |
| LT0404 | 400×400×30 | 5-2000 | 16.0 |
| LT0505 | 500×500×25 | 5-1000 | 19.3 |
| LT0505 | 500×500×30 | 5-1500 | 23.1 |
| LT0505 | 500×500×35 | 5-2000 | 27.0 |
| LT0606 | 600×600×25 | 5-1000 | 27.5 |
| LT0606 | 600×600×30 | 5-1200 | 33.0 |
| LT0606 | 600×600×40 | 5-2000 | 45 |
| LT0707 | 700×700×25 | 5-800 | 36.8 |
| LT0707 | 700×700×30 | 5-1000 | 44.2 |
| LT0707 | 700×700×35 | 5-1500 | 52 |
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
|---|---|---|---|
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300×300 |
| VT0404 | 22 | 1500 | 400×400 |
| VT0505 | 30 | 500 | 500×500 |
| VT0606 | 58 | 350 | 600×600 |
| VT0808 | 140 | 350 | 800×800 |
| VT1010 | 180 | 350 | 1000×1000 |
| VT1212 | 250 | 350 | 1200×1200 |
| VT1212 (Round) | 220 | 350 | Φ1200 |
3 Axis High Frequency Electromagnetic Vibration Shaker can complete sinusoidal vibration test and broadband random vibration test respectively, and can complete classic (half sinusoid, trapezoid, back peak saw tooth) pulse and shock response spectrum test. The comprehensive test of mechanics and environment conditions can be carried out with a climate chamber.
The high frequency vibration test system is widely used in the fields of national defense, weapon, aviation, spaceflight, communication, electronics, electric appliance, transportation and household appliances. According to the requirement, it can provide users with comprehensive test equipment in multiple environments such as climate and mechanics.
The 3 Axis High Frequency Electromagnetic Vibration Shaker is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries.
This type of equipment is used for discovering early faults, simulating the actual working condition, and structure strength test. The product application is wide, the application width is obvious, and the test effect is remarkable and reliable.
Vibration and shock qualification for defense equipment and weapon systems.
Environmental stress screening for airborne and spaceflight components.
Reliability verification for communication equipment under vibration and shock.
Early fault discovery for electronic assemblies and components.
Structure strength and durability testing for automotive parts.
Simulated transport and operational vibration testing for household appliances.
Every component is matched and calibrated as a complete system — eliminating integration risk and reducing commissioning time on your lab floor.
Air-cooled, lightweight armature with high first-order resonance.
Switching-type, over 90% efficiency, low-distortion output.
DSP closed-loop control with sine, random, shock, and RSTD modes.
Custom or standard interface plates matched to your DUT footprint.
Low-noise blower designed for continuous operation.
Close-up views of key components — shaker body, VT / LT expanders, and installation details.
High-resolution photos and dimensional drawings are available on request.
Send your DUT dimensions, weight, and test standard. Our engineering team will reply with a recommended model and fixture solution within one business day.
