Model | F-TH-150(A~F) | F-TH-225(A~F) | F-TH-408(A~F) | F-TH-800(A~F) |
|
Internal Dimension
W*H*D( mm) | 500*600*500 | 600*750*500 | 600*850*800 | 1000*1000*800 |
|
Internal Dimension
W*H*D (mm) | 1100*1750*1600 | 1200*1800*1700 | 1250*1900*1900 | 1600*2050*2150 |
|

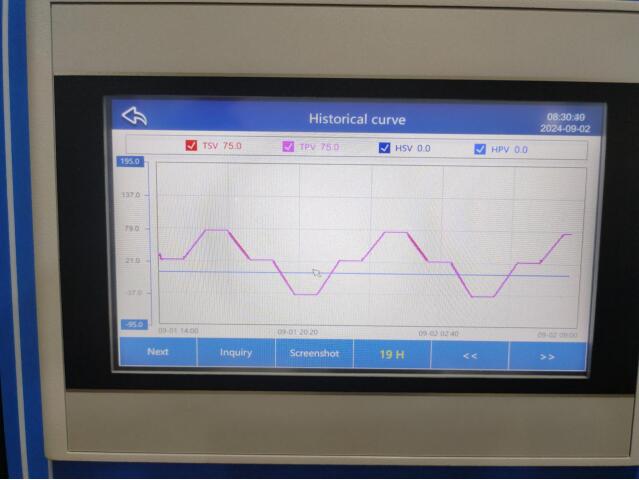

Range of Fast
Temperature Change | Temperature Range: -70~+150 degree C;
Range of Fast Temperature Change: -45~+85degree °C;
Max temperature rising/falling speed is 20 degrees C/min when the whole process is with linear control. |
Humidity Range(Optional) | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional ,need Dehumidifier) |
Indication resolution/
Distribution Uniformity
of Temperature and Humidity | 0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H. |
Control Accuracy of
Temperature and Humidity | ±0.5degree C; ±2.5% R.H. |

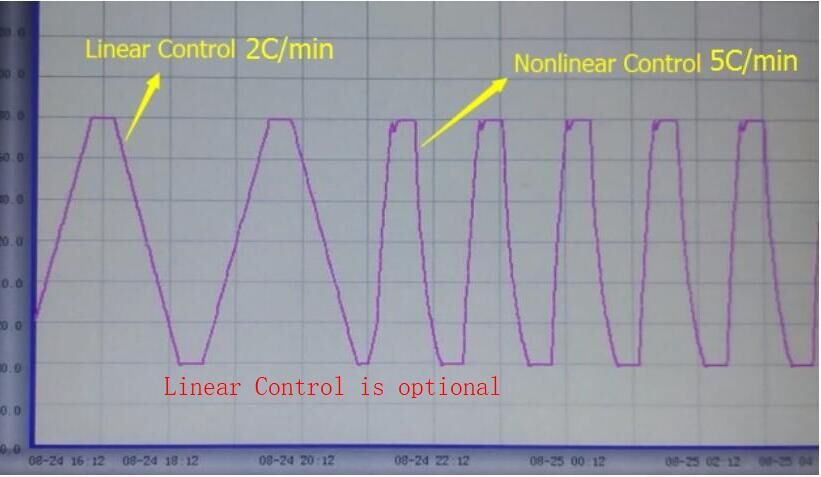

Temperature Rising/
Falling Velocity | Rising/Falling Speed Rate with linear control: 3~20degree C/min, adjustable
Rising/Falling Speed Rate non-linear control: 3~30degree C/min, adjustable |
Material | The interior material is SUS 304# stainless steel, exterior is stainless steel or cold-rolled steel with a paint coating. |
Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetate foam insulation materials |
Cooling System | Water-cooled/single-segment compressor |
Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
Optional Accessories | Inner door with operation hole(Optional), Water Purifier, Dehumidifier |
Compressor | French Tecumseh Brand, Germany Bizer Brand |
Power | AC380V 3Ph 5 lines, 50/60HZ |
Approx. Weight(Kg) | 250 | 350 | 450 | 600 |
|
