High stress of 5C/min~15C/min. This faster temperature (& humidity) chamber enables the application of high stress to the specimen at a rapid temperature change rate of 5C/min. or more. Due to the larger refrigeration system 5C/min. or more are achieved from -45C to +155C with the F-TH and F-HL models (with or without specimen loaded).

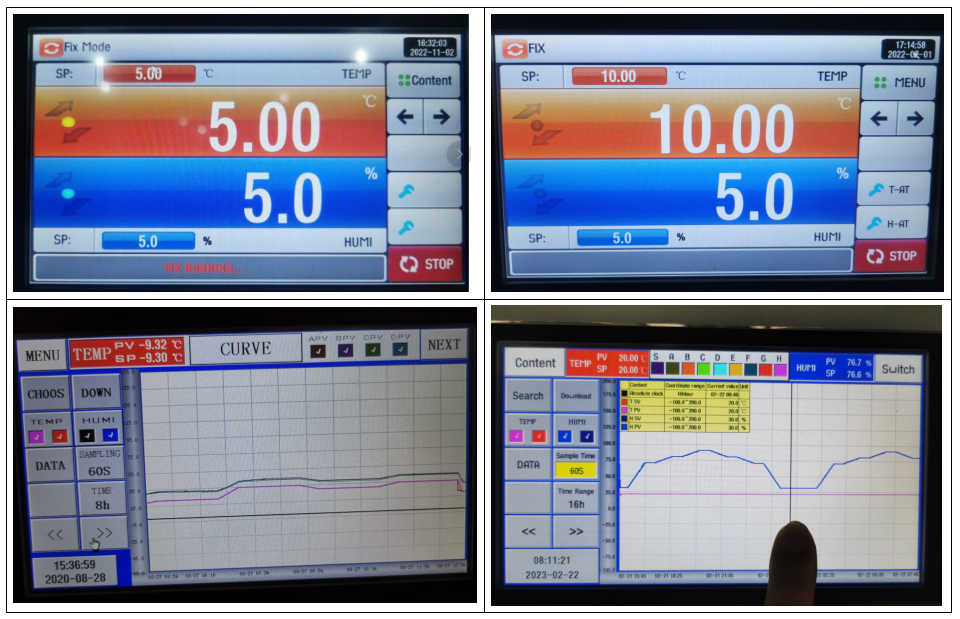

Instrumentation integrated into the door To minimize the required installation space for the device, the instrumentation section has been integrated into the door. The controller unit is integrated on a bright and color LCD interactive touch-screen system which provides easy controlling of the chamber.

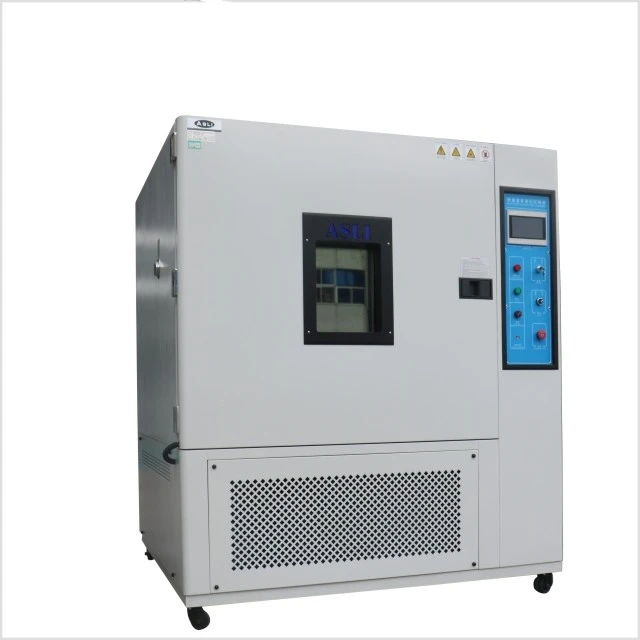

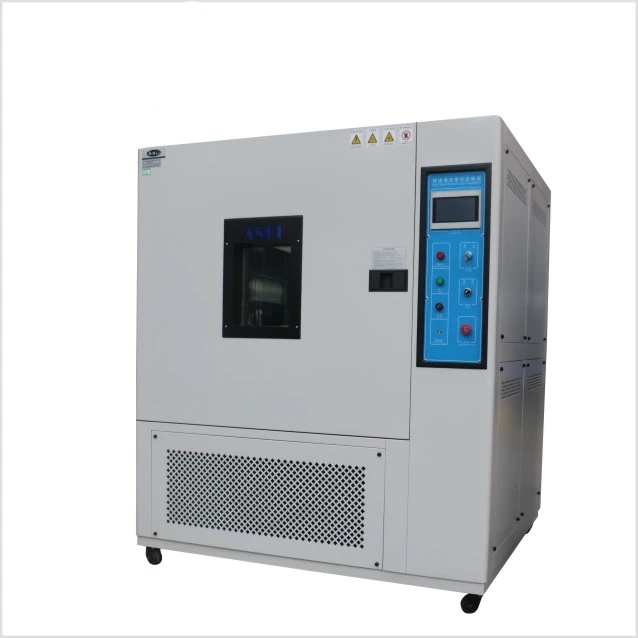

Lab Cycle Test Fast Temperature Change Rate Rapid Temperature Chamber
Inner door with operation hole (optional)
50mm or 100mm Entrance hole for test wire,
Sample Shelves, two layers
RS-232 or RS-485 communication

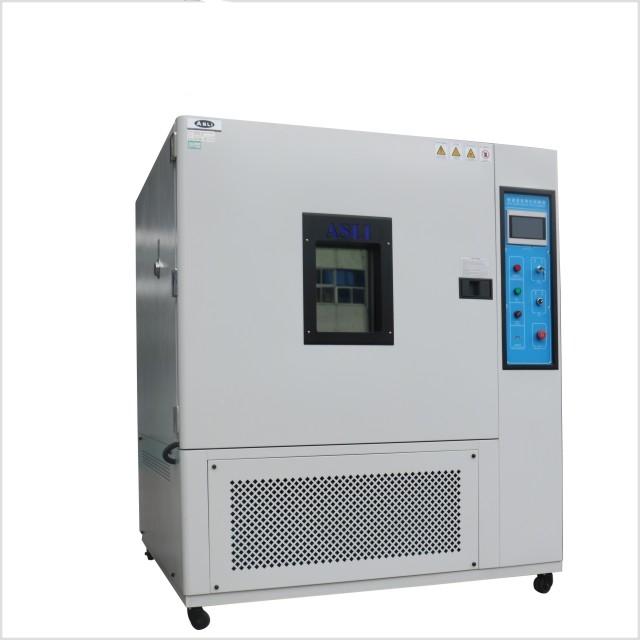

Fast Response Temperature Chamber Supplier Rapid-rate Temperature & Humidity Cycle Chamber is used to test various types of materials for their tolerances of heat,cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Range of Fast
Temperature Range: -70~+150 degree C;
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional ,need Dehumidifier)
0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H.
Control Accuracy of
±0.5degree C; ±2.5% R.H.
Rising/Falling Speed Rate with linear control : 3~20degree C/min, adjustable
Interior material is SUS 304# stainless steel,
exterior is stainless steel or SEE cold-rolled steel with paint coated.
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Water cooled/single segment compressor
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Inner door with operation hole(Optional), Water Purifier, Dehumidifier
French Tecumseh Brand, Germany Bizer Brand
AC380V 3Ph 5 lines, 50/60HZ
