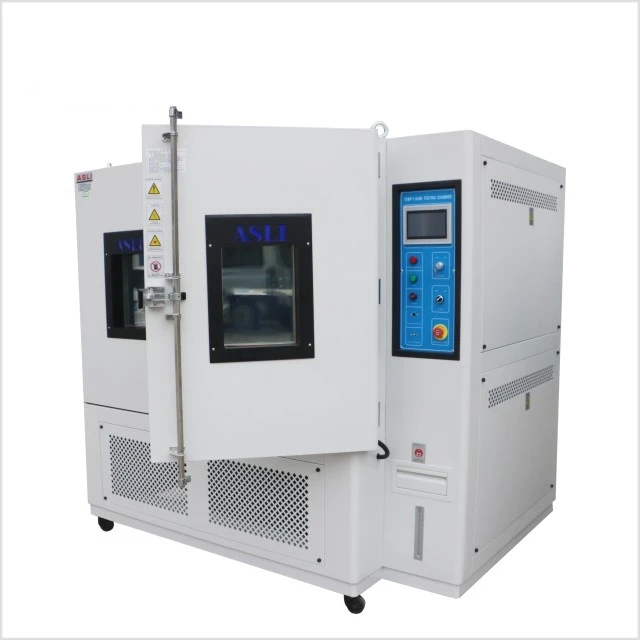

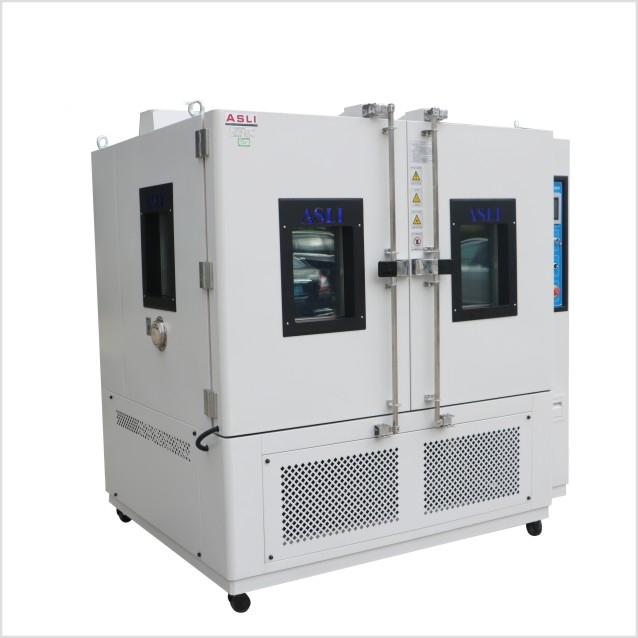

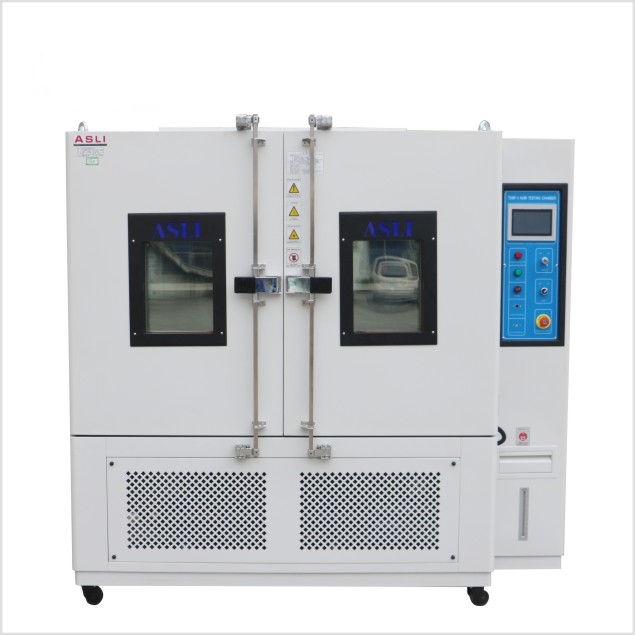

1500l Double-open Swing Door High & Low Temperature And Low Humidity Test Chamber
TS-80 / TS-150 / TS-252 — Static Temperature Endurance & Storage-Life Testing
| Parameter | TS-80 (A~C) | TS-150 (A~C) | TS-252 (A~C) |
|---|---|---|---|
| Internal Dimension W×H×D (mm) | 500 × 400 × 400 | 600 × 500 × 500 | 700 × 600 × 600 |
| External Dimension W×H×D (mm) | 1550 × 1950 × 1550 | 1600 × 2000 × 1700 | 1700 × 2100 × 1750 |
| Temperature Range of Testing Zone | Type A: −40 °C ~ +150 °C (200 °C optional) | Type B: −55 °C ~ +150 °C (200 °C optional) | Type C: −65 °C ~ +150 °C (200 °C optional) | ||
| High Temperature Range | +60 °C ~ +150 °C (200 °C optional) | ||
| Low Temperature Range | −10 °C ~ −40 °C (A) / −55 °C (B) / −65 °C (C) | ||
| Ramp Rate (Gradual) | Approximately 1 ~ 3 °C/min — designed for static endurance, not rapid shock | ||
| Control Accuracy / Distribution Uniformity | ± 0.5 °C / ± 2 °C | ||
| Internal and External Material | Inner box: SUS 304# stainless steel. Outer box: stainless steel or cold-rolled steel with paint coating. | ||
| Insulation Material | High-temperature resistant, high-density foam insulation material | ||
| Mechanics | P.I.D + S.S.R + Micro-computer balanced temperature control system | ||
| Cooling System | Semi-hermetic double-stage compressor (water-cooled) / Hermetic double-stage compressor (air-cooled) | ||
| Security Protection Devices | Non-fuse breaker; compressor high/low pressure switch; failure warning system; electronic alarm | ||
| Compressor | French Tecumseh brand; Germany Bizer brand | ||
| Power | AC 220 V 1-phase 3-wire, 50/60 Hz | AC 380 V 3-phase 5-wire, 50/60 Hz | ||
| Weight (Approx.) | 450 kg | 650 kg | 850 kg |
Need a custom chamber size, temperature grade, or a specific test standard? Send us your DUT spec and test profile — our team will recommend a configuration and quote within 24 hours.
One chamber, three cold-end options. Match the grade to your test standard — not the other way around.

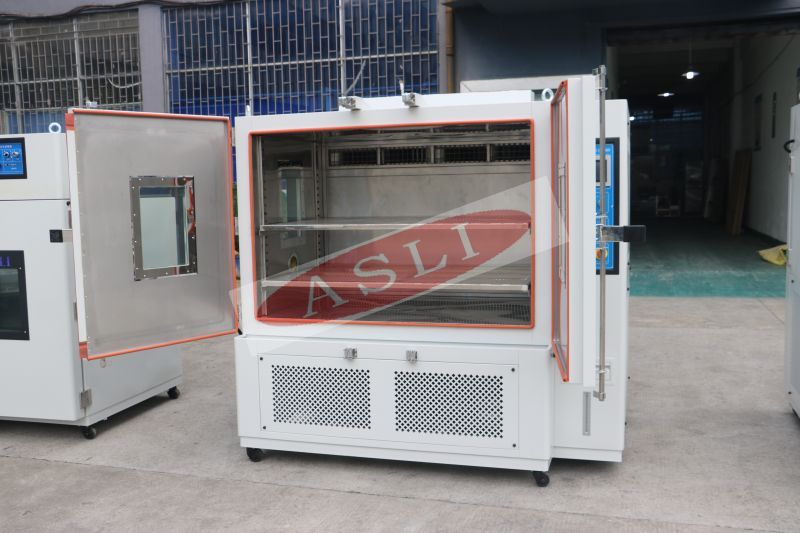

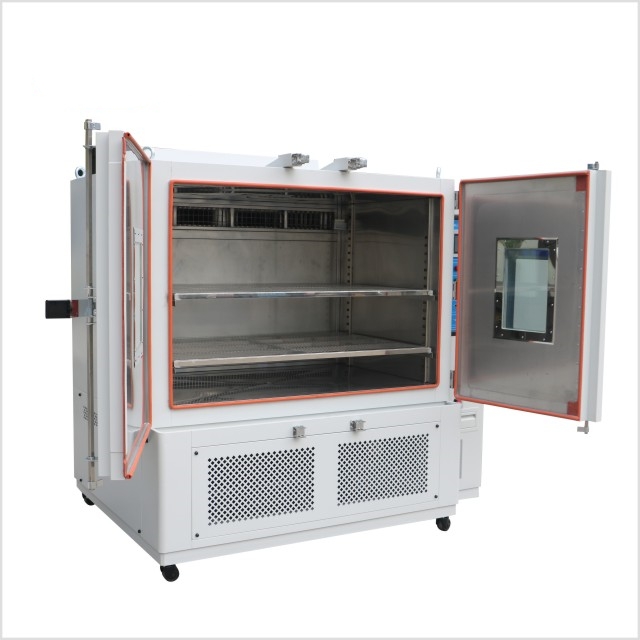

A single-chamber layout where the sample stays in place throughout the entire test. There is no basket, no moving parts, and no mechanical stress on the DUT.
Choose the low-temperature grade that matches your product specification or test standard. The high-temperature side is common to all three grades.
In practice: Fewer subsystems than a humidity chamber — simpler to operate and maintain. If you don't need humidity, you don't pay for it.
In practice: Choose from −40 °C, −55 °C, or −65 °C based on your test standard. High-temperature limit extends to 200 °C as an option.
In practice: PID + SSR control keeps the chamber stable over long-duration endurance tests — where drift matters most.
In practice: A standard chassis that fits a bench-to-floor lab. No basket transfer, no extra headroom, no complicated install.

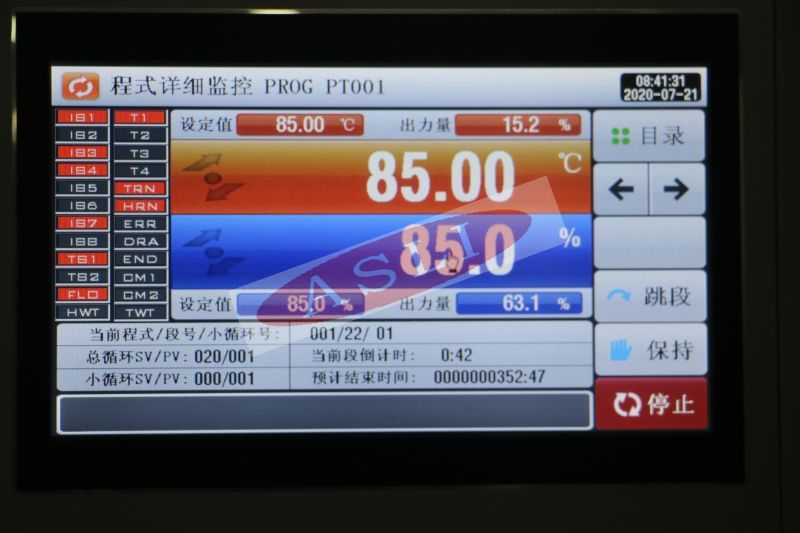

Control, cycling, and monitoring features included with every high-low temperature chamber.
Designed to meet the following high / low temperature and thermal cycling standards.
Actual temperature profiles recorded from the TS Series during a real endurance test cycle.
Charts show the temperature profile during a typical high-low temperature endurance cycle.
Independent protection layers — protecting your sample, your operator, and the system.
Wherever a product has to survive years of heat or cold, this chamber is the right tool.
