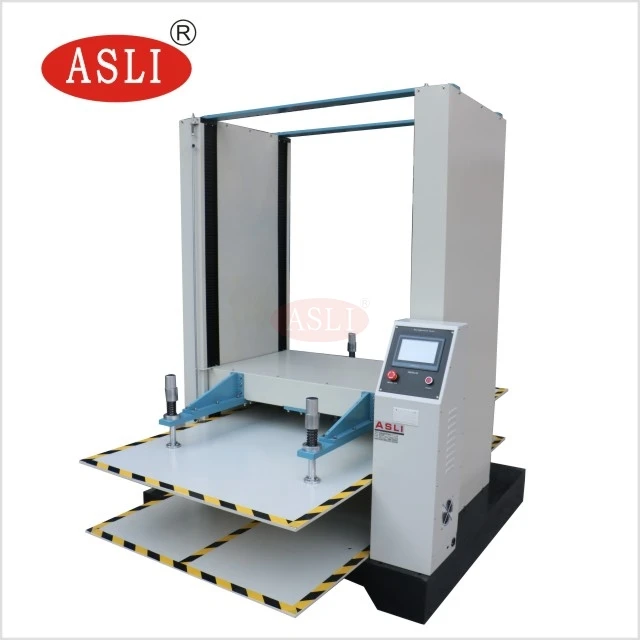

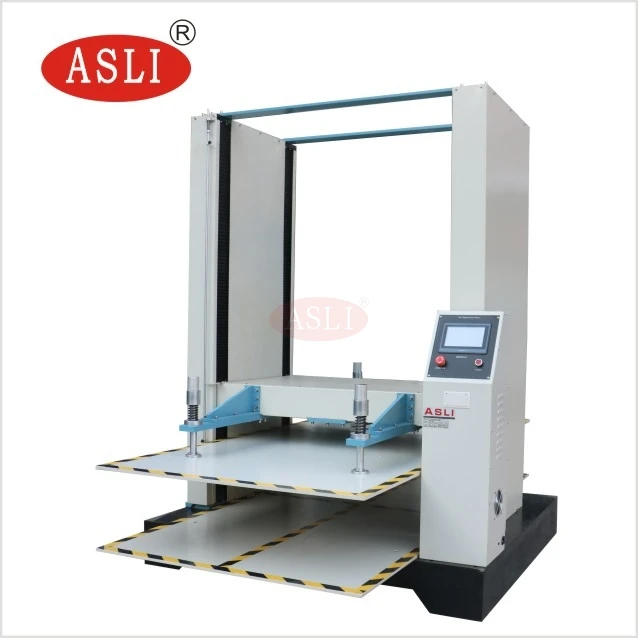

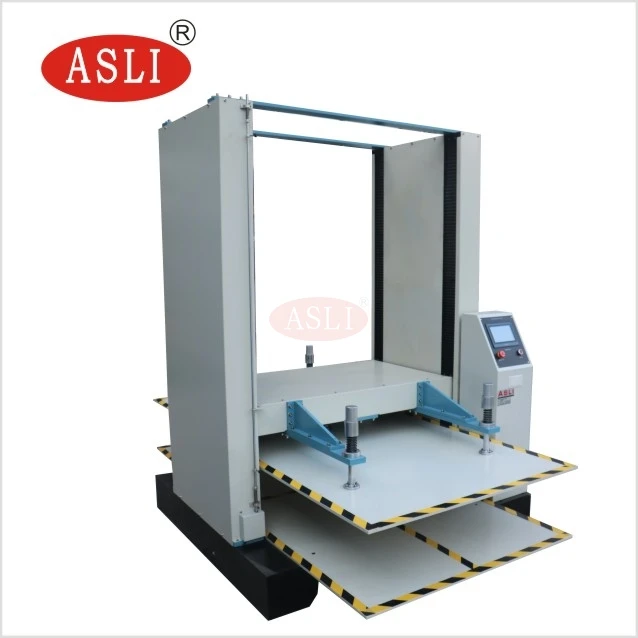

Engineered to evaluate the compression resistance and stacking endurance of corrugated boxes and packaging containers. The AS-PCC-2000 features a robust dual-unit design, high-precision force sensors, and customizable test speeds, helping manufacturers optimize packaging design and prevent transit collapse.
The AS-PCC-2000 Box Compression Tester is an essential quality control instrument designed to measure the ultimate load strength and stacking behavior of packaging materials. By subjecting paper boxes, corrugated cartons, and containers to controlled compressive loads, this machine helps engineers assess structural integrity, verify safety margins, and ensure compliance with international packaging standards during storage and transportation.
| Model | AS-PCC-Capacity |
| Capacity(Kg) | 2000, 5000 Optional |
| Unit | Kgf or N, arbitrary switching |
| Analytic Accuracy | 1/10000 |
| Accuracy | ±1％ |
| Test Space(mm) | 1200X1200X1000 or assigned |
| Compress Speed Rate | Step-less variable speed (Usually:10±3mm/min) |
|
Dimension W×H×D (mm) |
Host: 1500×2100×1220 |
| Control cabinet: 1150×1350×640 | |
| Weight(Kg) | Host: 1043 |
| Control cabinet:240 | |
| Power | AC380V 3∮ 5 lines |
