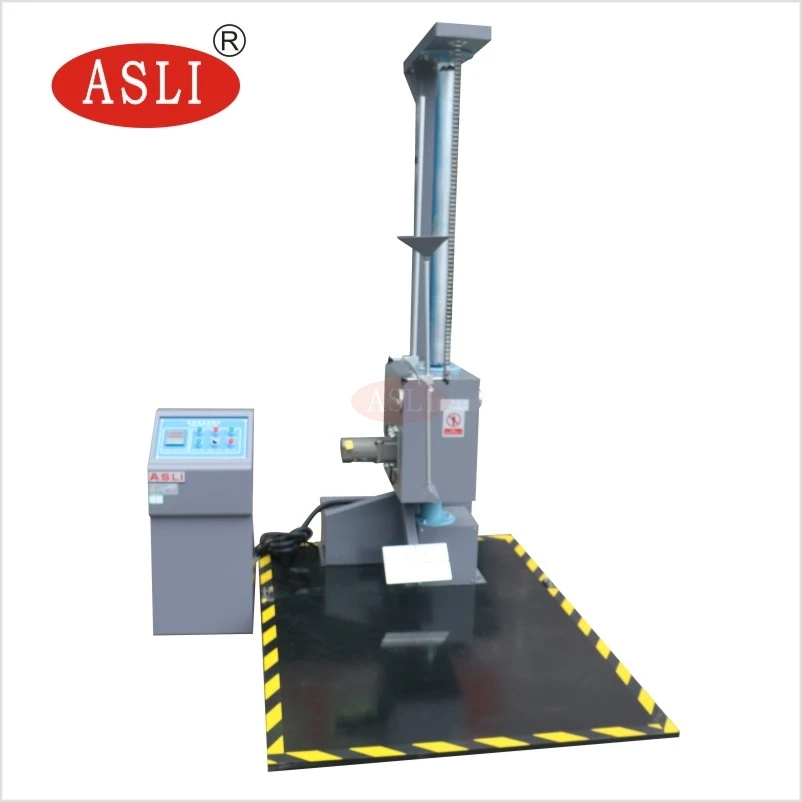

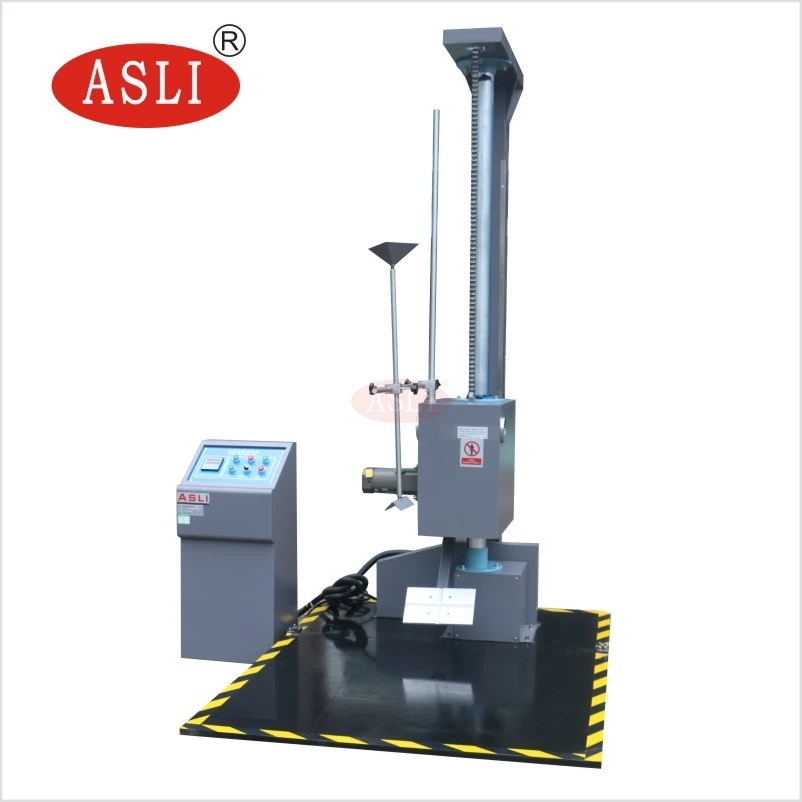

The AS-DT-150 Drop Tester provides highly accurate, repeatable shock and impact testing for packaged products and electronic components. Designed with a high-precision spindle and a pneumatic swing-arm system, it enables controlled drop testing across faces, edges, and corners for loads up to 100 kg.
The AS-DT-150 Single-Arm Drop Resistance Testing Machine is built to simulate real-world transport and handling shocks for packages, finished goods, and electronic assemblies. Featuring a precision-ground shaft lever and an advanced pneumatic swing-arm control system, the machine delivers exceptional stability, minimal operational noise, and reliable test accuracy that complies with international standards.
|
Name
|
Drop Tester
|
||
|
Model
|
AS-DT-120
|
AS-DT-150
|
AS-DT-200
|
|
Max. Weight of Test Samples (Kg)
|
≥200
|
100
|
100
|
|
Height of Drop (mm)
|
0~1200
|
300~1500
|
300~2000
|
|
Max. Dimension of Test Sample WxHxD (mm)
|
1200x1200x1200
|
1000x800x1000
|
1000x800x1000
|
|
Falling Floor Size WxHxD (mm)
|
1400x50x2000
|
1700x50x1200
|
1700x50x1200
|
|
Drop Method
|
Face, edge, angle
|
||
|
Test Bench External Dimension WxHxD (mm)
|
1400x2000x1800
|
1700x2700x1200
|
1700x2700x1200
|
