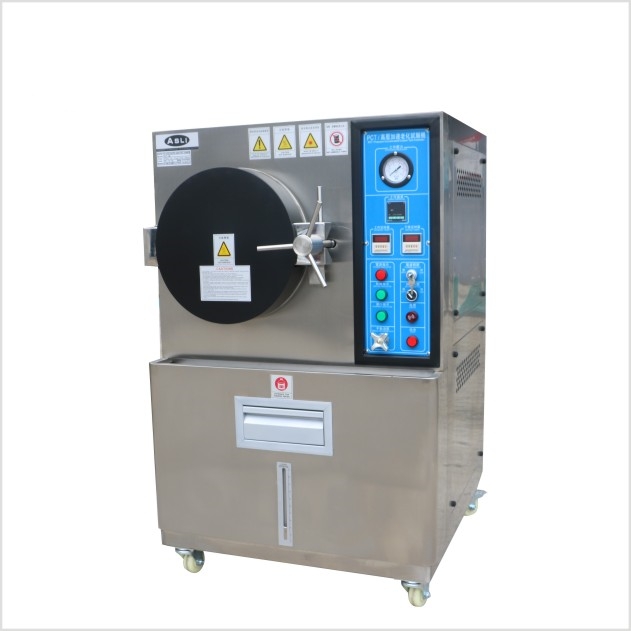

PCT HAST Pressure Aging Test Chamber

PCT Pressure Cooker Highly Accelerated Aging Test

A PCT (Pressure Cooker Test) chamber is a device used to test the resistance of materials, such as coatings or finishes, to water or steam under pressure. The chamber creates a high-pressure, high-temperature environment that simulates the conditions that materials may encounter in real-world applications, such as in the automotive or aerospace industries.

Inquire Now
Description

PCT Pressure Cooker Highly Accelerated Aging Test

A PCT (Pressure Cooker Test) chamber is a device used to test the resistance of materials, such as coatings or finishes, to water or st

eam under pressure. The chamber creates a high-pressure, high-temperature environment that simulates the conditions that materials may encounter in real-world applications, such as in the automotive or aerospace industries.


During testing, samples of the material being evaluated are placed in the chamber, which is then pressurized and heated to a predetermined temperature. The samples are exposed to the water or steam for a specified amount of time, and their performance is then evaluated based on a range of factors, such as color change, blistering, or adhesion failure.


PCT chambers are commonly used to test the corrosion resistance of coatings on metal substrates, as well as the performance of sealants and adhesives. They are also used in the development and testing of electronic components, as exposure to moisture can cause failure in electronic devices.


PCT Pressure Cooker Highly Accelerated Aging Test

Product Parameters

Model

PCT - 25

PCT - 35

PCT - 45

PCT - 55

PCT - 65

Interior Dimension

Φ×D (mm)

300×250

350×450

450×550

550×650

650×750

Exterior Dimension

 Φ×D (mm)

750×1200×800

800×1250×800

900×1380×900

1050×1550×1100

1200×1700×1250

Temperature Range

 of Steam

 (Operating temperature)

(Temperature Range of Saturated Steam:100°C~135°C) ,

Temperature Range: 120°C,100Kpa;133°C  200 Kpa;(143°C is optional)

Relative Pressure/

Absolute Pressure

Relative pressure: display values  indicated on the  pressure gauge

Absolute pressure: pressure gauge value adds 100 Kpa (The actual value in the inner box)

Comparison Table

 of Temperature,

Humidity,Pressure

of Steam

JESD22-A101 Pct Pressure Accelerate Environmental Aging Test Chamber for IC Package

Humidity of Saturated

Steam

100%R.H .saturation steam humidity for PCT chamber,

70~100%R.H. steam humidity adjustable for HAST chamber

Steam Pressure (Absolute Pressure)

101.3Kpa +0.0Kg/cm² ~ 2.0Kg/cm²; (3.0Kg/cm² is optional)

Recursive Device

 Steam natural convection circulation

Safety Protective

Devise

Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function )

Accessories

  Two layers stainless steel plate

Equipment

Capacity(L)

17

43

87

155

250

Power

 AC 220V 50/60HZ ;



Detailed Photos

JESD22-A101 Pct Pressure Accelerate Environmental Aging Test Chamber for IC Package

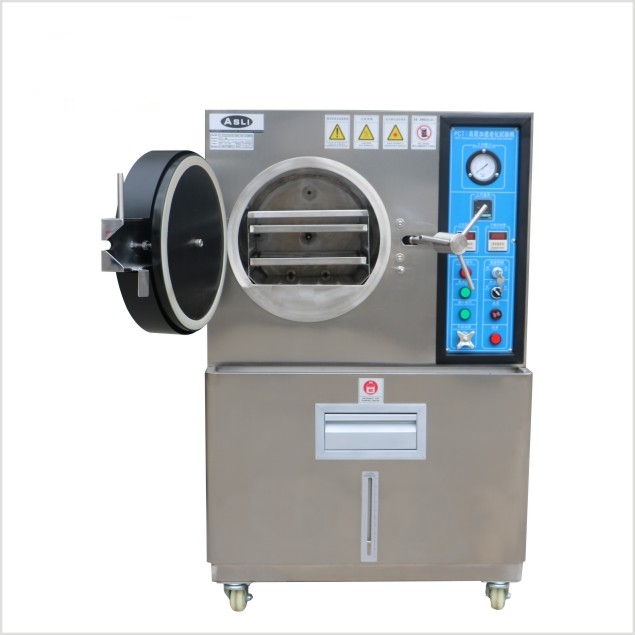

Sample Shelves

JESD22-A101 Pct Pressure Accelerate Environmental Aging Test Chamber for IC Package

Electricity terminal

JESD22-A101 Pct Pressure Accelerate Environmental Aging Test Chamber for IC Packageimage.png


JESD22-A101 Pct Pressure Accelerate Environmental Aging Test Chamber for IC Package
If you need more information about PCT Pressure Cooker Highly Accelerated Aging Test  Chamber, please feel free to contact me.
