The JESD22-A110 - Highly-Accelerated Temperature and Humidity Stress Test is performed for the purpose of evaluating the reliability of non-hermetic packaged solid-state devices in humid environments. Product Description

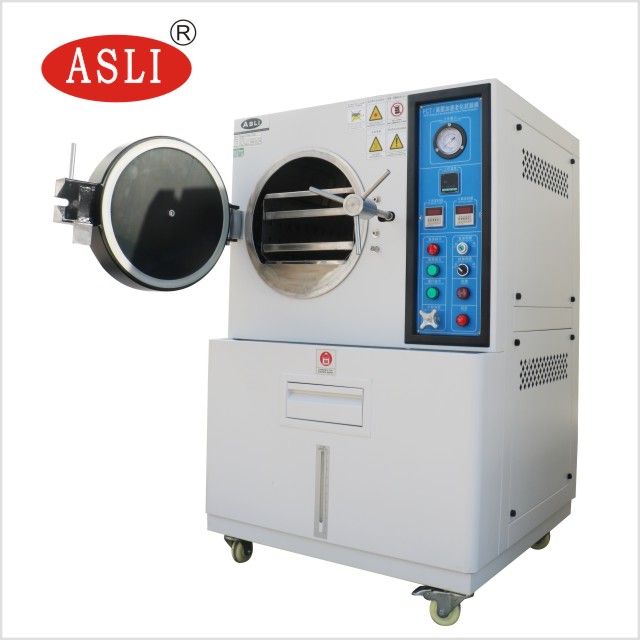

Our PCT Pressure Accelerate Environmental Aging Test Chamber can full meet JESD22-A101,JESD22-A102-E, JESD22-A102-C standards
Pressure Aging Testing Equipment is widely applied for the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.
Product Parameters
Model | PCT - 25 | PCT - 35 | PCT - 45 | PCT - 55 | PCT - 65 |
Interior Dimension Φ×D (mm) | 300×250 | 350×450 | 450×550 | 550×650 | 650×750 |
Exterior Dimension Φ×D (mm) | 750×1200×800 | 800×1250×800 | 900×1380×900 | 1050×1550×1100 | 1200×1700×1250 |
Temperature Range of Steam (Operating temperature) | (Temperature Range of Saturated Steam:100°C~135°C) , Temperature Range: 120°C,100Kpa;133°C 200 Kpa;(143°C is optional) |
Relative Pressure/ Absolute Pressure | Relative pressure: display values indicated on the pressure gauge Absolute pressure: pressure gauge value adds 100 Kpa (The actual value in the inner box) |
Comparison Table of Temperature, Humidity,Pressure of Steam |
|
Humidity of Saturated Steam | 100%R.H .saturation steam humidity for PCT chamber, 70~100%R.H. steam humidity adjustable for HAST chamber |
Steam Pressure (Absolute Pressure) | 101.3Kpa +0.0Kg/cm² ~ 2.0Kg/cm²; (3.0Kg/cm² is optional) |
Recursive Device | Steam natural convection circulation |
Safety Protective Devise | Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) |
Accessories | Two layers stainless steel plate |
Equipment Capacity(L) | 17 | 43 | 87 | 155 | 250 |
Power | AC 220V 50/60HZ ; |

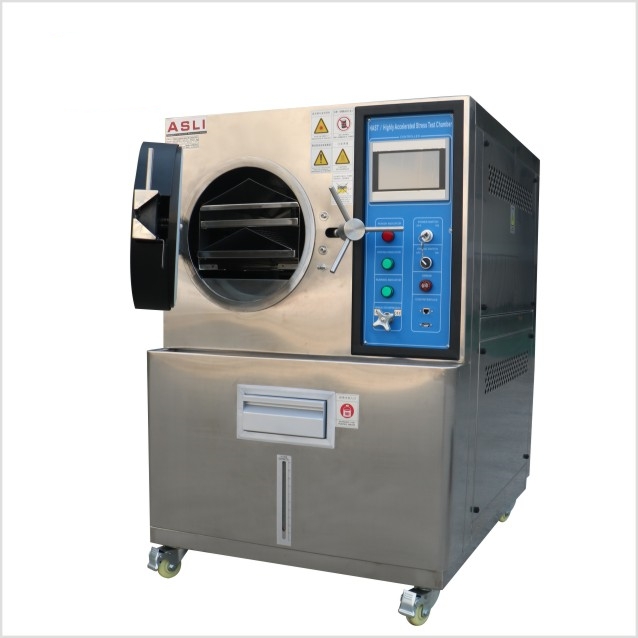

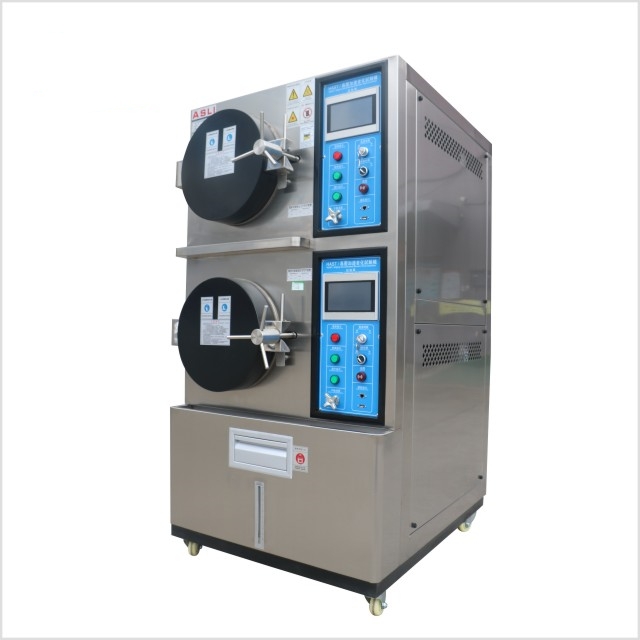

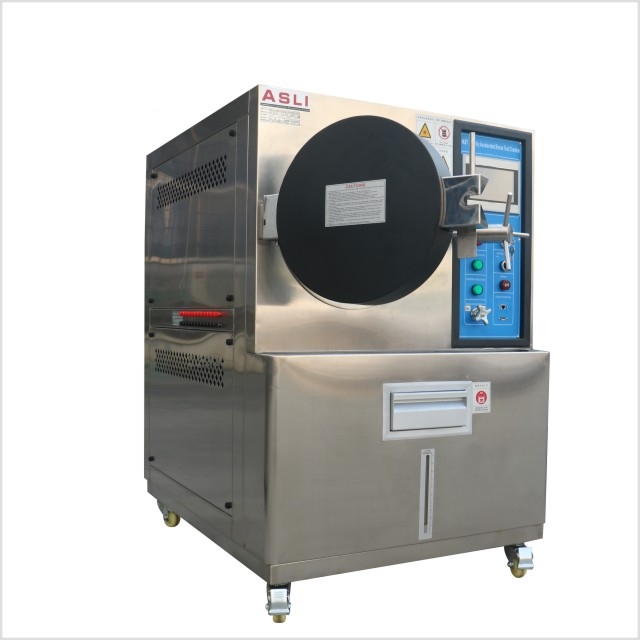

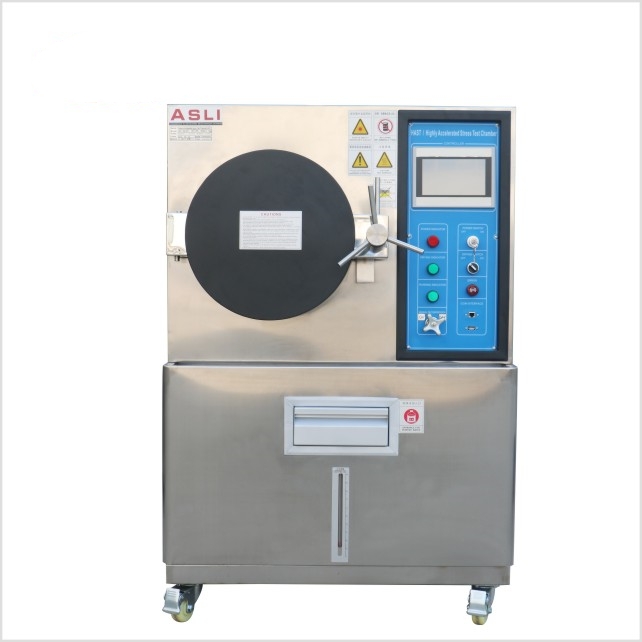

Detailed Photos

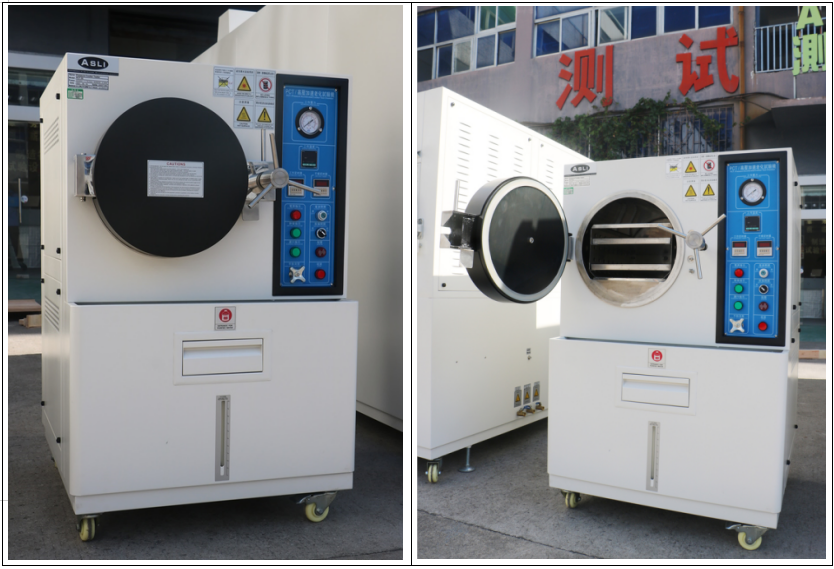

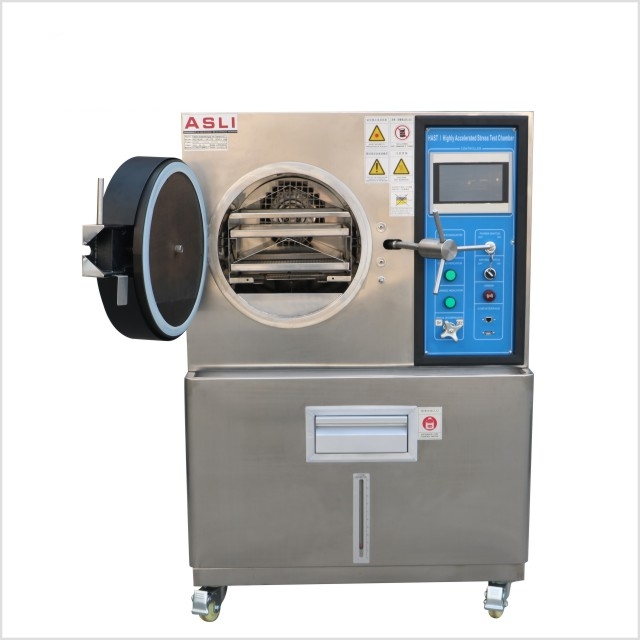

Sample Shelves
Electricity terminal

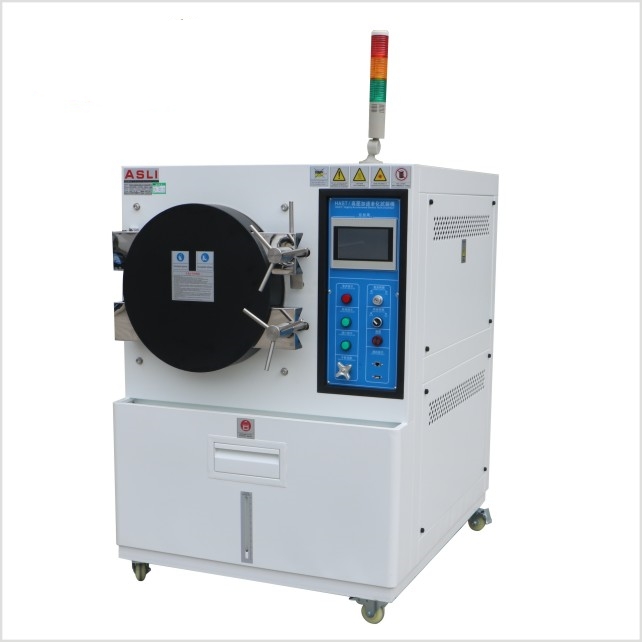

PCT Pressure Aging Test Chamber for IC Package features:
1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2. Automatic operation to test process finished, easy to use.
3. Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5. Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6. Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7. A integrated silic gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution
safety device:1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box's pressure higher than the machine's undertake value, it will self-relieve.
3. Double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald.
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard

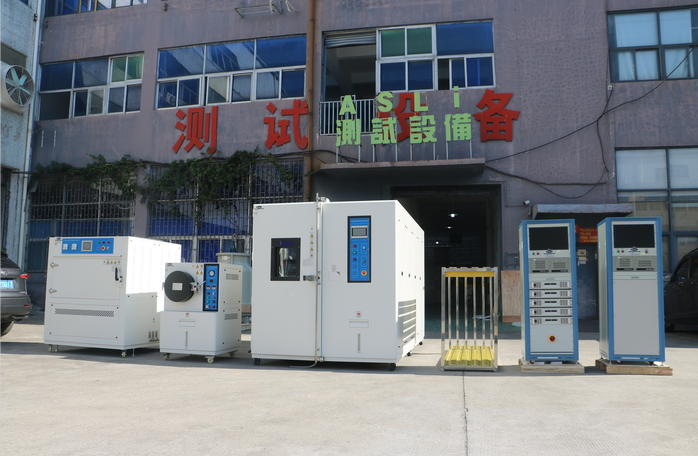

Company Profile
We are a long history testing equipment manufacturer, in the past 26 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.PCT pressure acclerate aging test chamber is our star products, and we had obtained the CE certification for this machine.
If you need more information about JESD22-A101 PCT Pressure Accelerate Environmental Aging Test Chamber, please feel free to contact me.
