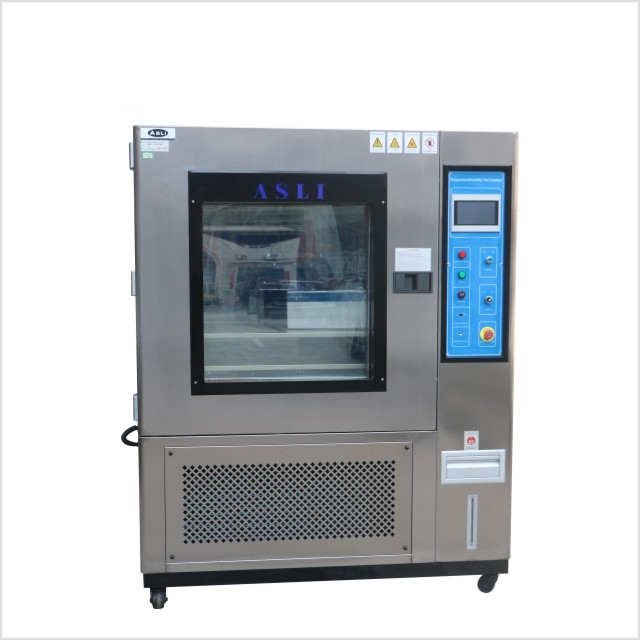

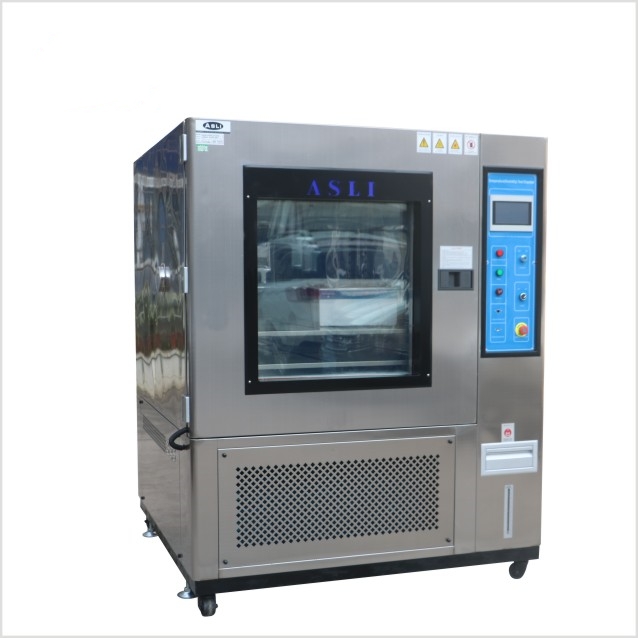

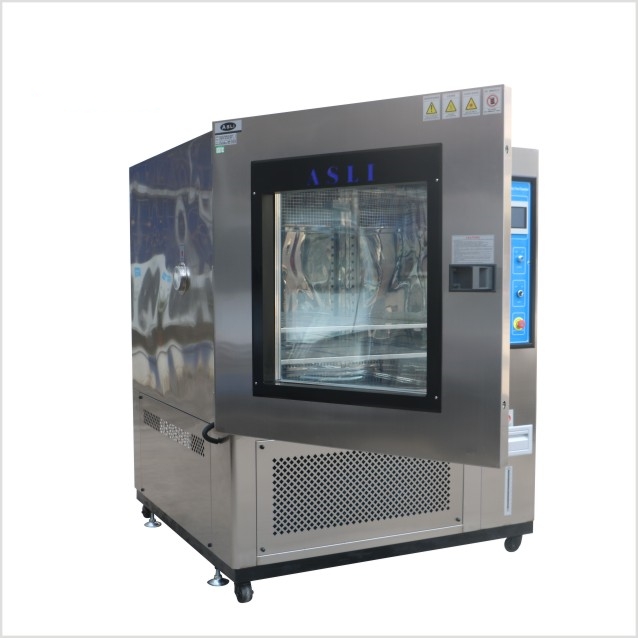

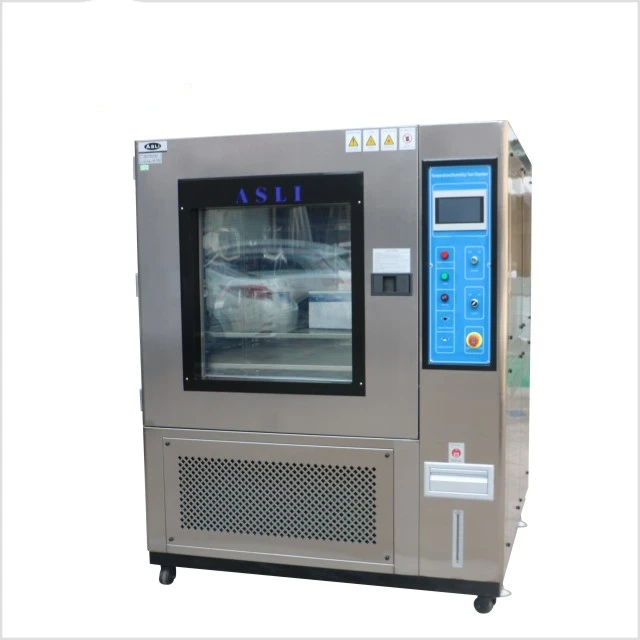

Full Size/Observing Window Climatic Test Chamber

Full Size/Observing Window Climatic Test Chamber

Programmable Constant Climatic Test Cabinet is applicable for testing the performance indexes of aeronautic & astronautic products, ships, weapons, academies, motorcycle, information electronics, instruments & meters, materials, electronic engineering products Climatic application testing.

This Unique Chamber the larger viewing window allows you to view a state of the subject under test at any time without opening the laboratory door.

ASLI as a original factory, achieve all way to meet with clien't various testing needs.

Feel free to get in contact with our Professional Sales Team to proposal for you right away

Inquire Now

Description

Full Size/Observing Window Climatic Test Chamber

Standard and custom
Temperature control and display unit
Humidity control and display unit
Programmable color LCD touch screen controller
Multi-language interface
USB and Ethernet
Casters, shelf, and cable port are standard
Build-in water tank
Adjustable and removable sample shelves
Safety protection system
Some Standard models availabel in stock
Compliance with CE mark

Temperature and Humidity Test Chamber, Material Testing, Environmental Chamber, Climatic Test Chamber, Deals, Environmental Test Chamber, Temperature and Humidity Test Chamber

Model	TH-80	TH-150	TH-225	TH-408	TH-800	TH-1000
Internal Dimension	400x500x400	500x600x500	600x750x500	600x850x800	1000x1000x800	1000x1000x1000
WxHxD (mm)
External Dimension	950x1650x950	1050x1750x1050	1200x1900x1150	1200x1950x1350	1600x2000x1450	1600x2100x1450
WxHxD (mm)
Temperature Range	T min: Low Temperature (A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃)
	Tmax: High Temperature (150℃, 180℃, 200℃)
Humidity Range	Optional: ( 20%~98%R.H /10%-98% R.H. / 5%-98% R.H )

Full Size/Observing Window Climatic Test Chamber
