Programmable constant climatic Test Cabinet are applicable for testing the performance indexes of aeronautic & astronautic products, ships, weapon, accdemies, motorcycle, information electronics, instruments & meters, materials, electronic engineering products Climatic application testing. ASLI offer many pre-engineered and custom sizes to fit your exact testing requirements. Available models include a wide range of temperature ramp rates, humidity levels, and many standard and optional features including temperature cycling, steady-state testing, and fast change rate. Additional options include access ports, Explosion Resistant, Quiet Mode, additional shelves, Battery Safety options, Dry Air Purge, Demineralizer Water Filter System and more.

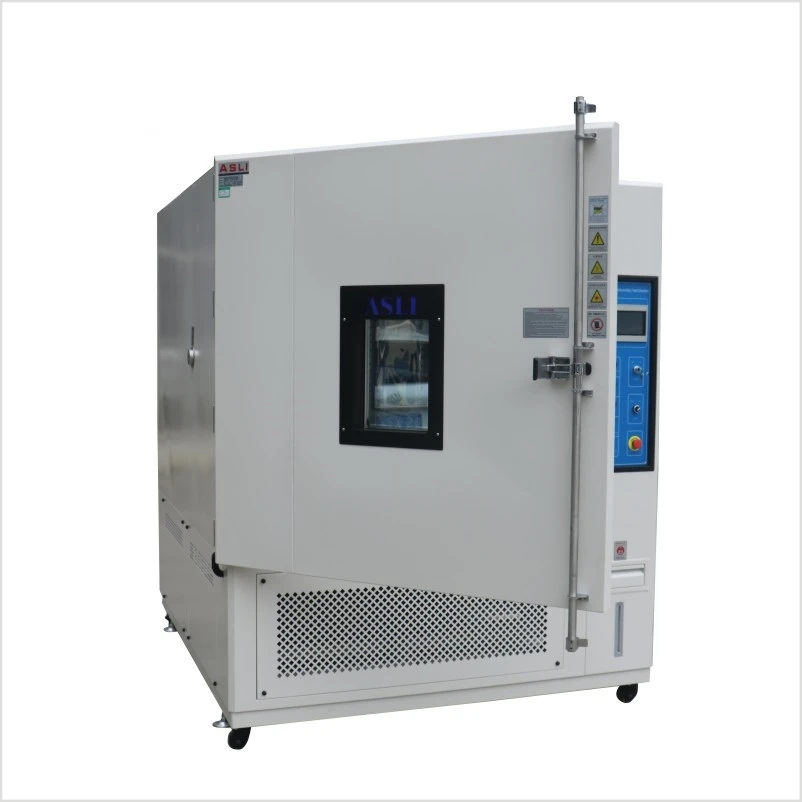

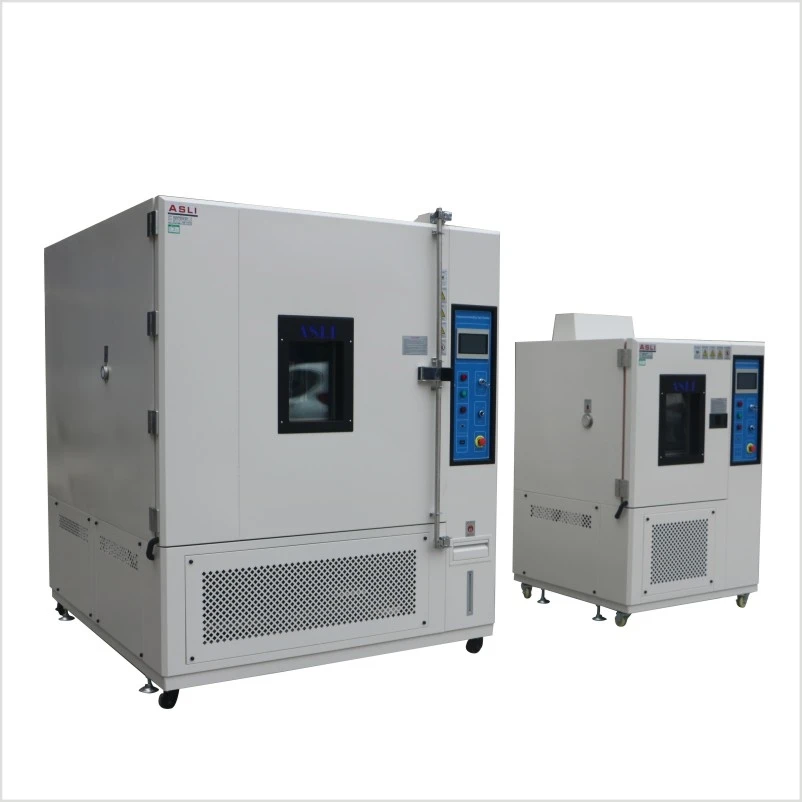

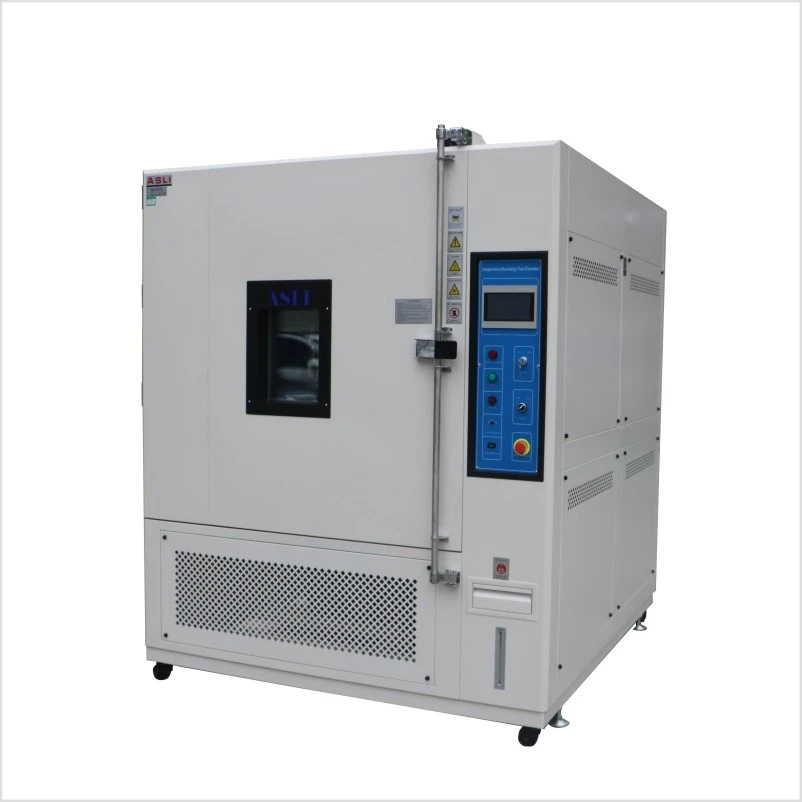

Programmable Constant Climatic Test Cabinet
| Model | TH-80 | TH-150 | TH-225 | TH-408 | TH-800 | TH-1000 |
| Internal Dimension | 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 |
| WxHxD (mm) | ||||||
| External Dimension | 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1550x2150x1450 | 1550x2150x1650 |
| WxHxD (mm) | ||||||
| Temperature Range | Min: Low Temperature (A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) | |||||
| Max: High Temperature (150℃, 180℃, 200℃) | ||||||
| Humidity Range | Optional: ( 20%~98%R.H /10%-98% R.H. / 5%-98% R.H ) | |||||
| Analytic Accuracy/ | 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H. | |||||
| Distribution uniformity | ||||||
| of temperature | ||||||
| and humidity | ||||||
| Control Accuracy | ±0.5℃; ±2.5% R.H. | |||||
| of Temperature and | ||||||
| Humidity | ||||||
| Temperature Rising/ | The temperature is rising approximately. 0.1~3.0℃/min | |||||
| Falling Speed Rate | The temperature is falling approximately. 0.1~1.5℃/min; | |||||
| Customizable | ( The Falling Speed Rate Min 1.5℃per minute is a special optional condition) | |||||
| Material | The material of the inner box is SUS 304# stainless steel, and the outer box is stainless steel or |
|||||
| SEE cold-rolled steel with paint coated. Insulation material is resistant to high temperatures, | ||||||
| high-density, formate chlorine, ethyl acetate foam insulation materials | ||||||
| Cooling System | Wind cooling or water cooling/single segment compressor(-40℃, double segment | |||||
| compressor -70℃) | ||||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage | |||||
| coolant protection switch, over-humidity and over-temperature protection switch, fuses, | ||||||
| fault warning system, water shortage storage warning protection | ||||||
| Optional Accessorie | Inner door with an operation hole, Recorder, Water Purifier, Dehumidifier | |||||
| Compressor | French Tecumseh Brand, Germany Bizer Brand | |||||
| Power | AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ | |||||
| Approx. Weight (Kg) | 200 | 250 | 330 | 420 | 580 | 680 |
