Constant Temperature & Humidity Test Chamber are applicable for testing the performance indexes of aeronautic & astronautic products, ships, weapon, accdemies, motorcycle, information electronics, instruments & meters, materials, electronic engineering products Climatic application testing. ASLI offer many pre-engineered and custom sizes to fit your exact testing requirements. Available models include a wide range of temperature ramp rates, humidity levels, and many standard and optional features including temperature cycling, steady-state testing, and fast change rate. Additional options include access ports, Explosion Resistant, Quiet Mode, additional shelves, Battery Safety options, Dry Air Purge, Demineralizer Water Filter System and more.

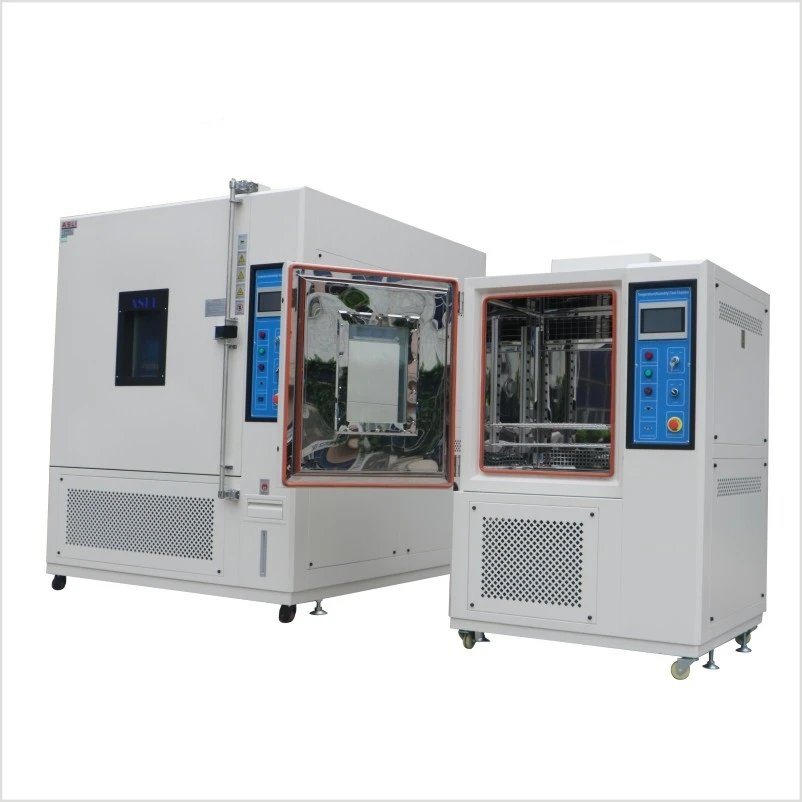

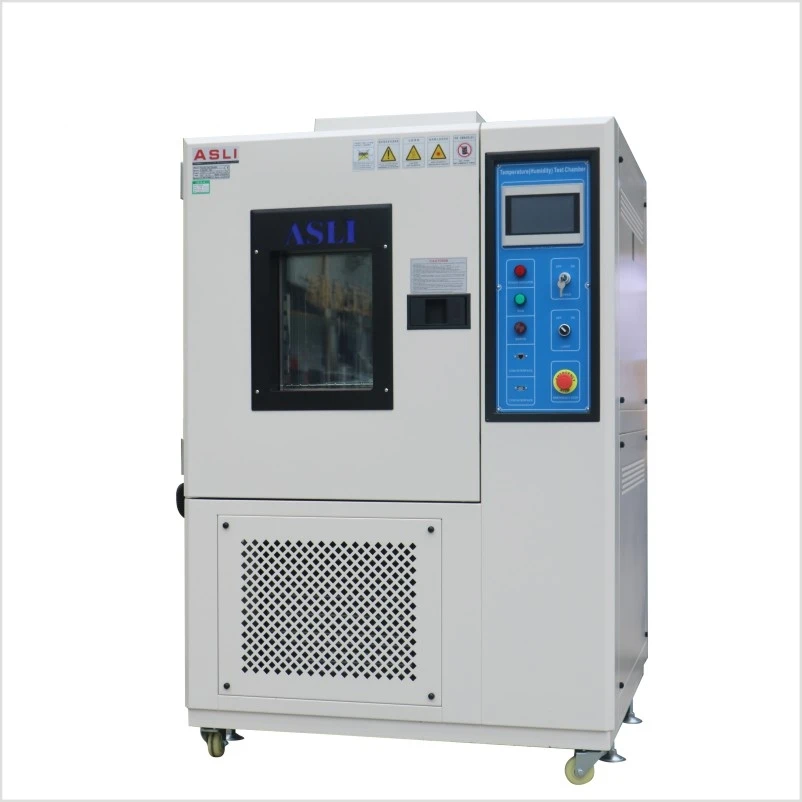

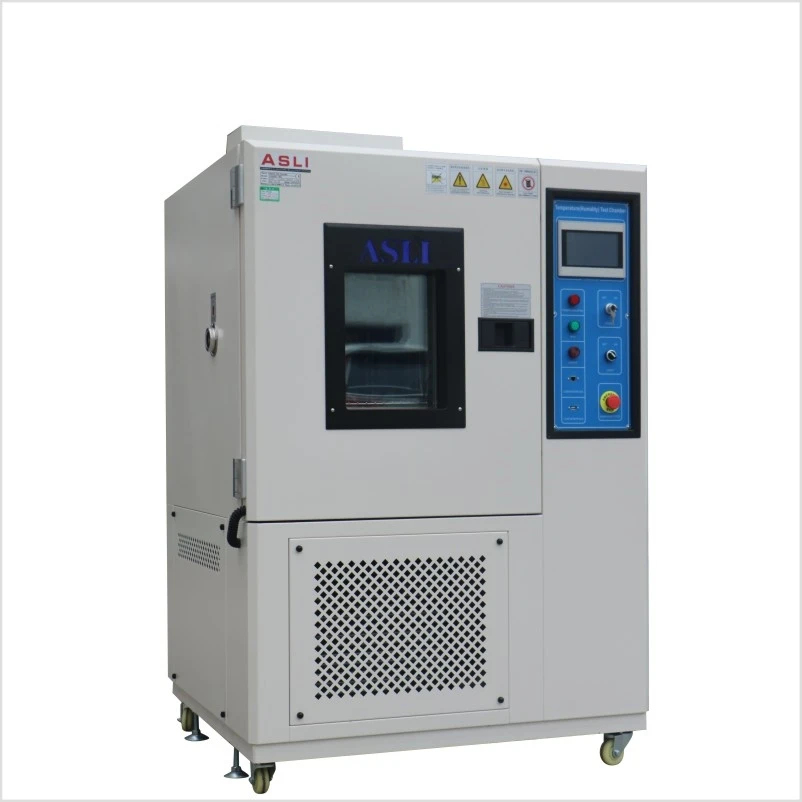

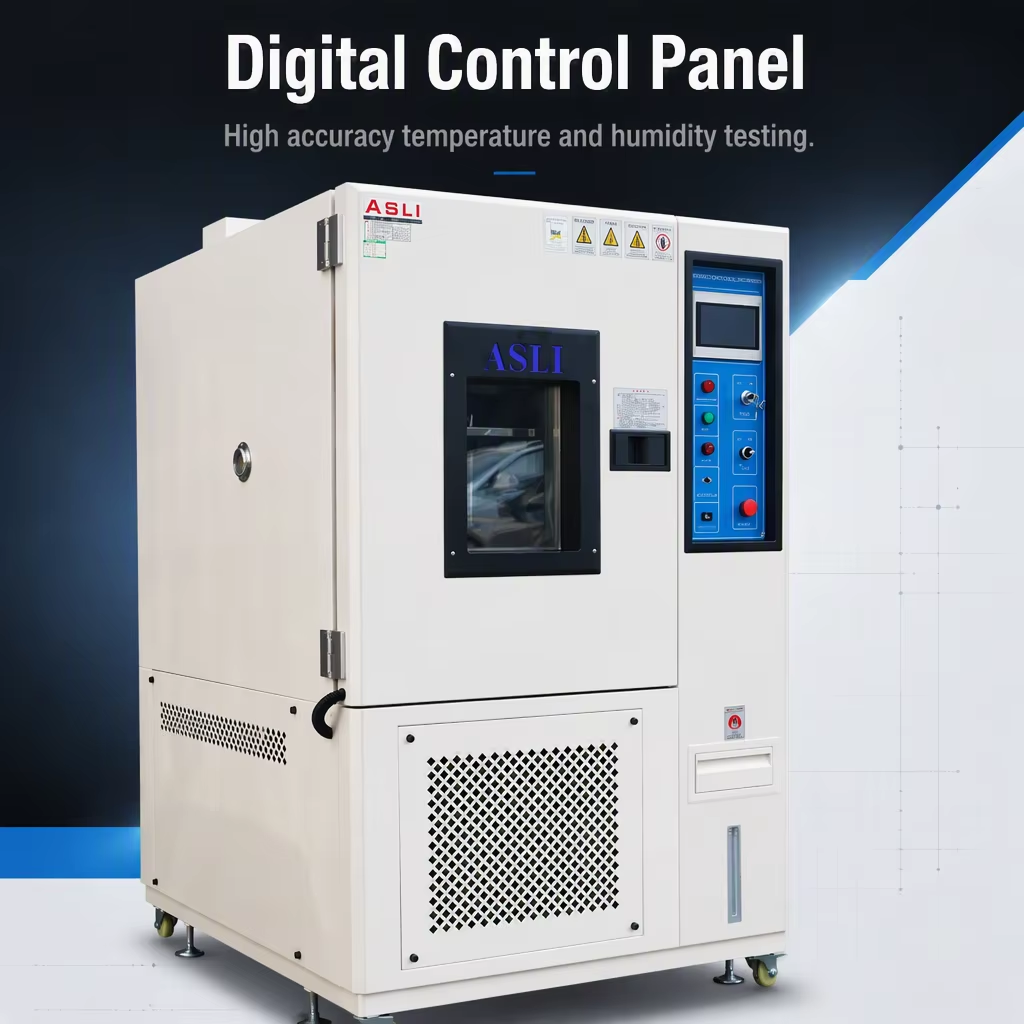

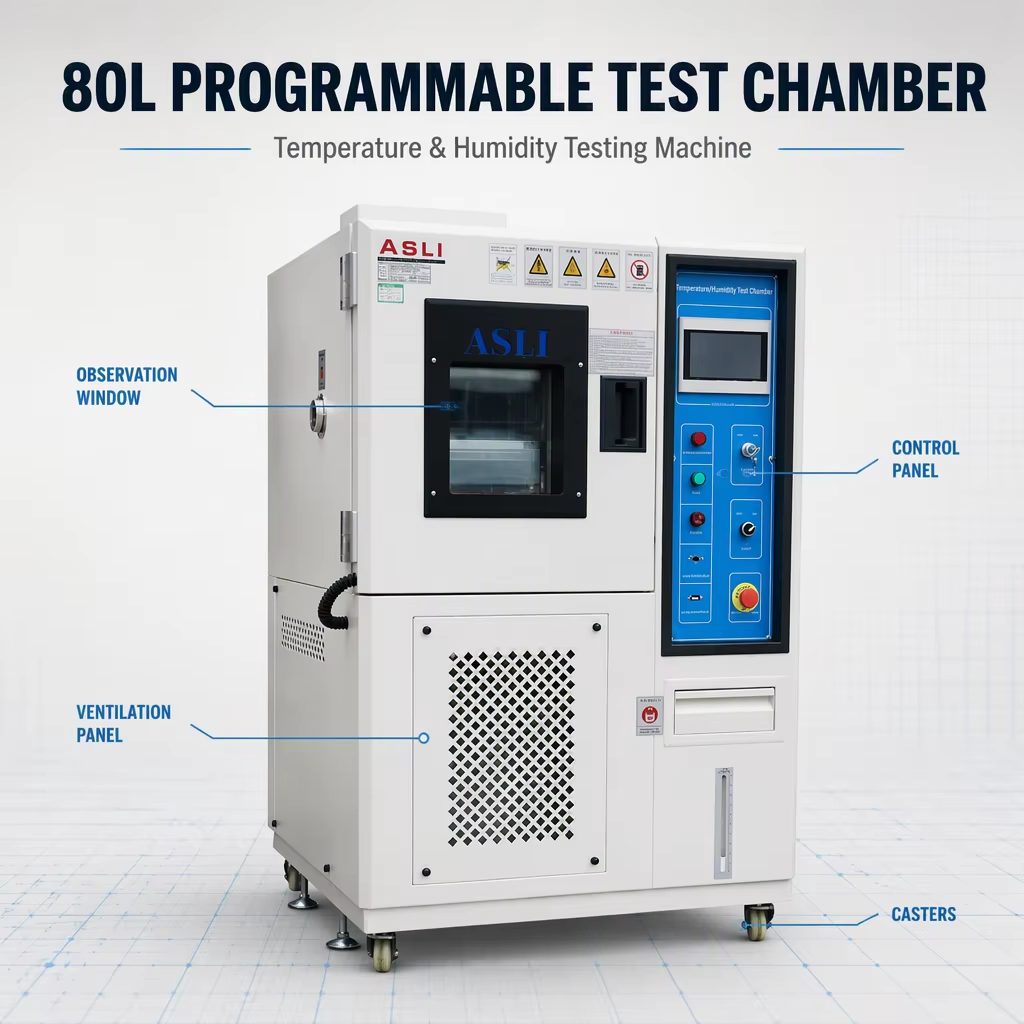

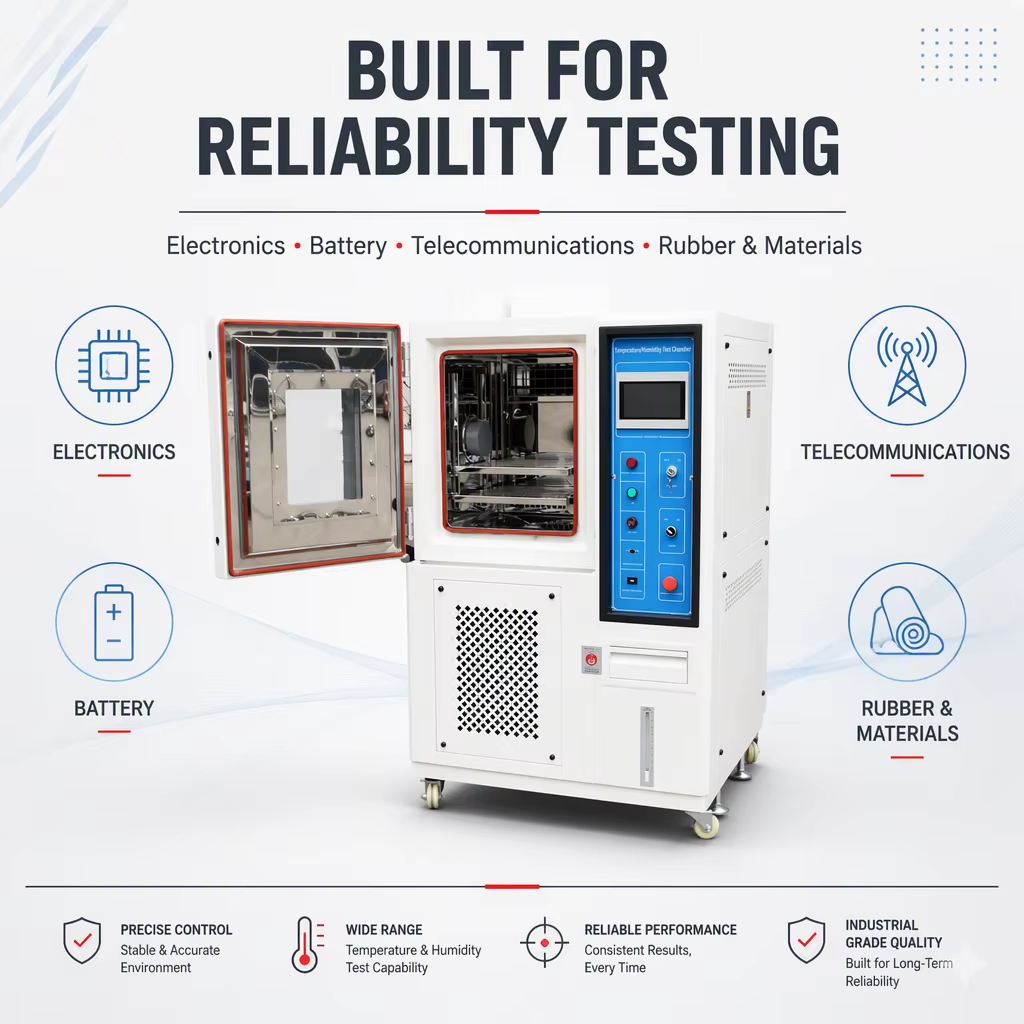

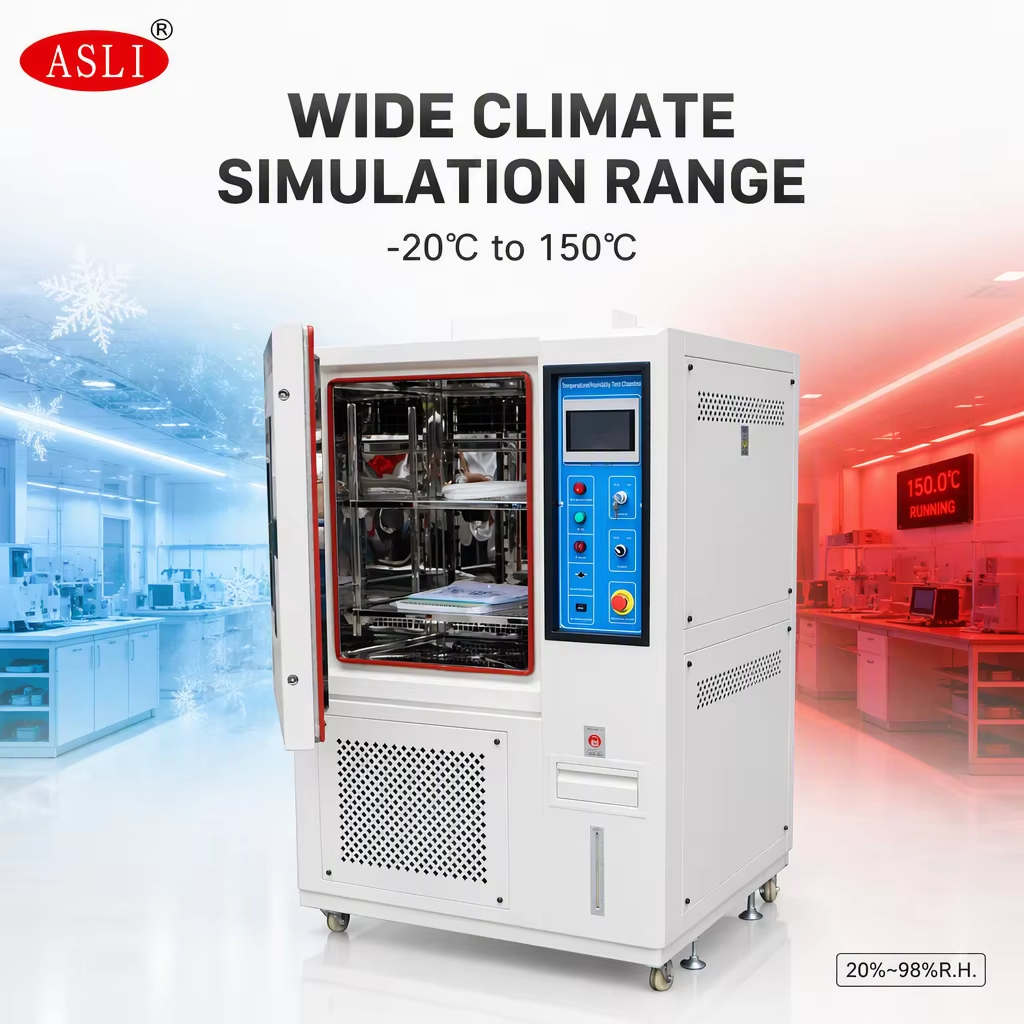

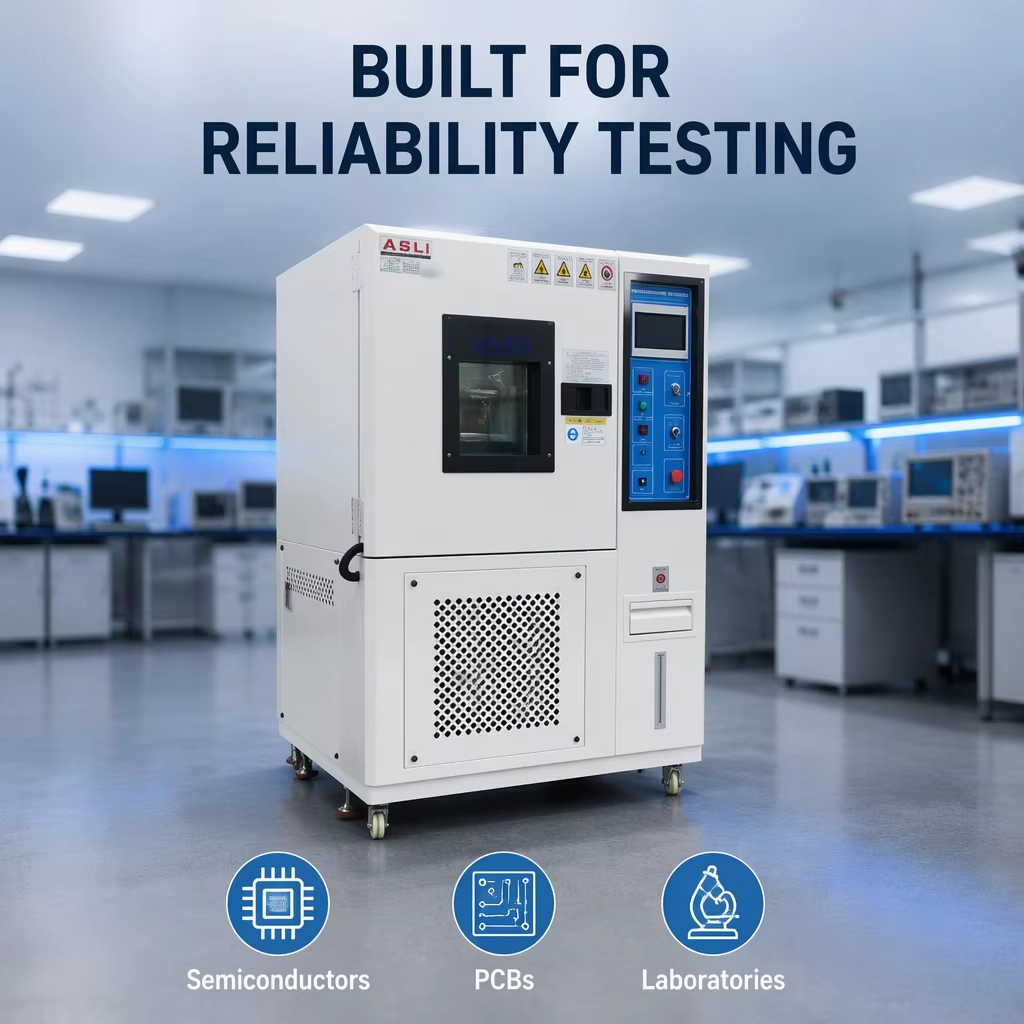

Constant Temperature & Humidity Test Chamber
| Model | TH-80 | TH-150 | TH-225 | TH-408 | TH-800 | TH-1000 |
| Internal Dimension | 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 |
| WxHxD (mm) | ||||||
| External Dimension | 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450 |
| WxHxD (mm) | ||||||
| Temperature Range | T min: Low Temperature (A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) | |||||
| Tmax: High Temperature (150℃, 180℃, 200℃) | ||||||
| Humidity Range | Optional: ( 20%~98%R.H /10%-98% R.H. / 5%-98% R.H ) | |||||
| Analytic Accuracy/ | 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H. | |||||
| Distribution uniformity | ||||||
| of temperature | ||||||
| and humidity | ||||||
| Control Accuracy | ±0.5℃; ±2.5% R.H. | |||||
| of Temperature and | ||||||
| Humidity | ||||||
| Temperature Rising/ | Temperature rising approx. 0.1~3.0℃/min | |||||
| Falling Speed Rate | temperature falling approx. 0.1~1.5℃/min; | |||||
| ( The Falling Speed Rate Min.1.5℃per minute is a special optional condition) | ||||||
| Material | The material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or |
|||||
| SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperatures, | ||||||
| high density, formate chlorine, ethyl acetum foam insulation materials | ||||||
| Cooling System | Wind cooling or water cooling/single segment compressor(-40℃, double segment | |||||
| compressor -70℃) | ||||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage | |||||
| coolant protection switch, over-humidity, and over-temperature protection switch, fuses, | ||||||
| fault warning system, water short storage warning protection | ||||||
| Optional Accessories | Inner door with operation hole, Recorder, Water Purifier, Dehumidifier | |||||
| Compressor | French Tecumseh Brand,Germany Bizer Brand | |||||
| Power | AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ | |||||
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 |
