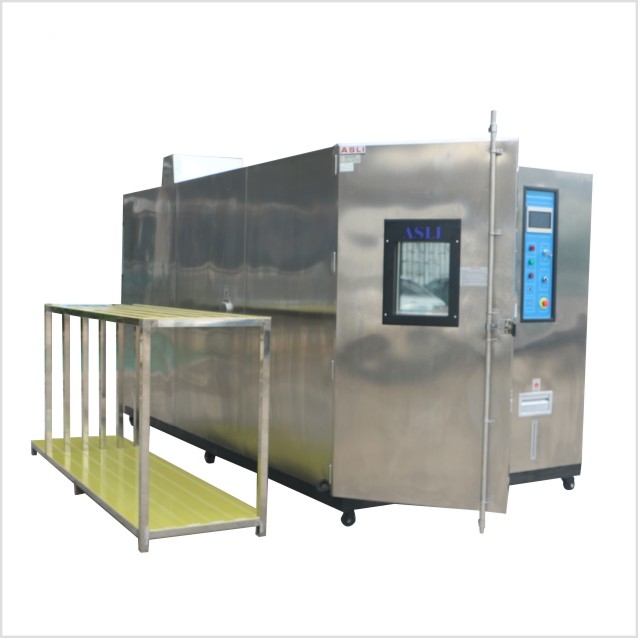

Damp Heat Test Chamber for Solar Panels assists in developing cost-effective and reliable PV modules and solar panels for the energy industry.

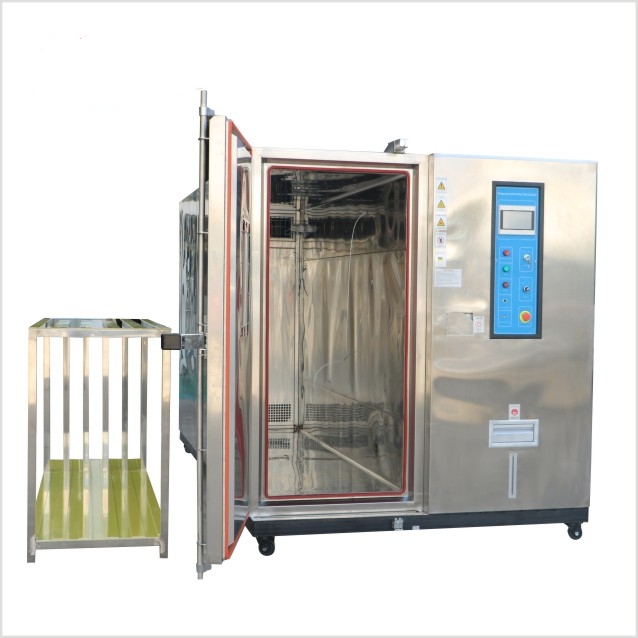

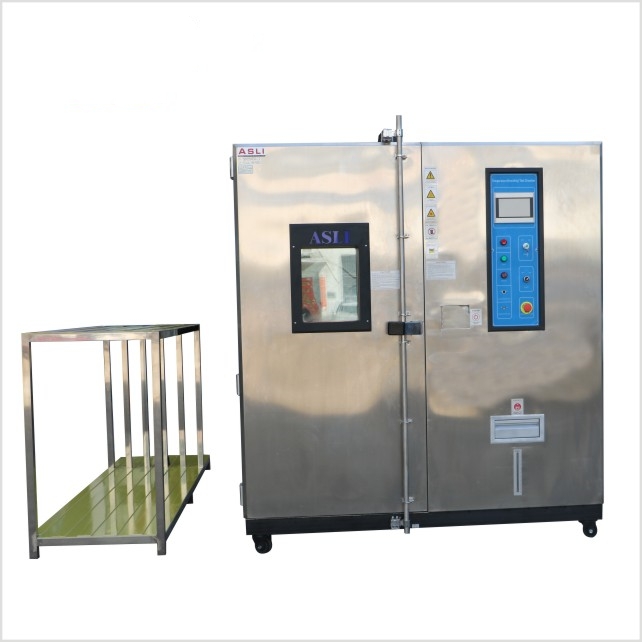

The Solar Panel Damp Heat Test Chamber can customize the size of the sample rack according to the PV panel size and can perform 85℃ 85 RH tests.
PV Test:Suits various size PV modules;
Test Temperature: 85℃±2℃;
Relative Humidity: 85%±5%;
Test Duration:1000h;
Panel Capacity:4 / 6 / 8 / 10 / 12 Pieces;
Standard:IEC61215,IEC61646,IEC62688, UL1703,
Free calibration
IEC 61215 UL damp heat thermal cycling test chamber / climatic test chambers. Designed for PV module reliability testing, supporting Thermal Cycle Test, Humidity-Freeze Test, and Damp Heat Test as per IEC 61215, IEC 61646, UL1703, IEC 62108, IEEE1513, IEC 61730, GB9535, GB18911 and related standards. The chamber provides precise temperature and humidity control for long-term 1000h damp heat testing, 10-cycle humidity-freeze testing, and thermal cycling with fast ramp rates.
Compare standard TH-series models. For custom sizes, temperature ranges, and humidity options, contact our engineers.
| Model | TH-80 | TH-150 | TH-225 | TH-408 | TH-800 | TH-1000 |
|---|---|---|---|---|---|---|
| Internal Dimension WxHxD (mm) |
400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 |
| External Dimension WxHxD (mm) |
950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450 |
| Temperature Range | T min: Low Temperature (A: 25℃ B: 0℃ C: -20℃ D: -40℃ E: -60℃ F: -70℃) T max: High Temperature (150℃, 180℃, 200℃) |
|||||
| Humidity Range | Optional: (20%~98% R.H. / 10%~98% R.H. / 5%~98% R.H.) | |||||
| Analytic Accuracy / Distribution Uniformity of Temperature and Humidity |
0.1℃; 0.1% R.H. / ±2.0℃; ±3.0% R.H. | |||||
| Control Accuracy of Temperature and Humidity |
±0.5℃; ±2.5% R.H. | |||||
| Temperature Rising / Falling Speed Rate |
Temperature rising approx. 0.1~3.0℃/min Temperature falling approx. 0.1~1.5℃/min; (The Falling Speed Rate Min. 1.5℃ per minute is a special optional condition) |
|||||
| Material | The material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated. Insulation material is resistant to high temperatures, high density, formate chlorine, ethyl acetum foam insulation materials | |||||
| Cooling System | Wind cooling or water cooling / single segment compressor (-40℃), double segment compressor (-70℃) | |||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity, and over-temperature protection switch, fuses, fault warning system, water short storage warning protection | |||||
| Optional Accessories | Inner door with operation hole, Recorder, Water Purifier, Dehumidifier | |||||
| Compressor | French Tecumseh Brand, Germany Bizer Brand | |||||
| Power | AC 220V 1ph 3 lines, 50/60 Hz | AC 380V 3ph 5 lines, 50/60 Hz | |||||
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 |
The designed usage time for solar cell modules is about 20~30 years. Reliability testing simulates the earth's surface photovoltaic modules (crystalline silicon and amorphous silicon thin film, concentrating) design verification, ensuring the module can operate long-term for more than 20 years in a general climate. The specification requires solar cell modules to undergo the following tests:
| Standard | High Temp. High Humidity | Low Temp | Temp. Change Rate | Cycle No. |
|---|---|---|---|---|
| IEC61215 | 85°C / 85±5% (20h) | -40°C (0.5~4h) | High Temp. Rise & Fall (100°C/h) Low Temp. Rise & Fall (200°C/h) |
10 |
| GB9535 | 85°C / 85±5% (20h) | -40°C (0.5~4h) | High Temp. Rise & Fall (100°C/h) Low Temp. Rise & Fall (200°C/h) |
10 |
| IEC61646 | 85°C / 85±5% (20h) | -40°C (0.5~4h) | High Temp. Rise & Fall (100°C/h) Low Temp. Rise & Fall (200°C/h) |
10 |
| GB18911 | 85°C / 85±5% (20h) | -40°C (0.5~4h) | High Temp. Rise & Fall (100°C/h) Low Temp. Rise & Fall (200°C/h) |
10 |
| UL1703 | 85°C / 85±2.5% (20h) | -40°C (0.5~4h) | High Temp. Rise & Fall (100°C/h) Low Temp. Rise & Fall (200°C/h) |
10 |
| IEC62108 | 85°C / 85±2.5% (20h) | -40°C (0.5~4h) | High Temp. Rise & Fall (100°C/h) Low Temp. Rise & Fall (200°C/h) |
20 / 40 |
This IEC 61215 damp heat thermal cycling test chamber is widely used in photovoltaic and related industries for reliability, stability, and environmental testing.
Damp heat, thermal cycling, and humidity-freeze testing for crystalline silicon and thin-film PV modules.
Design verification and reliability assessment of solar cells and modules for long-term outdoor performance.
Environmental aging tests for energy storage components and related new energy products.
Standard-compliant test conditions for IEC61215, IEC61646, UL1703, IEC62108, and other PV certification requirements.
Environmental stress screening for avionics, sensors, and aerospace components under extreme temperature and humidity conditions.
Reliability testing for ECU, motors, and automotive electronics under thermal cycling and damp heat exposure.
Stability and humidity testing for PCBs, ICs, connectors, and consumer electronics before mass production.
Standard-compliant test conditions for research projects, academic studies, and material research.
Final compliance depends on chamber configuration, test setup, and the latest version of each standard.
Supports Damp Heat (MQT 13), Thermal Cycling (MQT 11), and Humidity-Freeze (MQT 12) tests required by IEC 61215 and related standards.
PID control and 7" touch screen maintain ±0.5℃ and ±2.5% R.H. accuracy, ensuring repeatable test results for 1000h damp heat.
Temperature rising up to 3.0℃/min and falling up to 1.5℃/min, meeting the 200°C/h ramp rate requirements of humidity-freeze tests.
From -70°C to +200°C, covering extreme humidity-freeze profiles and thermal cycling conditions.
SUS 304# stainless steel interior resists corrosion from high humidity and repeated cycling.
Over-temperature, over-humidity, compressor overload, and water-shortage protection ensure safe long-term operation.
This IEC 61215 UL damp heat thermal cycling test chamber is designed for PV module reliability testing, supporting Thermal Cycle Test, Humidity-Freeze Test, and Damp Heat Test as per IEC 61215, IEC 61646, UL1703, IEC 62108, IEEE1513, IEC 61730, GB9535, and GB18911 standards. It provides precise temperature and humidity control for long-term 1000h damp heat testing at 85°C/85% R.H., 10-cycle humidity-freeze testing between -40°C and 85°C, and thermal cycling with fast ramp rates. The chamber is suitable for crystalline silicon and thin-film PV modules, concentrator modules, and related new energy products. ASLI is ISO 9001 certified and has served laboratories, universities, and distributors in 40+ countries since 1988.
It supports Thermal Cycle Test (TC), Humidity-Freeze Test (HF), and Damp Heat (DH) as required by IEC61215, IEC61646, UL1703, IEC62108, and related standards. It also meets the requirements of IEC 61215-2016 4.11/4.12/4.13, IEC61730-2016 MST51/MST52/MST53, and UL1703 clauses 35/36.
Damp Heat test is performed at 85 ± 2°C and 85% ± 5% R.H. for 1000 hours. The purpose is to determine the ability of the module to withstand the effects of long-term penetration of humidity.
Humidity-freeze test cycles between -40°C and 85°C with a maximum temperature ramp rate of 200°C/hour (3.33°C/min). Each cycle takes 24 hours, and the test is performed for 10 cycles (240 hours / 10 days). The purpose is to determine the ability of the module to withstand the effects of high temperature and humidity followed by sub-zero temperatures.
Yes. Low temperature options include 25℃, 0℃, -20℃, -40℃, -60℃, and -70℃. High temperature options include 150℃, 180℃, and 200℃. Humidity options include 20–98%, 10–98%, and 5–98% R.H. Custom chamber sizes, access ports, shelves, and control systems are available.
Standard models are typically shipped within 30 working days after deposit. Custom configurations may take longer depending on specific requirements. The exact schedule is confirmed before order based on the model and configuration.
We accept T/T (30% deposit before production, 70% balance before shipment), L/C for large transactions, and Western Union for small spare parts or sample orders. Trade terms including EXW, FOB, CIF, DAP, and DDP are supported.
Each chamber is wrapped in high-tensile protective film, cushioned with shockproof EPE pearl cotton, and packed in a wooden crate built to international shipping standards. Vacuum packaging and specialized transport are available on request. We support sea freight, air freight, express services, and specialized transport lines with full customs clearance support.
We provide a one-year parts replacement warranty covering accessories and machine issues during the warranty period. Lifelong after-sales service is included at no extra charge. Our global support team provides remote troubleshooting, spare parts, and optional on-site service.
Yes. Each unit comes with an English installation guide and operation manual, plus a tutorial video. Remote training is available via video call, and on-site installation and training can be arranged for specific regions. Ongoing technical support is provided after installation.
Yes. We support OEM/ODM branding, manuals, packaging, training, and technical support. MOQ and pricing depend on the model and customization. For OEM/ODM orders, MOQ is typically 1–3 units.
Our company is ISO 9001 certified, and many of our products carry CE certification. All equipment can be calibrated by ISO 17025-accredited laboratories. Calibration certificates and test reports are available on request.
Send us your test standard, module size, and required temperature and humidity range. Our engineers will recommend the right model or custom configuration.
