Our company's products are mainly used in cell and module ,EVA, aging test, solar power plants site test, solar power plant power generation improvement, etc.. Photovoltaic product aging test products meet international standards such as IEC61215, IEC61730, IEC61701, IEC62804, IEC61853, IEC62979, UL1703; We research and development multi pv product testing machine, like : PV module hail impact tester, PV module breakage tester, UV p-reconditioning tester, humidity-freeze. Thermal cycling testing machine, Salt -spray tester, wet leakage current tester, etc.

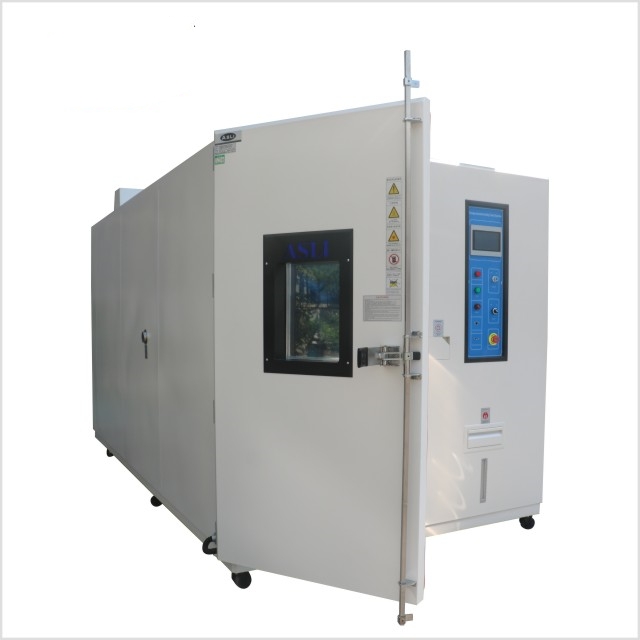

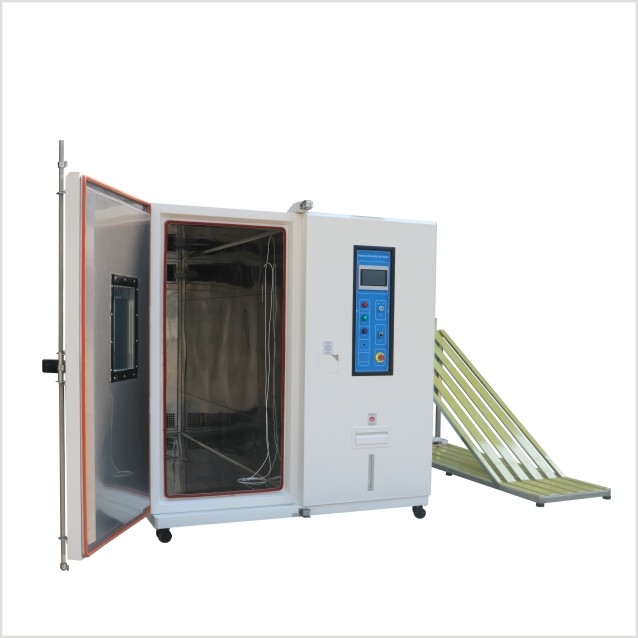

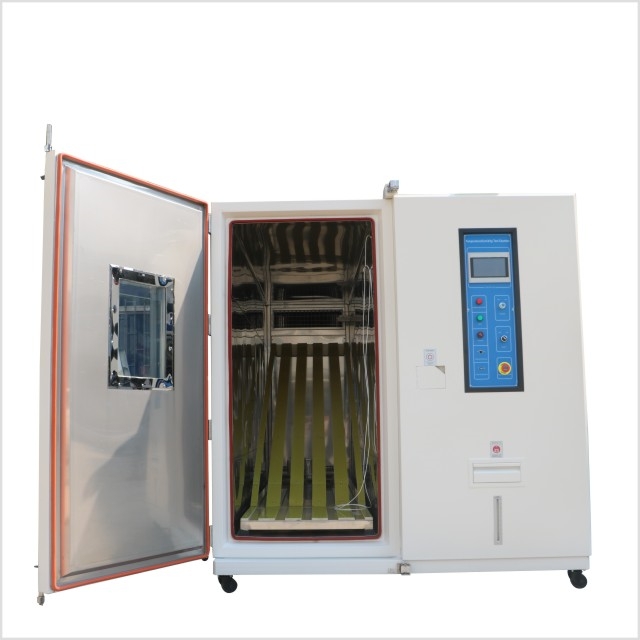

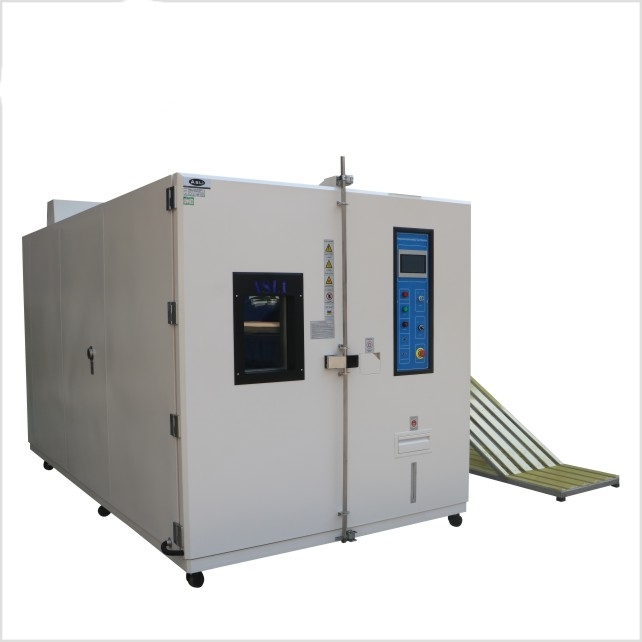

IEC61215/UL1703 PV modules climatic aging test / DH CL HF test chamber. The designed usage time for solar cell modules is about 20~30 years. Reliability testing simulates the earth's surface photovoltaic modules (crystalline silicon and amorphous silicon thin film, concentrating) design verification, ensuring the module can operate long-term for more than 20 years in a general climate. The specification requires solar cell modules to undergo thermal cycle test, humidity-freeze test, and damp heat test.
Compare standard TH-series models. For custom sizes, temperature ranges, and humidity options, contact our engineers.
| Model | TH-80 | TH-150 | TH-225 | TH-408 | TH-800 | TH-1000 |
|---|---|---|---|---|---|---|
| Internal Dimension WxHxD (mm) |
400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 |
| External Dimension WxHxD (mm) |
950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450 |
| Temperature Range | T min: Low Temperature (A: 25℃ B: 0℃ C: -20℃ D: -40℃ E: -60℃ F: -70℃) T max: High Temperature (150℃, 180℃, 200℃) |
|||||
| Humidity Range | Optional: (20%~98% R.H. / 10%~98% R.H. / 5%~98% R.H.) | |||||
| Analytic Accuracy / Distribution Uniformity of Temperature and Humidity |
0.1℃; 0.1% R.H. / ±2.0℃; ±3.0% R.H. | |||||
| Control Accuracy of Temperature and Humidity |
±0.5℃; ±2.5% R.H. | |||||
| Temperature Rising / Falling Speed Rate |
Temperature rising approx. 0.1~3.0℃/min Temperature falling approx. 0.1~1.5℃/min; (The Falling Speed Rate Min. 1.5℃ per minute is a special optional condition) |
|||||
| Material | The material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated. Insulation material is resistant to high temperatures, high density, formate chlorine, ethyl acetum foam insulation materials | |||||
| Cooling System | Wind cooling or water cooling / single segment compressor (-40℃), double segment compressor (-70℃) | |||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity, and over-temperature protection switch, fuses, fault warning system, water short storage warning protection | |||||
| Optional Accessories | Inner door with operation hole, Recorder, Water Purifier, Dehumidifier | |||||
| Compressor | French Tecumseh Brand, Germany Bizer Brand | |||||
| Power | AC 220V 1ph 3 lines, 50/60 Hz | AC 380V 3ph 5 lines, 50/60 Hz | |||||
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 |
The designed usage time for solar cell modules is about 20~30 years. Reliability testing is the simulation of the earth's surface photovoltaic modules (crystalline silicon and amorphous silicon thin film, concentrating) design verification. It ensures the module can operate long-term for more than 20 years in a general climate. The specification requires solar cell modules to undergo the following tests:
Meet the Damp Heat (DH) requirement specified in 4.13 clause of IEC 61215-2016 standard & MST53 clause of IEC61730-2016 standard. Meet the Thermal Cycling test (TC) requirements specified in the 4.11 clause of IEC 61215-2016 standard & MST51 clause of IEC61730-2016 standard & 35 clause in UL1703 standard. Meet the Humidity-freeze test (HF) requirements in the clause 4.12 of the IEC61215-2016 standard & MST52 clause of IEC61730-2016 & 36 clause in UL1703 standard.
Meet the criteria: IEC61215-MQT10, MQT11, MQT16, MQT20, MQT22; IEC61730-MST26, MST34, MST51, MST52; IEC62782.
The current continuity test system is specialized in the IEC61215 standard, the MQT11 high and low temperature cycle experiment clause, MQT12 wet and frozen experiment clause. The NETCOL5000-C provides stable DC, current recording, temperature recording, and temperature control functions. The NETCOL5000-C uses temperature control to start the DC power supply and monitors multi-channel current and multi-channel temperature in real time for a long time. Used together with a high and low temperature circulating box, it can monitor the internal circuit connectivity of multiple components, to judge the fatigue resistance of solar cell modules, the rationality of the laminating process, and the stability of welding quality under the alternating environment of high and low temperatures.
This climatic aging test chamber is widely used in photovoltaic and new energy industries for reliability, stability, and environmental testing.
Thermal cycle, humidity-freeze, and damp heat testing for crystalline silicon and amorphous silicon thin-film PV modules.
Design verification and reliability assessment of solar cells and modules for long-term outdoor performance.
Environmental aging tests for energy storage components and related new energy products.
Standard-compliant test conditions for IEC61215, IEC61646, UL1703, and other PV certification requirements.
Environmental stress screening for avionics, sensors, and aerospace components under extreme temperature and humidity conditions.
Reliability testing for ECU, motors, and automotive electronics under thermal cycling and damp heat exposure.
Stability and humidity testing for PCBs, ICs, connectors, and consumer electronics before mass production.
Standard-compliant test conditions for research projects, academic studies, and material research.
Final compliance depends on chamber configuration, test setup, and the latest version of each standard.
Supports Thermal Cycle (TC), Humidity-Freeze (HF), and Damp Heat (DH) tests required by IEC61215, IEC61646, and UL1703.
NETCOL5000-C provides stable DC, current recording, temperature recording, and temperature control for multi-channel monitoring.
PID control and a 7" touch screen help maintain ±0.5℃ and ±2.5% R.H. control accuracy, reducing invalid tests and retests.
Electronic expansion valve system and high-density insulation support lower power consumption and long-term operating cost.
SUS 304# stainless steel interior resists corrosion, simplifies cleaning, and extends service life.
Over-temperature, over-humidity, compressor overload, and water-shortage protection help protect operators and samples.
This PV modules climatic aging test chamber is designed for IEC61215, IEC61646, UL1703, and IEC62108 standards, supporting Thermal Cycle (TC), Humidity-Freeze (HF), and Damp Heat (DH) tests. It is suitable for crystalline silicon and amorphous silicon thin-film PV modules, concentrator photovoltaic modules, and related new energy products. The chamber helps manufacturers, testing labs, and research institutes verify module reliability over 20~30 years of outdoor use. With integrated current monitoring system (NETCOL5000-C), it monitors multi-channel current and temperature in real time, judging fatigue resistance, laminating process rationality, and welding quality stability. ASLI is ISO 9001 certified and has served laboratories, universities, and distributors in 40+ countries since 1988.
It supports Thermal Cycle test (TC), Humidity-Freeze test (HF), and Damp Heat (DH) as required by IEC61215, IEC61646, UL1703, and related standards. It also meets the requirements of IEC 61215-2016 4.11/4.12/4.13, IEC61730-2016 MST51/MST52/MST53, and UL1703 clauses 35/36.
The NETCOL5000-C provides stable DC, current recording, temperature recording, and temperature control. It monitors multi-channel current and multi-channel temperature in real time. Used with the high and low temperature circulating box, it monitors internal circuit connectivity of multiple components, helping judge fatigue resistance, laminating process rationality, and welding quality stability.
Reference standards include IEC61215, GB9535, IEC61646, GB18911, UL1703, IEC62108. It also complies with GB/T 2423.1, GB/T 2423.2, GJB 150.3, GJB 150.4, IEC68-2-1, IEC68-2-2, GB 11158, GB10586-1, and others.
Yes. Low temperature options include 25℃, 0℃, -20℃, -40℃, -60℃, and -70℃. High temperature options include 150℃, 180℃, and 200℃. Humidity options include 20–98%, 10–98%, and 5–98% R.H. Custom chamber sizes, access ports, shelves, and control systems are available.
Standard models are typically shipped within 30 working days after deposit. Custom configurations may take longer depending on specific requirements. The exact schedule is confirmed before order based on the model and configuration.
We accept T/T (30% deposit before production, 70% balance before shipment), L/C for large transactions, and Western Union for small spare parts or sample orders. Trade terms including EXW, FOB, CIF, DAP, and DDP are supported.
PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case. Vacuum packaging and specialized transport are available on request. We support sea freight, air freight, express services, and specialized transport lines with full customs clearance support.
Feedback within 2 hours, offer a solution in 48 hours, and help to solve the problems. We provide a one-year parts replacement warranty covering accessories and machine issues during the warranty period. Lifelong after-sales service is included at no extra charge.
Yes. Each unit comes with an English installation guide and operation manual, plus a tutorial video. Remote training is available via video call, and on-site installation and training can be arranged for specific regions. Ongoing technical support is provided after installation.
Yes. We support OEM/ODM branding, manuals, packaging, training, and technical support. MOQ and pricing depend on the model and customization. For OEM/ODM orders, MOQ is typically 1–3 units.
Our company is ISO 9001 certified, and many of our products carry CE certification. All equipment can be calibrated by ISO 17025-accredited laboratories. Calibration certificates and test reports are available on request.
Send us your test standard, module size, and required temperature and humidity range. Our engineers will recommend the right model or custom configuration.
