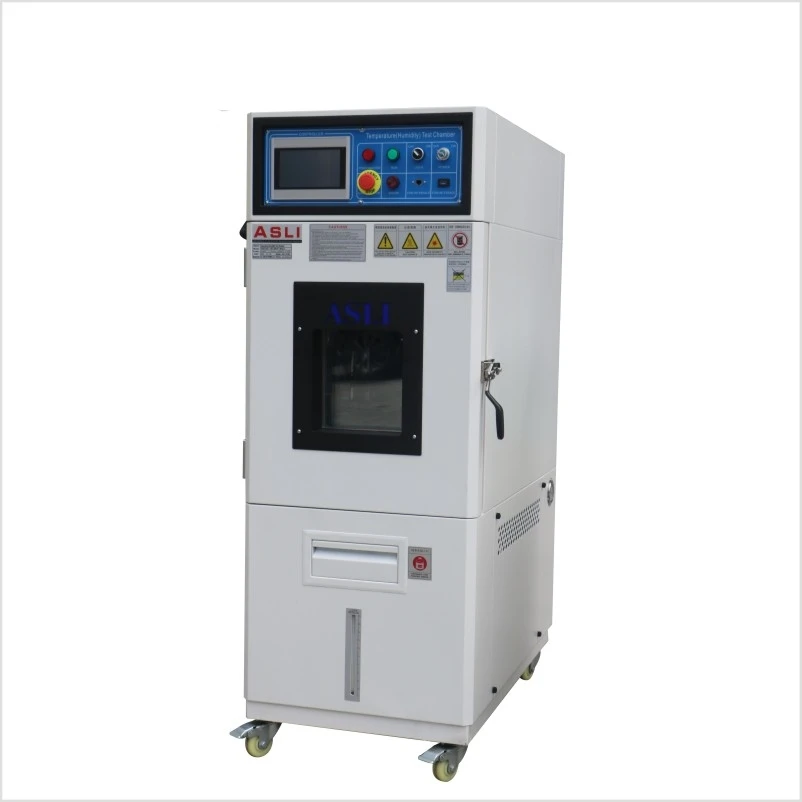

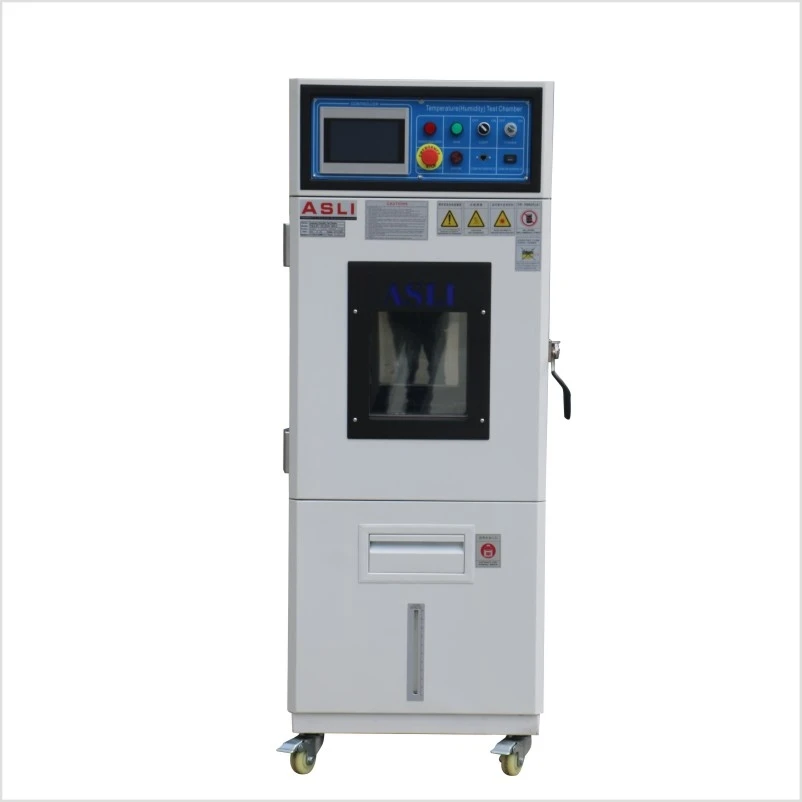

The TH-80-D Constant Temperature & Humidity Test Chamber is designed for precise environmental testing of PCB, semiconductor components, and small samples. This compact yet powerful chamber ensures stable temperature and humidity conditions, meeting industry standards for electronics, aerospace, and material testing. ASLI TEST INSTRUMENT provides high-performance reliability with customizable features to meet diverse testing requirements.
Constant Temperature & Humidity Test Chamber
| Model | TH-80 | TH-150 | TH-225 | TH-408 | TH-800 | TH-1000 |
| Internal Dimension | 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 |
| WxHxD (mm) | ||||||
| External Dimension | 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450 |
| WxHxD (mm) | ||||||
| Temperature Range | T min: Low Temperature (A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) | |||||
| Tmax: High Temperature (150℃, 180℃, 200℃) | ||||||
| Humidity Range | Optional: ( 20%~98%R.H /10%-98% R.H. / 5%-98% R.H ) | |||||
| Analytic Accuracy/ | 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H. | |||||
| Distribution uniformity | ||||||
| of temperature | ||||||
| and humidity | ||||||
| Control Accuracy | ±0.5℃; ±2.5% R.H. | |||||
| of Temperature and | ||||||
| Humidity | ||||||
| Temperature Rising/ | The temperature is rising approximately. 0.1~3.0℃/min | |||||
| Falling Speed Rate | The temperature is falling approximately. 0.1~1.5℃/min; | |||||
| Customizable | ( The Falling Speed Rate Min. 1.5℃per minute is a special optional condition) | |||||
| Material | The material of the inner box is SUS 304# stainless steel, and the outer box is stainless steel or |
|||||
| SEE cold-rolled steel with paint coated. Insulation material is resistant to high temperatures, | ||||||
| high-density, formate chlorine, ethyl acetate foam insulation materials | ||||||
| Cooling System | Wind cooling or water cooling/single segment compressor(-40℃, double segment | |||||
| compressor -70℃) | ||||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage | |||||
| coolant protection switch, over-humidity, and over-temperature protection switch, fuses, | ||||||
| fault warning system, water shortage storage warning protection | ||||||
| Optional Accessory | Inner door with an operation hole, Recorder, Water Purifier, Dehumidifier | |||||
| Compressor | French Tecumseh Brand, Germany Bizer Brand | |||||
| Power | AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ | |||||
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 |
