Temperature Humidity Vibration Combined Test System

-75~150c, 5%R. H. Temperature Humidity Vibration Comprehensive Resistance Tester

-75~150c, 5%R. H. Temperature Humidity Vibration Comprehensive Resistance Tester provides the change of temperature and humidity environment for the aerospace, aviation, petroleum, chemical, electronics, communication and other scientific research and production units, at the same time in the test chamber electric vibration stress according to the provisions of the cycle is applied to the sample, for the user of the machine (or components), electrical appliances, instruments, materials etc. temperature and humidity, vibration stress screening test, in order to assess product adaptability or experiment on behavior evaluation.

Inquire Now
Description

-75~150c, 5%R. H. Temperature Humidity Vibration Comprehensive Resistance Tester



Product Description
Environmental Simulation Temperature Humidity Vibration Combined Test Machine provides the change of temperature and humidity environment for the aerospace, aviation, petroleum, chemical, electronics, communication and other scientific research and production units, at the same time in the test chamber electric vibration stress according to the provisions of the cycle is applied to the sample, for the user of the machine (or components), electrical appliances, instruments, materials etc. temperature and humidity, vibration stress screening test, in order to assess product adaptability or experiment on behavior evaluation.

Name
 Temperature Humidity Combined Vibration Test Machine
Model
THV-408(A~F)
THV-1000(A~F)
THV-1500(A~F)
Internal Dimension WxHxD(mm)
600x850x800
1000x1000x1000
1500x1500x1500
External dimension WxHxD (mm)
850x1950x2100
1300x2200x2400
1800x2400x3000
Temperature Range
Low temperature: (A:25ºC; B:0ºC; C:-20ºC; D: -40ºC; E: -60ºC; F:-70ºC/-75ºC)
High temperature:100ºC(150ºC/200ºC)
Humidity Range
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)
Control Accuracy of temperature and humidity
±0.5ºC; ±2.5% R.H.
Temperature Rising / Falling Velocity
Temperature rising approx. 0.1~3.0ºC/min ;
temperature falling approx. 0.1~1.0ºC/min;
(Falling velocity Min.1.5ºC/min is optional)
Protection Devices
Fuse-free switch, overloading protection switch  for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Vibration Test Equipment
Choose proper vibration test bench according to customer's test condition, the technical parameters please take  Electrodynamics Type Vibration Tester's parameters in this catalog for reference


-75~150c, 5%R. H. Temperature Humidity Vibration Comprehensive Resistance Tester


-75~150c, 5%R. H. Temperature Humidity Vibration Comprehensive Resistance Tester Features:

1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console.
2. Original refrigerating compressor unit and its main accessories are internaltional famous brand;
3.LCD color touch screen controller, capable of automatic control of temperature humidity programs;
4. RS-232 communication. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool,
5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration



For Vibration Shaker:
Model
ES-3
ES-3a
ES-6
ES-6a
ES-10
ES-20
ES-30
ES-40
ES-50
Rated Sine Force (N)
3000
3000
6000
6000
10000
20000
30000
40000
50000
Rated Random Force (N)
3000
3000
6000
6000
10000
20000
30000
40000
50000
Frequency Range (Hz)
3-3500
3-3500
3-3500
3-3500
3-3000
3-3000
3-2800
3-2800
3-2700
Rated Acceleration (m/s2)
1000
400
1000
1000
1000
1000
1000
1000
1000
Rated Speed (m/s)
1.6
1.6
1.6
1.6
1.8
1.8
1.8
1.8
1.8
Rated displacement (p-p) mm
25
40
25
51
51
51
5l
51
51
Max. Loading (Kg)
100
120
180
250
270
300
450
500
750
moving coil (Kg)
3.5
9
6.5
12
14
30
40
50
50
Dia. of moving coil
Φ150
Φ230
Φ230
Φ230
Φ240
Φ320
Φ450
Φ450
Φ450

-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers
For Vertical Expander:
-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers

VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship.


For Horizontal Expander
-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.

Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.

Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure and easy operating.

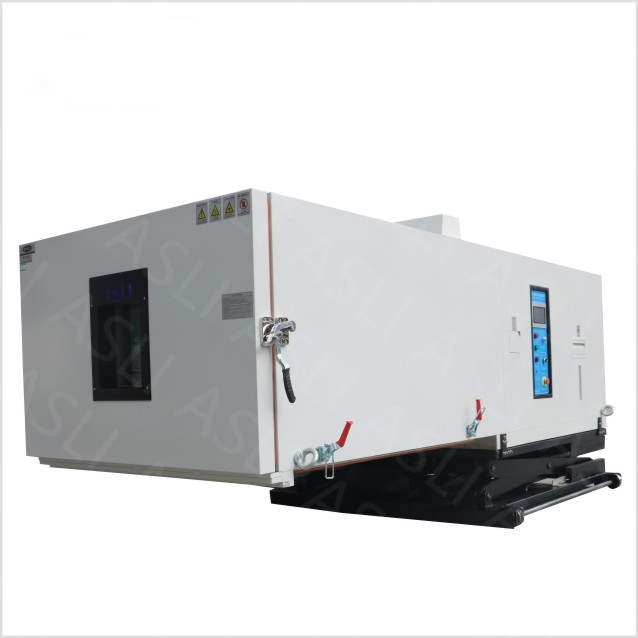

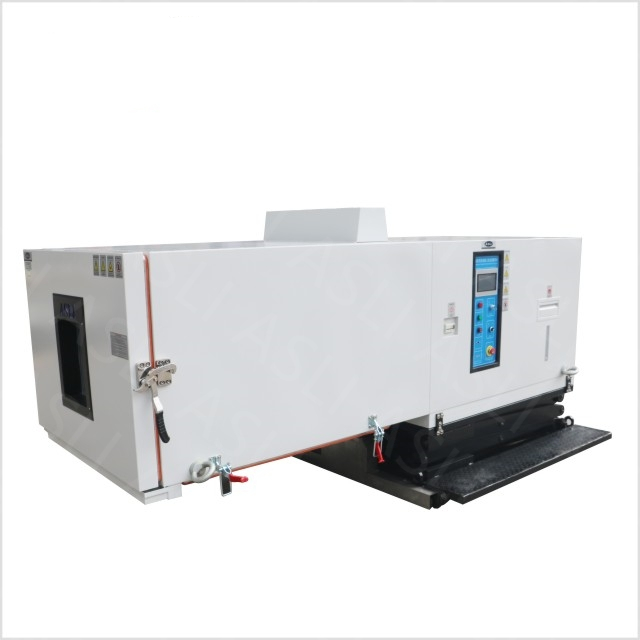

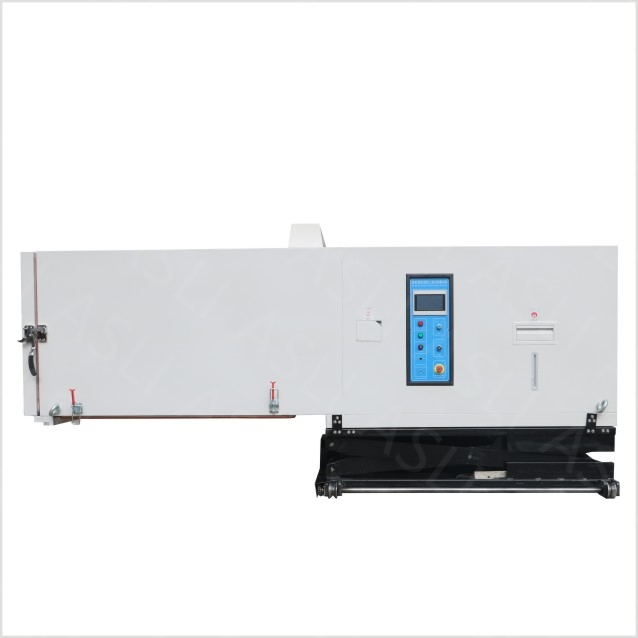

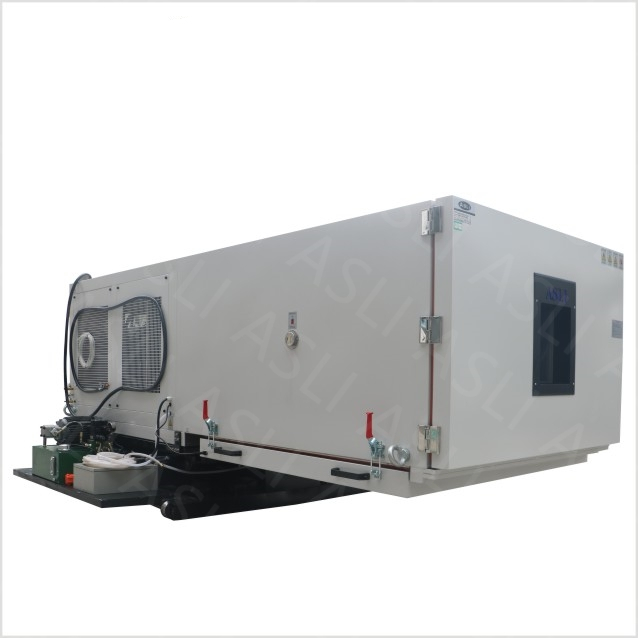

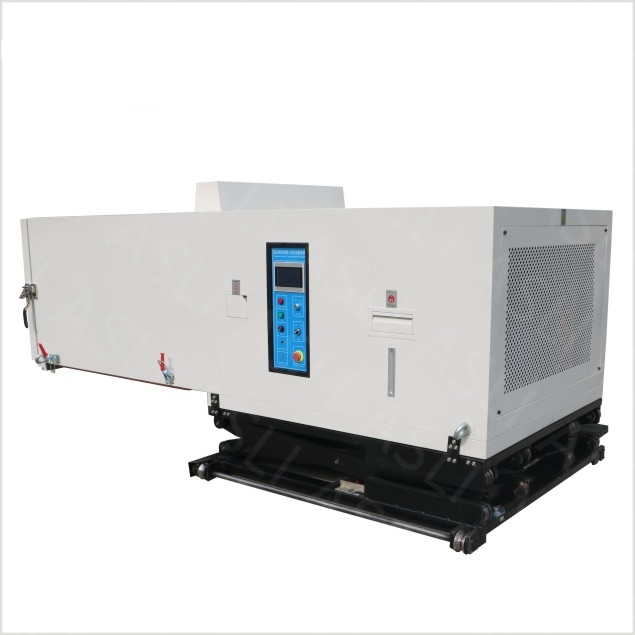

Detailed Images

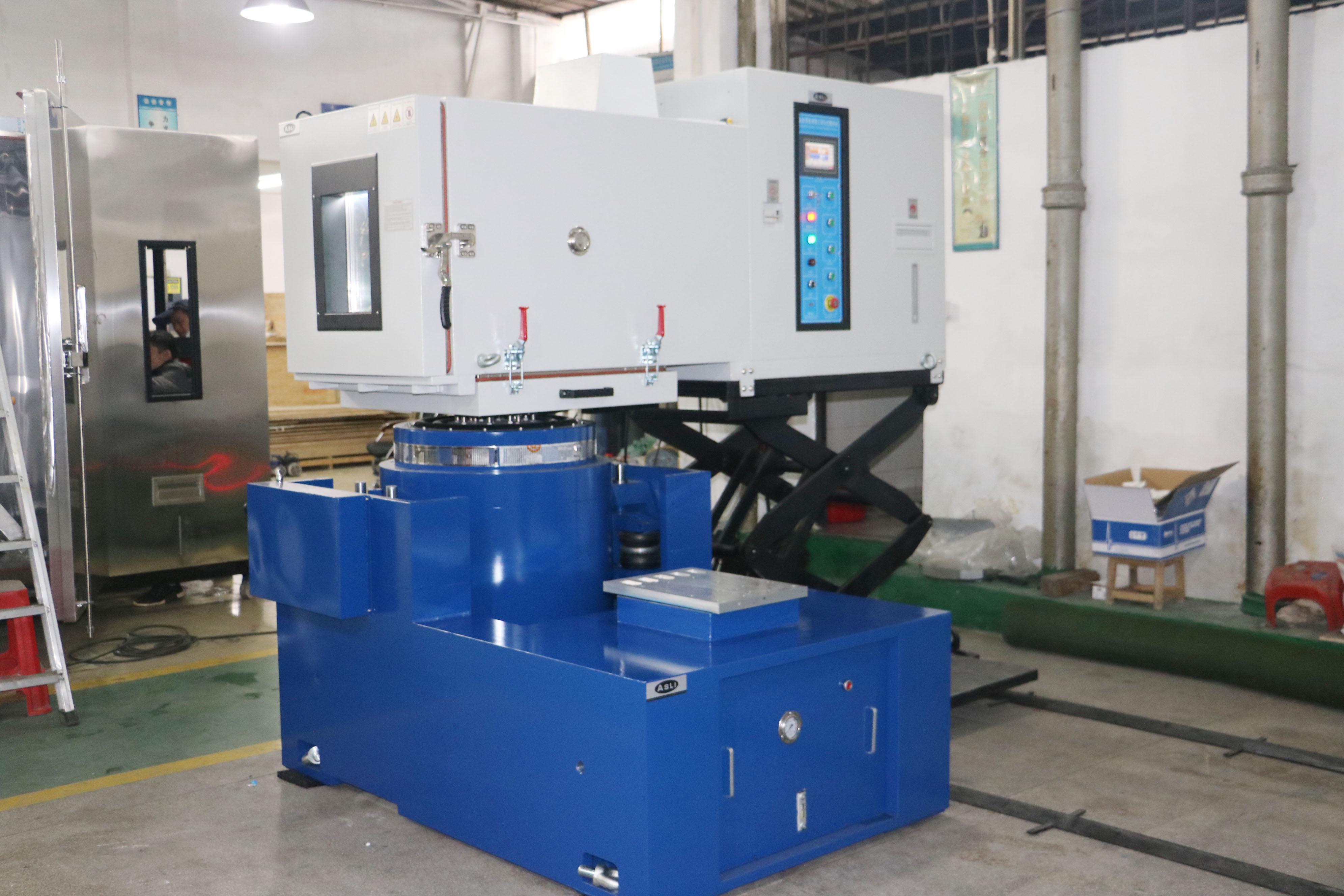

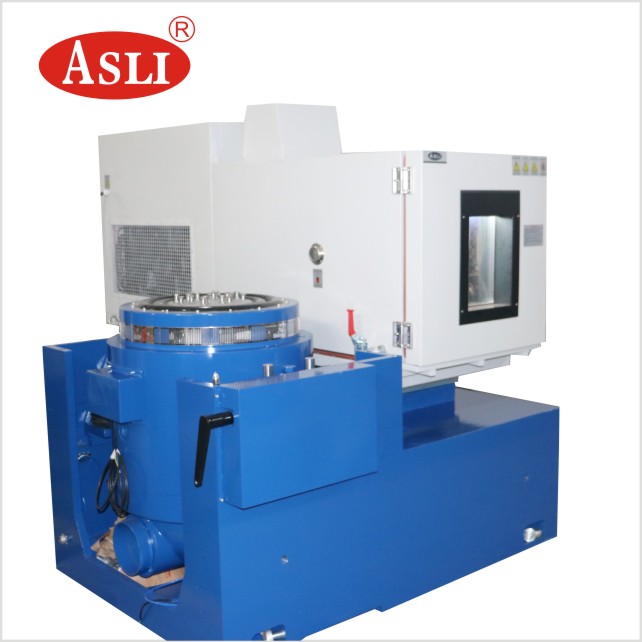

-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers600C Oven + Vibration Shaker

-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers
-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers-75~150c, 5%R. H. Temperature and Humidity Vibration Comprehensive Environmental Test Chambers

Our Company

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. -75~150c, 5%R. H. Temperature Humidity Vibration Comprehensive Resistance Tester is our star products , and we had obtained the CE certification for this machine .
