The combined environmental test refers to the test combining three environmental factors, which are temperature, humidity, and vibration. In order to obtain explicit results in a relatively short period of time, we can increase the severity level of the environmental conditions. The evaluation can be carried out in a short period of time by exposing the specimen to a certain range of simulated environmental parameters controlled in the laboratory. Therefore, it is possible to estimate a test result that is close to reality by applying similar environmental conditions. The combination of temperature, humidity, and vibration occurs especially in the fields of motor and rail transit.
| Parameter | THV-408 (A~F) | THV-1000 (A~F) | THV-1500 (A~F) |
|---|---|---|---|
| Internal Dimension W×H×D (mm) | 600 × 850 × 800 | 1000 × 1000 × 1000 | 1500 × 1500 × 1500 |
| External Dimension W×H×D (mm) | 850 × 1950 × 2100 | 1300 × 2200 × 2400 | 1800 × 2400 × 3000 |
| Temperature Range | Low: (A) 25 °C / (B) 0 °C / (C) −20 °C / (D) −40 °C / (E) −60 °C / (F) −70 °C / −75 °C High: 100 °C (150 °C / 200 °C optional) |
Low: (A) 25 °C / (B) 0 °C / (C) −20 °C / (D) −40 °C / (E) −60 °C / (F) −70 °C / −75 °C High: 100 °C (150 °C / 200 °C optional) |
Low: (A) 25 °C / (B) 0 °C / (C) −20 °C / (D) −40 °C / (E) −60 °C / (F) −70 °C / −75 °C High: 100 °C (150 °C / 200 °C optional) |
| Humidity Range | 20–98% R.H. 10–98% / 5–98% available with dehumidifier |
20–98% R.H. 10–98% / 5–98% available with dehumidifier |
20–98% R.H. 10–98% / 5–98% available with dehumidifier |
| Control Accuracy & Uniformity | ±0.5 °C; ±2.5% R.H. Uniformity: ≤ ±2 °C; ±3% R.H. |
±0.5 °C; ±2.5% R.H. Uniformity: ≤ ±2 °C; ±3% R.H. |
±0.5 °C; ±2.5% R.H. Uniformity: ≤ ±2 °C; ±3% R.H. |
| Rising / Falling Velocity | Rising: 0.1–3.0 °C/min Falling: 0.1–1.0 °C/min (min. 1.5 °C/min optional) |
Rising: 0.1–3.0 °C/min Falling: 0.1–1.0 °C/min (min. 1.5 °C/min optional) |
Rising: 0.1–3.0 °C/min Falling: 0.1–1.0 °C/min (min. 1.5 °C/min optional) |
| Protection Devices | Fuse-free switch; compressor overload; high/low coolant voltage; over-humidity and over-temperature; fault warning; water short-storage warning. | Fuse-free switch; compressor overload; high/low coolant voltage; over-humidity and over-temperature; fault warning; water short-storage warning. | Fuse-free switch; compressor overload; high/low coolant voltage; over-humidity and over-temperature; fault warning; water short-storage warning. |
| Model | Sine Force (N) | Random Force (N) | Frequency (Hz) | Acceleration (m/s²) | Speed (m/s) | Displacement (p-p) mm | Max. Load (kg) | Coil Mass (kg) | Coil Size (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
Custom chamber size available on request. Need a specific temperature grade, humidity range, or a matched vibration bench? Send your DUT spec — our team will recommend a configuration and quote within 24 hours.

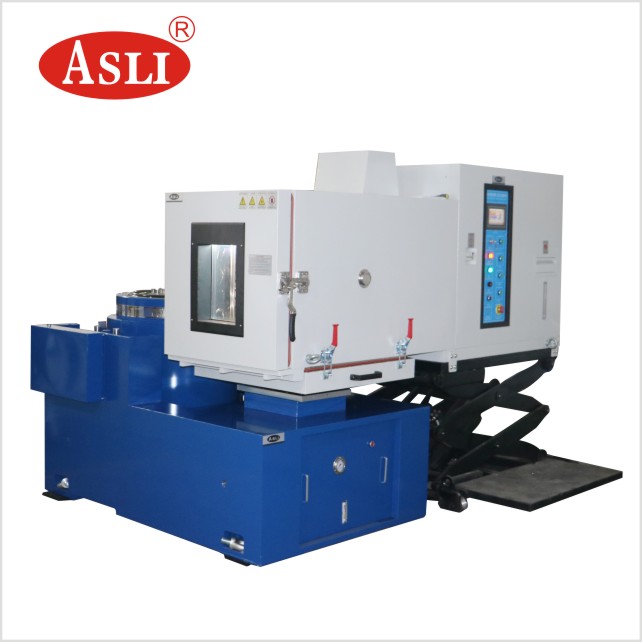

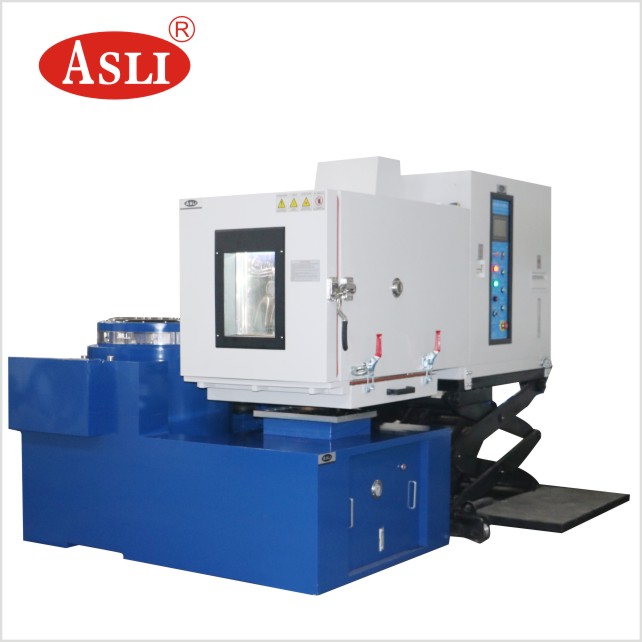

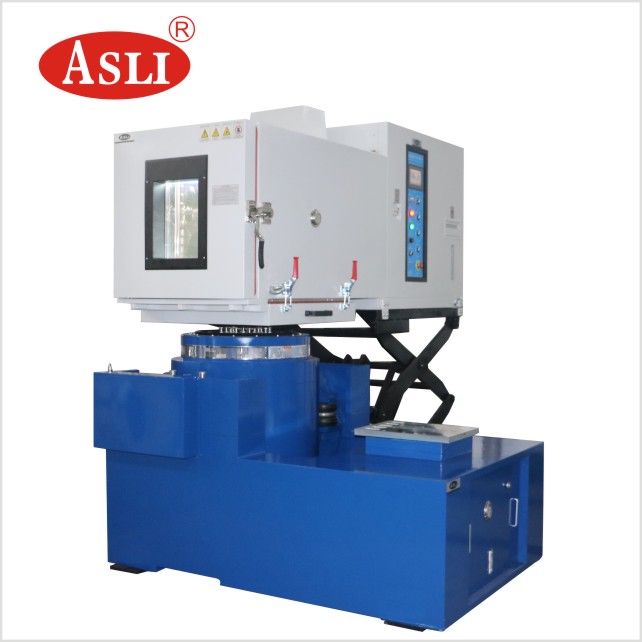

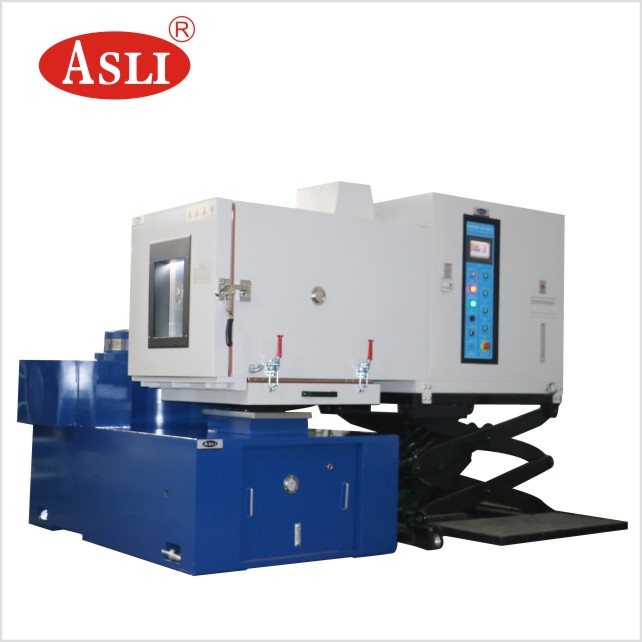

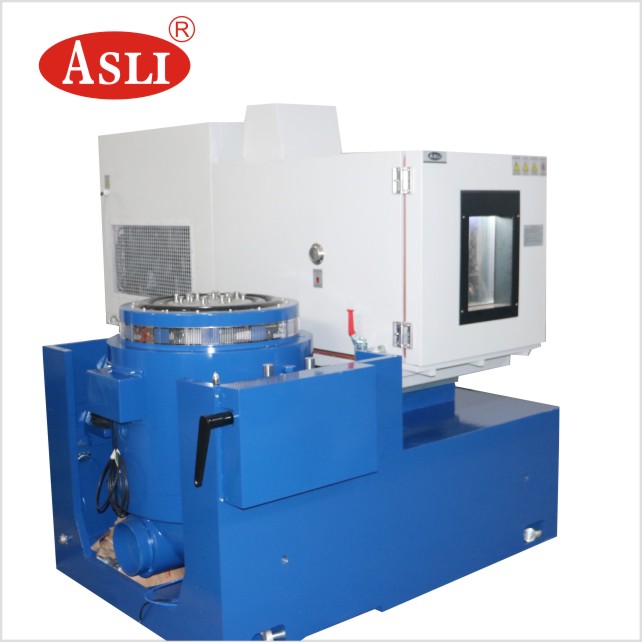

Combines a temperature and humidity chamber with a matched electrodynamic shaker — so you can run combined environmental tests without moving the DUT between systems.
Choose the THV chamber model by internal size (408 / 1000 / 1500) and temperature grade (A–F, down to −75 °C). Pair it with any ES-Series shaker from 3,000 N to 100,000 N.
Used across aviation, aerospace, shipping, electronics, automotive, and telecommunications industries.
In practice: A compact design with an independent console — reduces floor space and installation time compared to separate systems.
In practice: Pick the grade that matches your test standard. No paying for capacity you don't need.
In practice: Corrosion-resistant and easy to clean. Stable through repeated humidity cycles — extends chamber life.
In practice: Select the ES-Series shaker that fits your DUT weight and force — 3,000 N to 100,000 N — with one system.
Supported test standards for combined temperature, humidity, and vibration testing.
Five matched components — calibrated as one complete system.

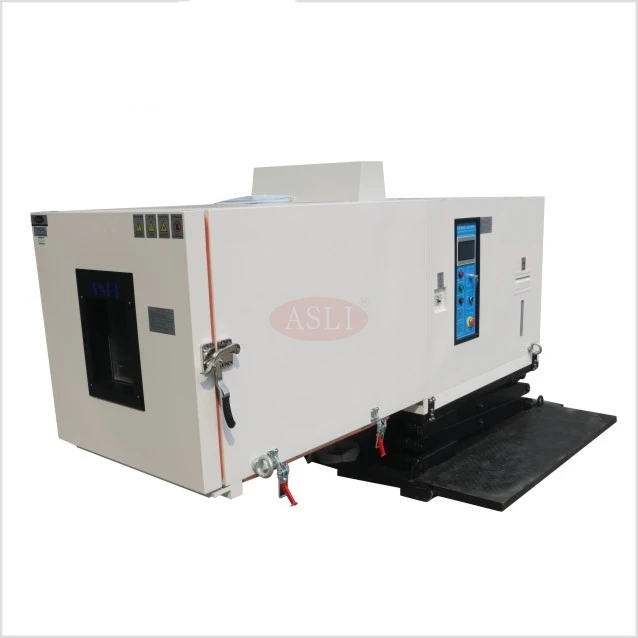

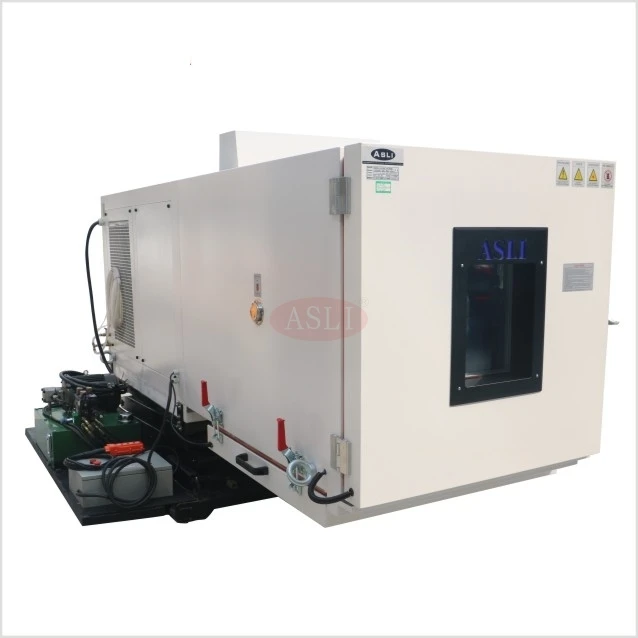

SUS 304 stainless steel interior, combined temperature and humidity control.
Tecumseh (France) and Bizer (Germany) compressor units.
Automatic control; optional dehumidifier for low-humidity tests.
Matched ES-Series shaker — selected by DUT weight and force.
LCD touch screen with RS-232 communication for programmable profiles.
High-resolution photos and dimensional drawings available on request.
