The hot and cold temperature shock environmental aging tester with separate hot and cold zones, the automated thermal stress system has a patented, retractable product transfer carrier basket that makes full use of the available workspace in both temperature zones for increased product loading and throughput. The product transfer carrier basket reduces the overall height requirements of the chamber and is made as light as possible to minimize thermal loading restraints. Thermostats chambers can be used as part of most thermal cycling reliability and quality control programs.

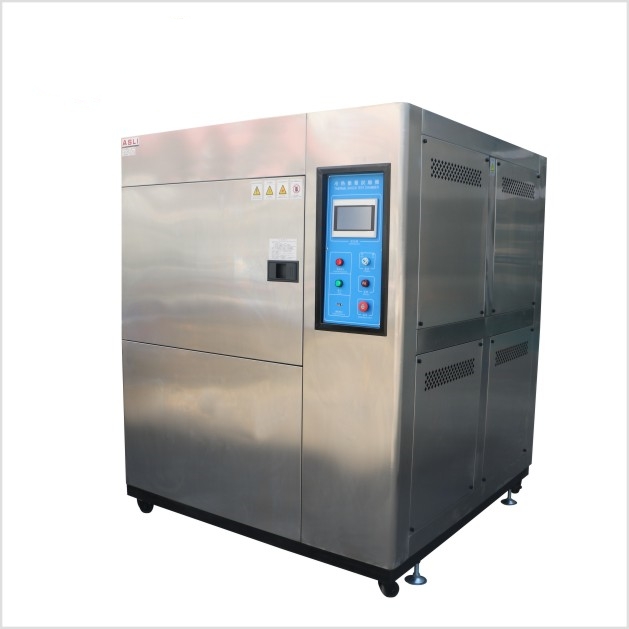

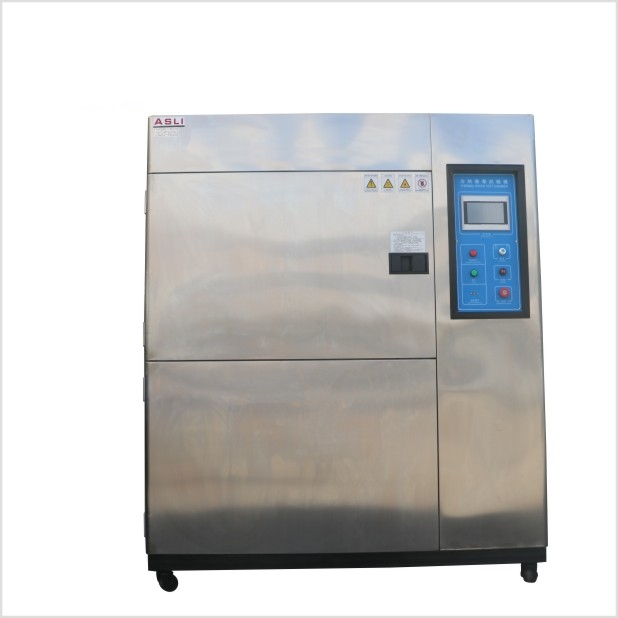

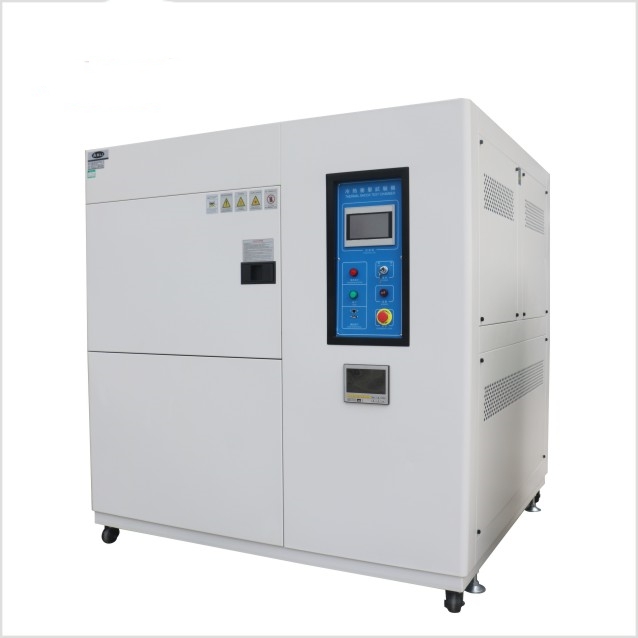

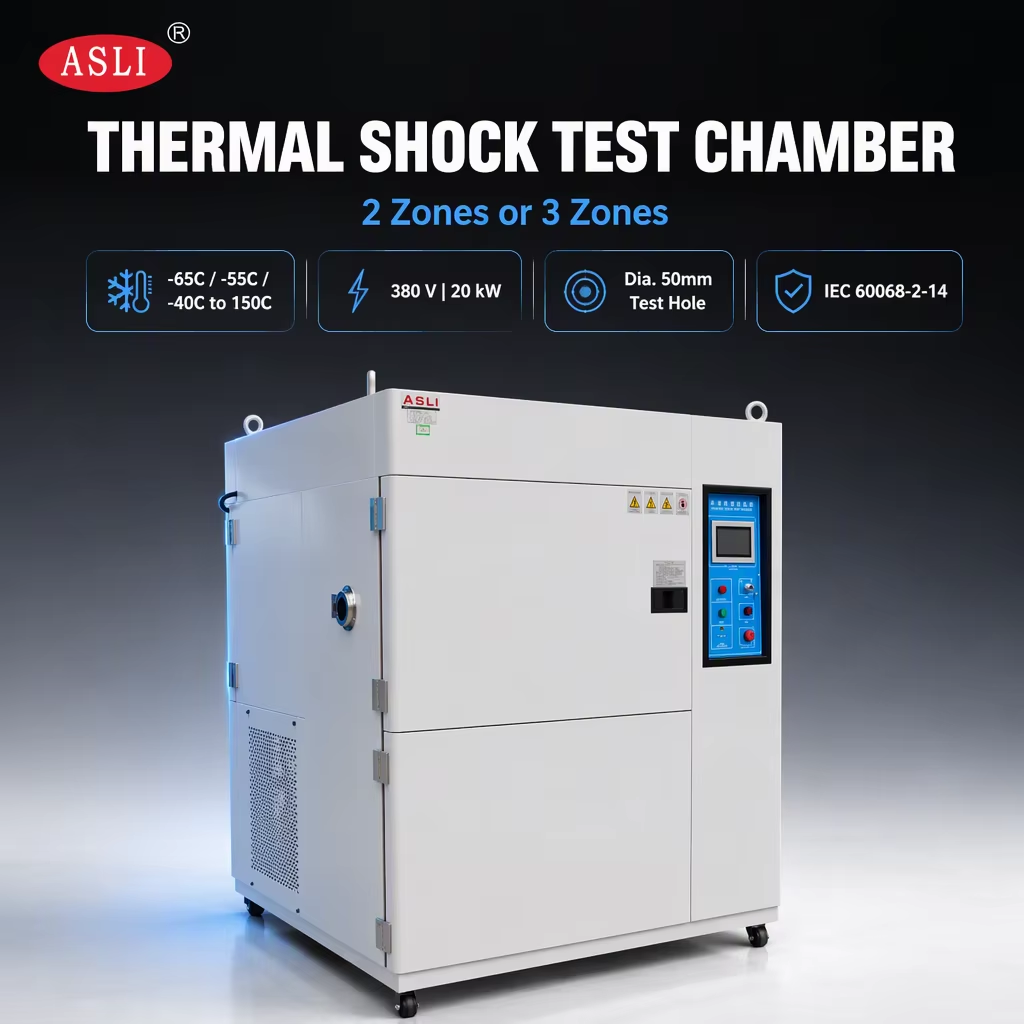

TS Series — Thermal Shock Resistance Test Equipment

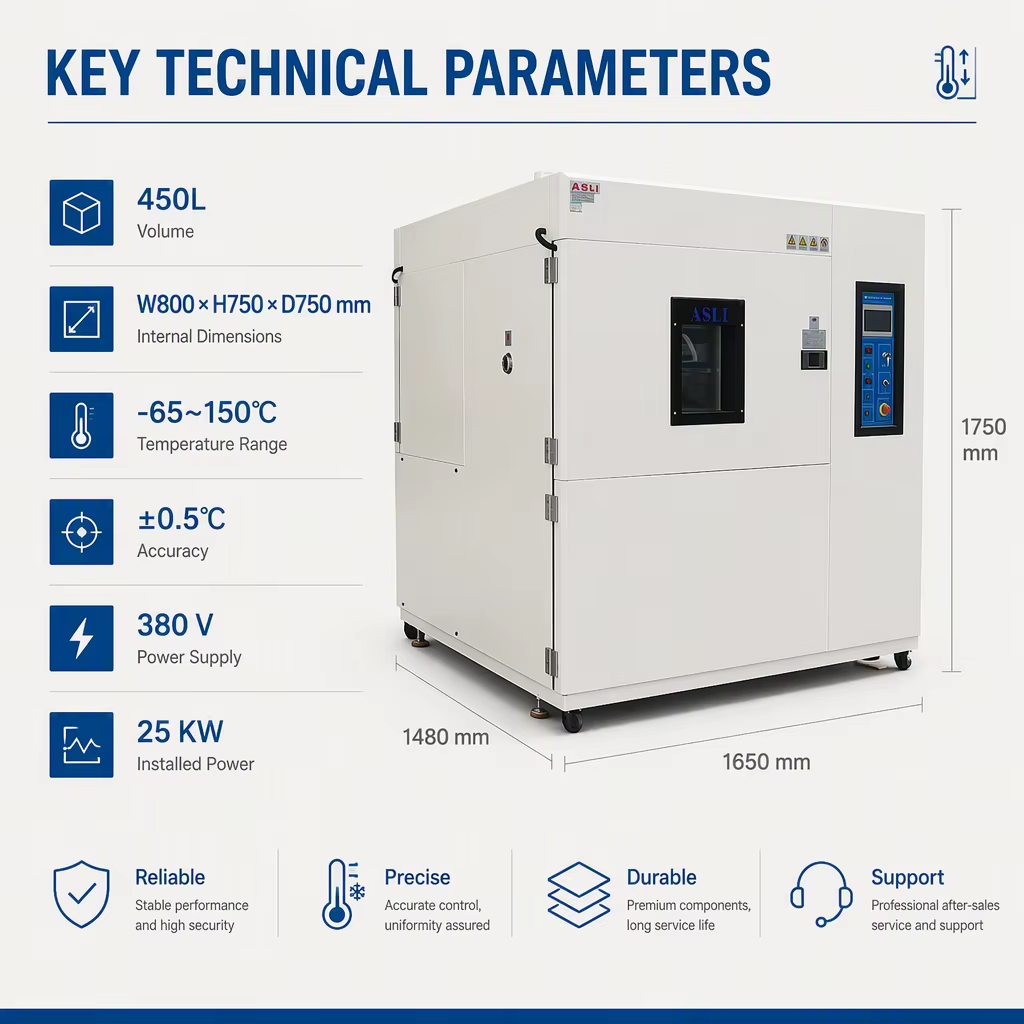

| Parameter | TS-49 (A~C) | TS-80 (A~C) | TS-150 (A~C) | TS-252 (A~C) | TS-450 (A~C) |
|---|---|---|---|---|---|
| Internal Dimension W×H×D (mm) | 400 × 350 × 350 | 500 × 400 × 400 | 600 × 500 × 500 | 700 × 600 × 600 | 800 × 750 × 750 |
| External Dimension W×H×D (mm) | 1400 × 1800 × 1400 | 1550 × 1950 × 1550 | 1600 × 2000 × 1700 | 1700 × 2100 × 1750 | 1800 × 2200 × 1900 |
| Temperature Range of Testing Zone | Type A: −40 °C ~ +150 °C (200 °C optional) | Type B: −55 °C ~ +150 °C (200 °C optional) | Type C: −65 °C ~ +150 °C (200 °C optional) | ||||
| High Temperature Range | +60 °C ~ +150 °C (200 °C optional) | ||||
| Low Temperature Range | −10 °C ~ −40 °C (A) / −55 °C (B) / −65 °C (C) | ||||
| Exposure Time — High / Low | High (+60 °C ~ +150 °C): 30 mins | Low (−10 °C ~ A / B / C): 30 mins | ||||
| Heating Time — Heat-Storing Slot | RT ~ 200 °C / about 45 mins | ||||
| Cooling Time — Cool-Storing Slot | RT ~ −75 °C / about 100 mins | ||||
| Recovery Time / Conversion Time | ≤ 5 min / ≤ 5 sec | ||||
| Control Accuracy / Uniformity | ± 0.5 °C / ± 2 °C | ||||

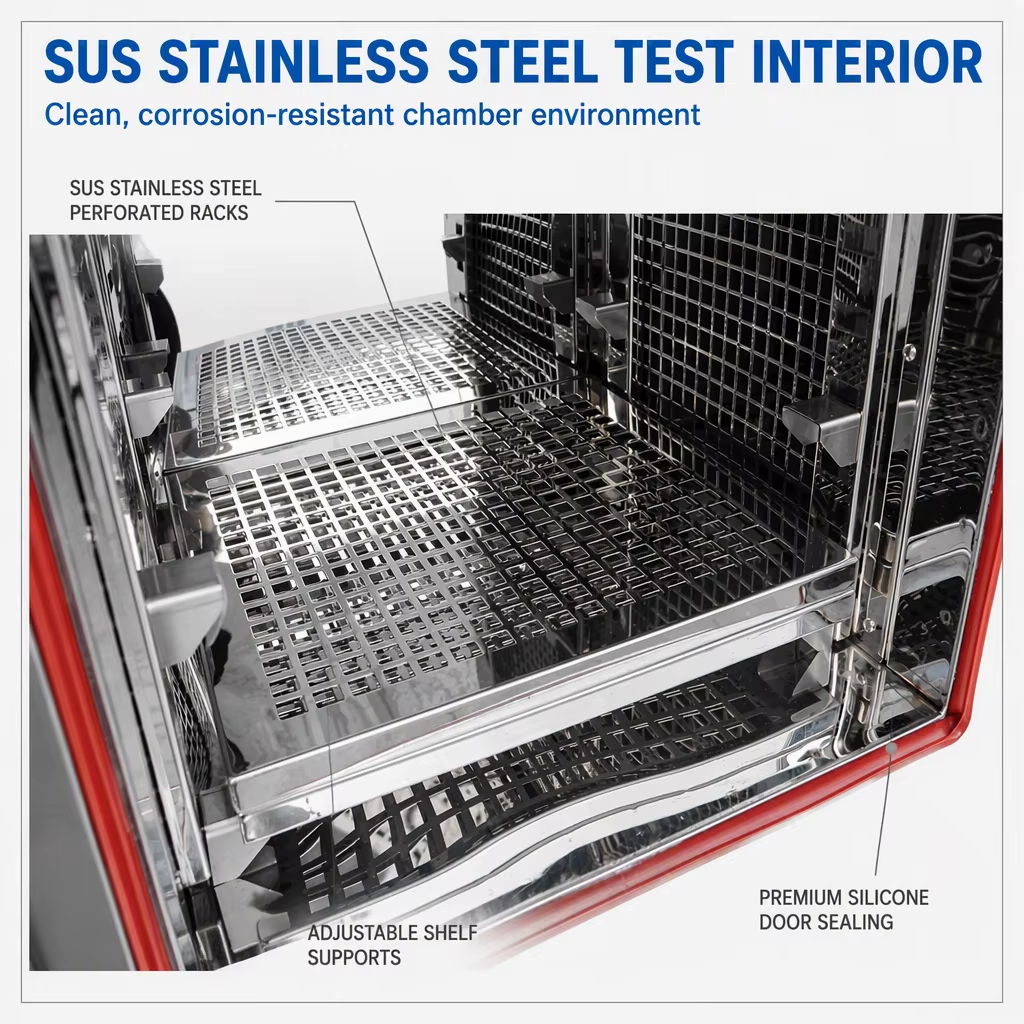

| Internal and External Material | Inner box: SUS 304# stainless steel. Outer box: stainless steel or cold-rolled steel with paint coating. | ||||
| Insulation Material | High-temperature resistant, high-density, formate chlorine / ethyl acetate foam insulation materials | ||||
| Mechanics | P.I.D + S.S.R + Micro-computer balanced temperature control system | ||||
| Cooling System | Semi-hermetic double-stage compressor (water-cooled) / Hermetic double-stage compressor (air-cooled) | ||||
| Security Protection Devices | Non-fuse breaker; compressor high/low pressure switch; refrigerator high-pressure switch; failure warning system; electronic alarm | ||||
| Accessories | Viewing window (special order) | ||||
| Compressor | French Tecumseh brand; Germany Bizer brand | ||||
| Power | AC 220 V 1-phase 3-wire, 50/60 Hz | AC 380 V 3-phase 5-wire, 50/60 Hz | ||||
| Weight (Approx.) | 450 kg | 600 kg | 750 kg | 950 kg | 1200 kg |
Need a custom chamber size, temperature grade, or a specific test standard? Send us your DUT spec and test profile — our team will recommend a configuration and quote within 24 hours.
Tests how materials and assemblies withstand rapid transitions between extreme high and low temperatures — revealing chemical changes or physical damage caused by thermal expansion and cold contraction.
Designed to meet EN 60068-2-14 requirements, the TS Series exposes samples to rapid temperature changes in a short period — accelerating failure modes that would take much longer to appear under normal conditions. Suitable for metals, plastics, rubber, electronics, and composite materials.
High-resolution photos and dimensional drawings available on request.
Two chamber designs to match different test methods and cycle-time requirements.

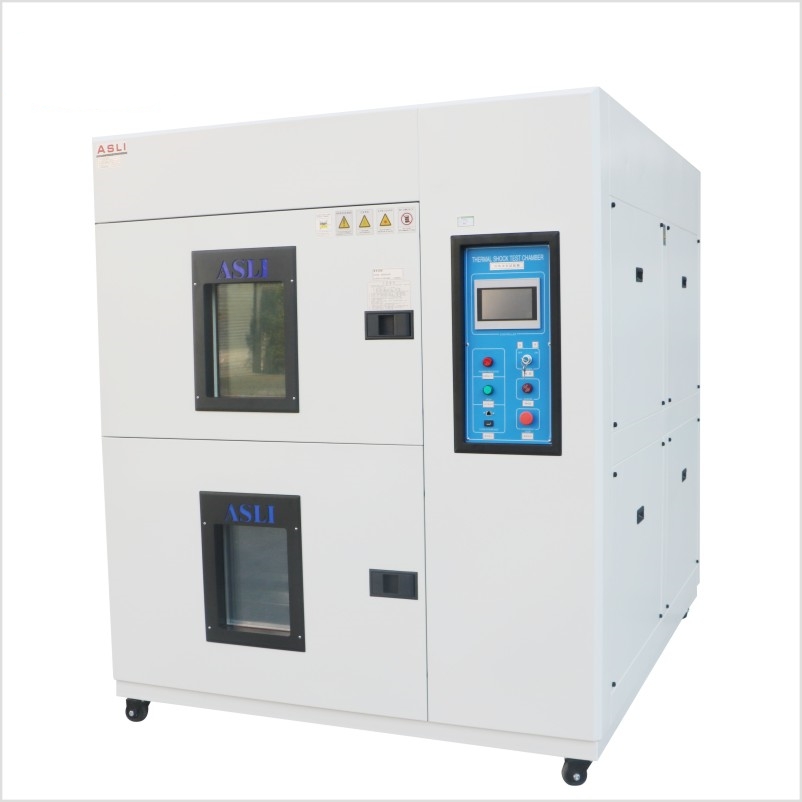

The sample basket moves vertically between a high-temperature chamber and a low-temperature chamber. Fast transfer time, high cycle throughput — ideal for high-frequency cycling tests.
A single chamber with hot and cold airflow switching at high speed. The sample stays static during the entire test — no mechanical movement or basket transfer.

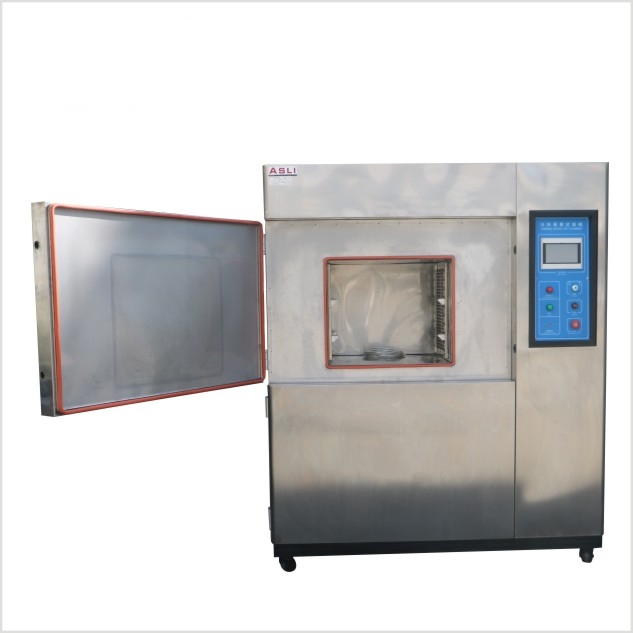

Basket transfer design with vertical stacking of high and low temperature chambers.
Static sample with high-speed hot / cold airflow switching in one chamber — no basket transfer.
In practice: Matches IEC and EN standard test profiles — accelerating failure discovery without long cycle times.
In practice: Select the grade that matches your test standard. High-temperature capability up to 200 °C is available as an option.
In practice: Runs long automated shock sequences without operator intervention — ideal for multi-day qualification tests.
In practice: Set test profiles and log data via a single interface. Automatic or manual shock modes give flexible test control.

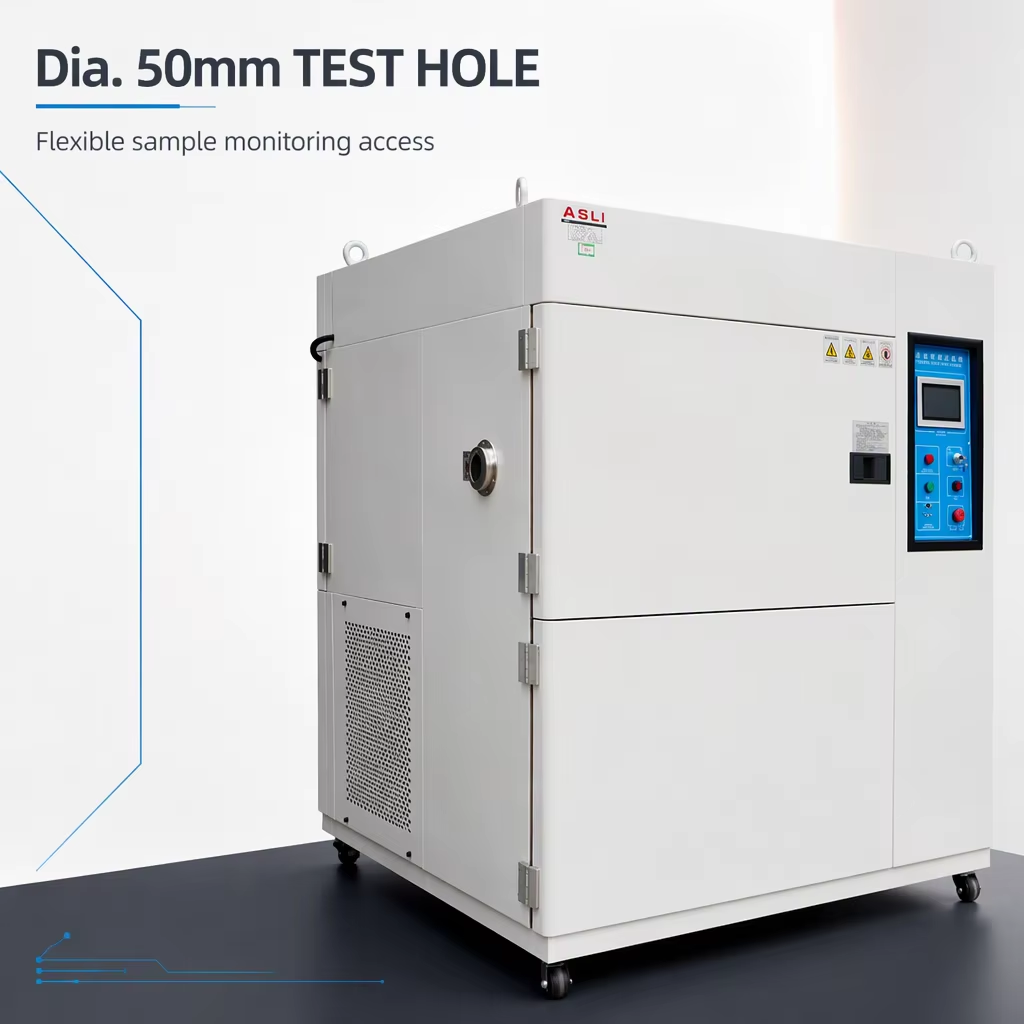

Control, cycling, and monitoring features included with every thermal shock chamber.
Designed to meet the following thermal shock and rapid temperature change standards.
Actual temperature profiles recorded from the TS Series thermal shock chamber.
Charts show the temperature profile during a typical thermal shock cycle.
Independent protection layers — protecting your sample, your operator, and the system.
Suitable for thermal shock testing of metals, plastics, rubber, electronics, and composite materials.
Global customers visit our factory for equipment inspection, factory acceptance testing, and technical discussions.
