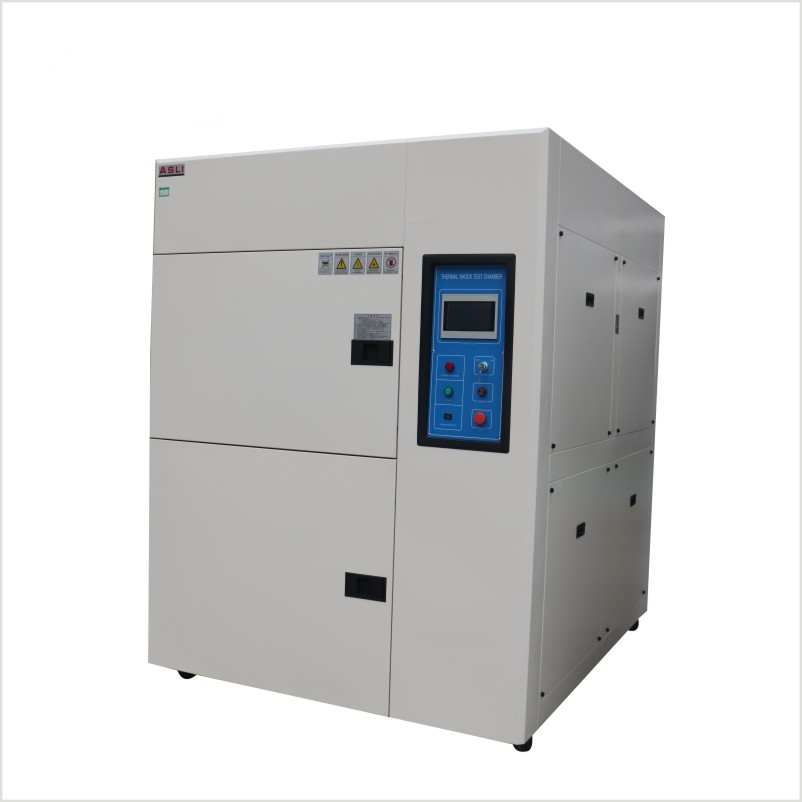

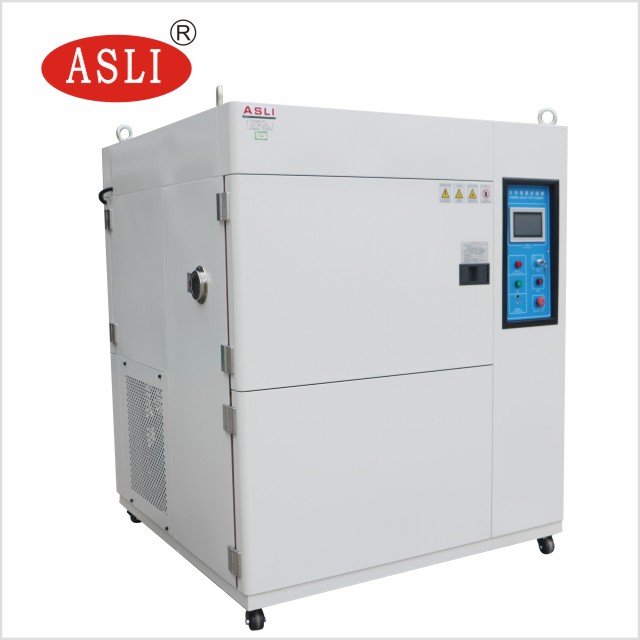

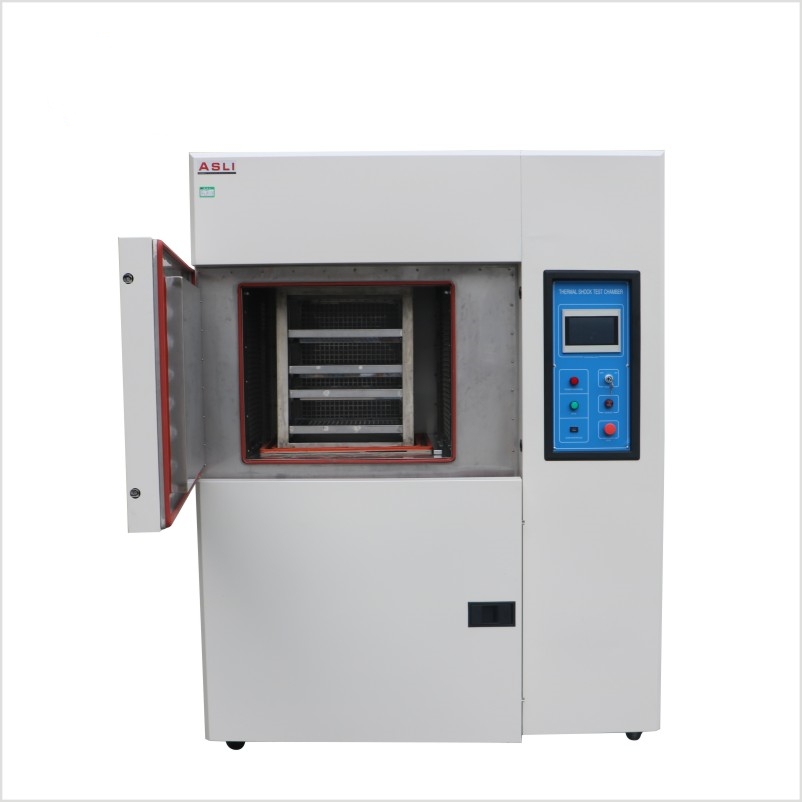

Programmable High Low Temperature Thermal Shock Environmental Test Chamber

Programmable High Low Temperature Thermal Shock Environmental Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.

Inquire Now

Description

Programmable High Low Temperature Thermal Shock Environmental Test Chamber is divided into two-chamber type dynamic shock and three-chamber type static shock according to the specificity of samples to be tested, while the series of products can be used in high temperature or low temperature environmnet. It is widely used in aerospace, electronics in electrical engineering, instrument, materials and equipment, and parts and other components to simulate adaptability test of test pieces in rapid changes of surrounding atmospheric temperature or to provide reliability test and product screening for safety test of components; meanwhile, the quality of products can be controlled through this test.

Programmable High Low Temperature Thermal Shock Climate Environmental Test Chamber

Name	Thermal Shock Test Chamber
Model	TS-80(A~C)	TS-150(A~C)	TS-252(A~C)
Internal Dimension WxHxD (mm)	500x400x400	600x500x500	700x600x600
External Dimension WxHxD (mm)	1550x1950x1550	1600x2000x1700	1700x2100x1750
Temperature Range of Testing zone	Type A:-40 ºC~+150ºC ( 200ºC is Optional)	Type B:-55ºC ~+150ºC ( 200ºC is Optional )	Type C:-65ºC ~+150ºC ( 200ºC is Optional)
Temperature Range of Testing zone	High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional); Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC
Control Accuracy / Distribution Uniformity	±0.5ºC/±2ºC
Internal and External Material	Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.
Mechanics	P.I.D+S.S.R+ Micro-computer balanced temperature control system
Cooling System	Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)

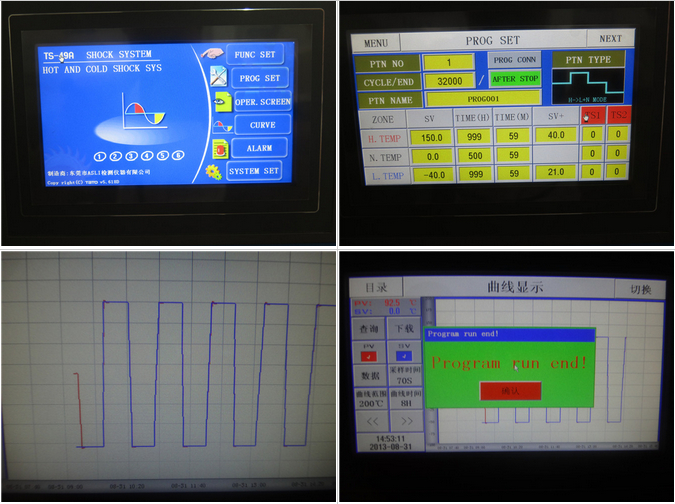

Test Data

Temperature Thermal Shock Test Chamber Features

1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static mode.

2.Using touch-control graph control as operation interface, easy to operate.

3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.

4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.

5.The system can be used for automatic Circulation Shock or manual selective shock.

6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.

7.Can entering normal temperature. RS-232 and RS-485 communication.

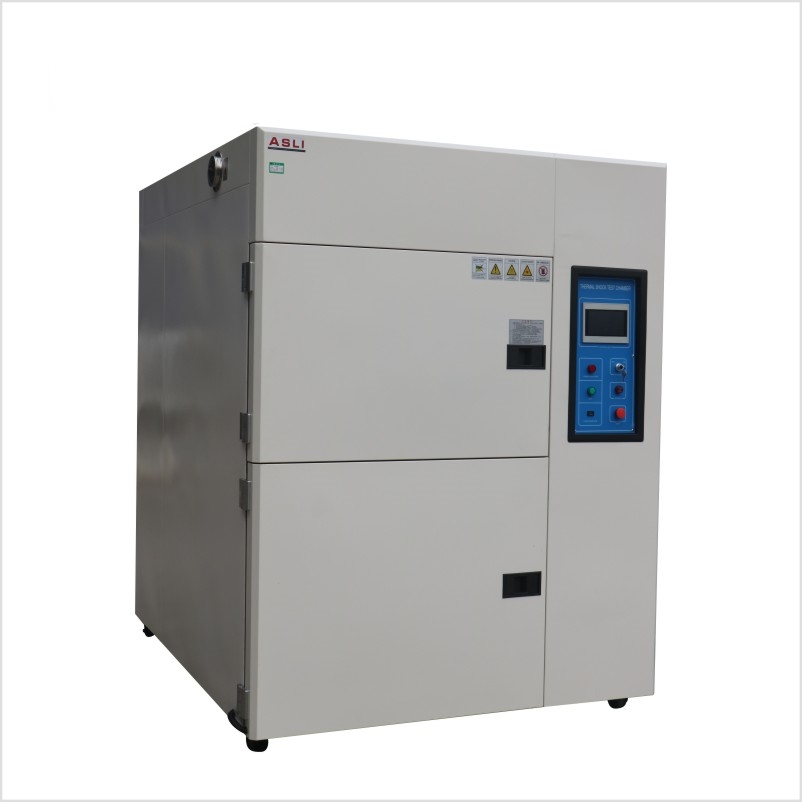

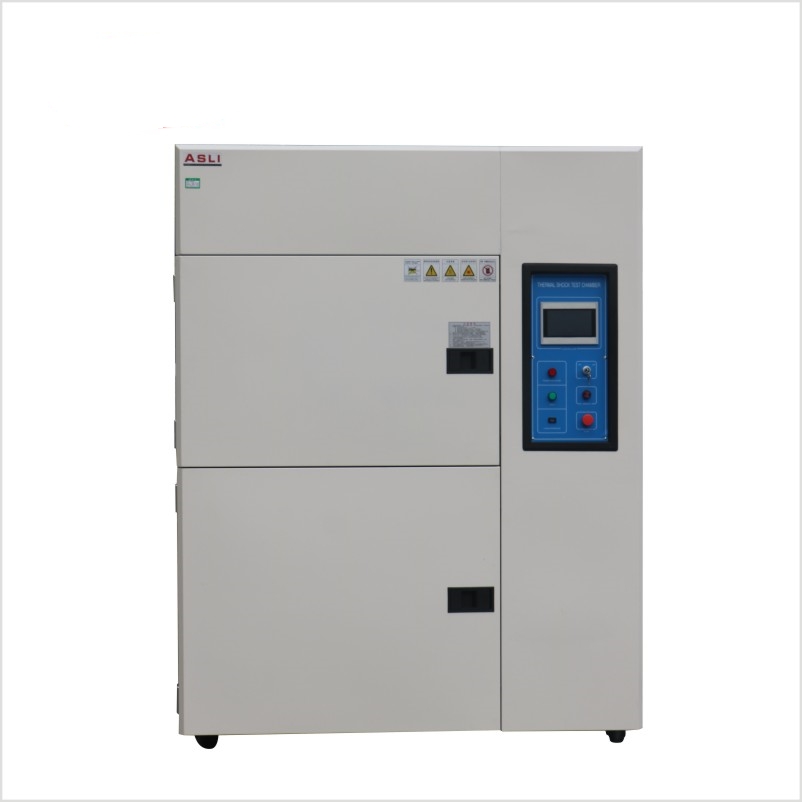

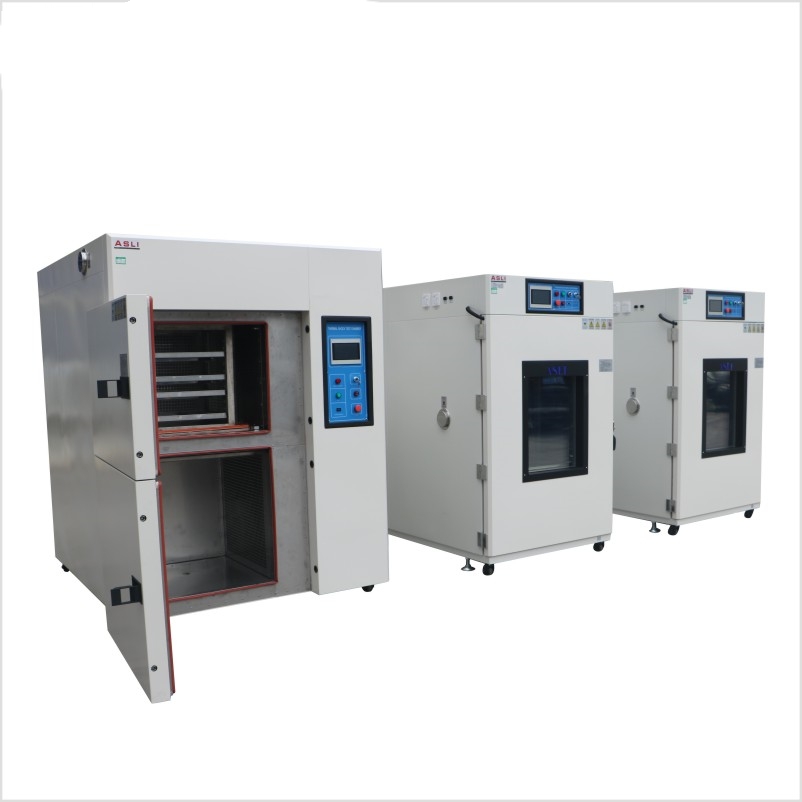

Detailed Images

Programmable High Low Temperature Thermal Shock Climate Environmental Test Chamber

Our Company

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine.Programmable High Low Temperature Thermal Shock Climate Environmental Test Chamber is our star products , and we had obtained the CE certification for this machine .

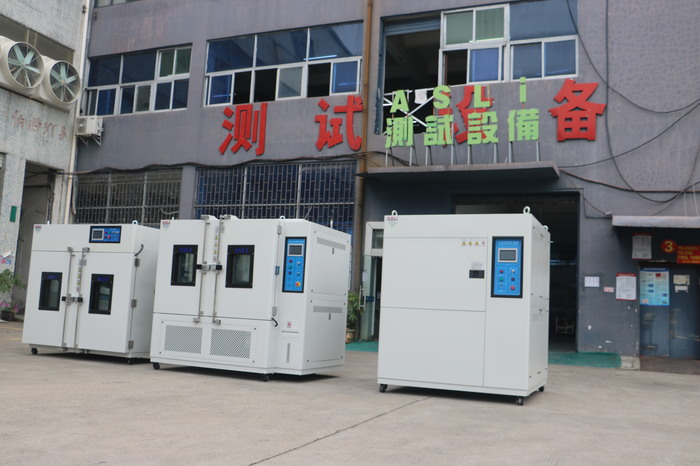

Exhibition
