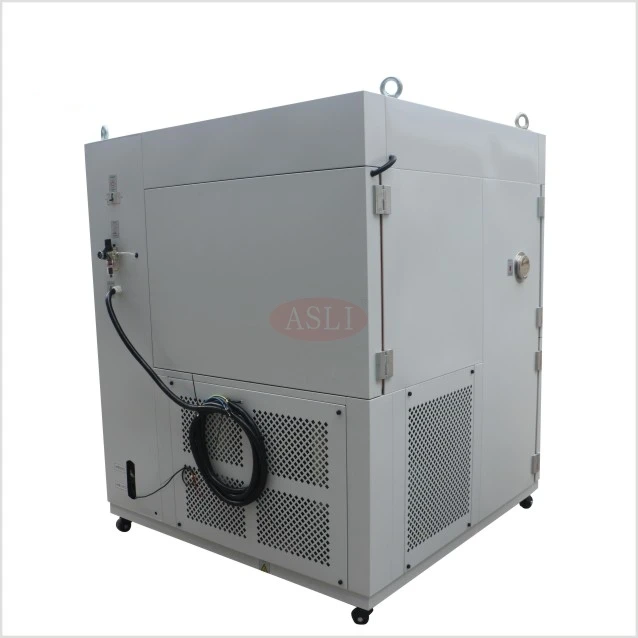

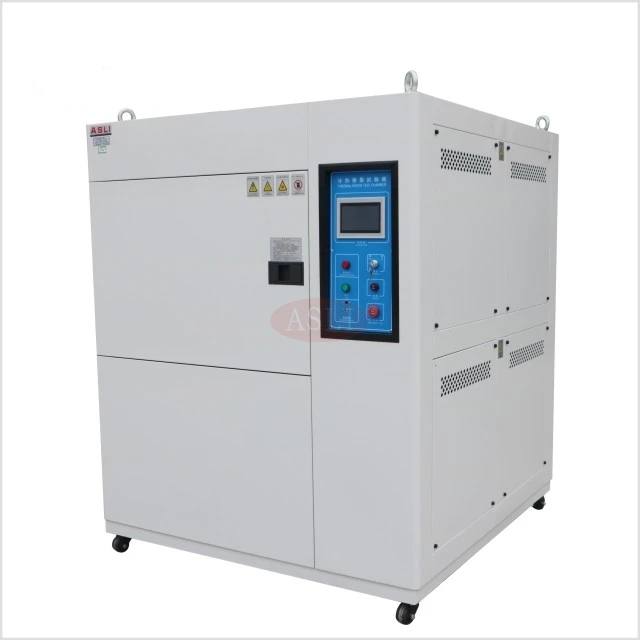

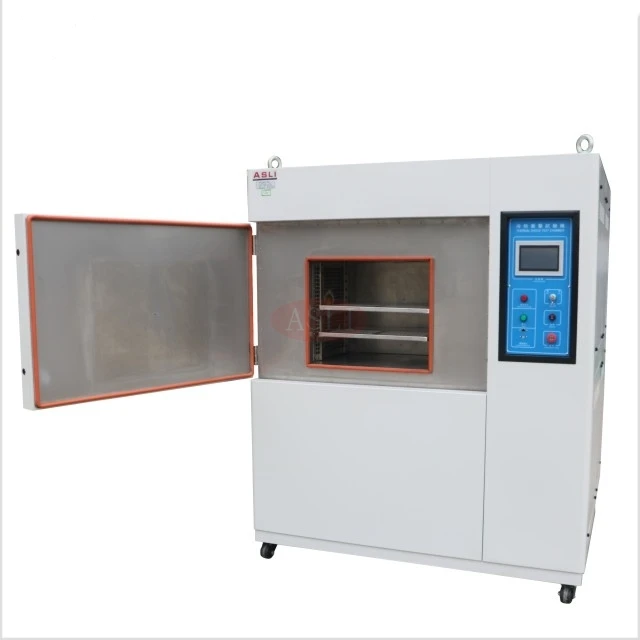

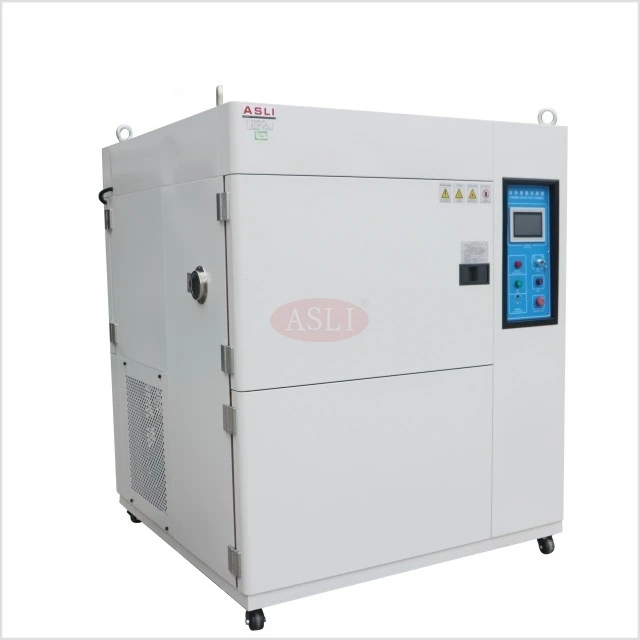

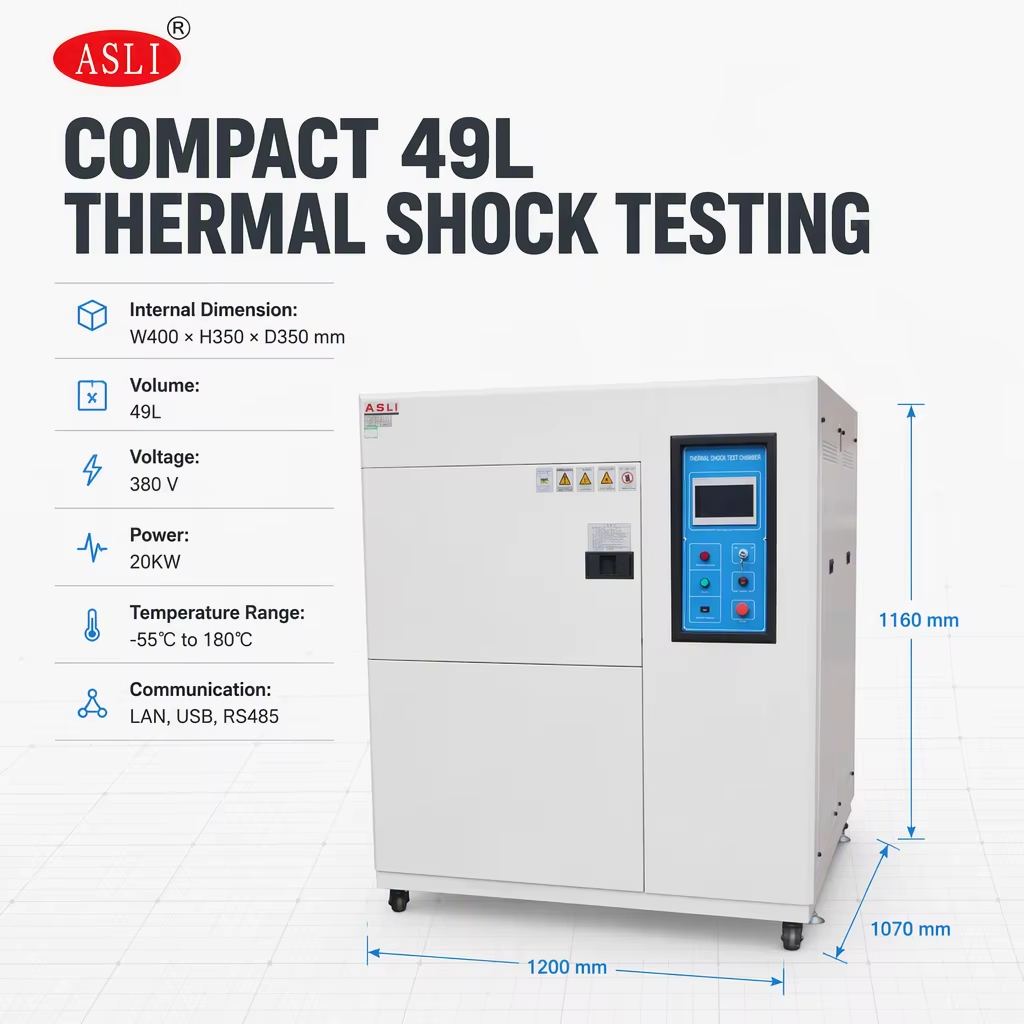

The JEDEC22-A104 Thermal Cyling Temperature Shock Testing Two In One Chamber is designed for advanced reliability testing of semiconductor devices, integrated circuits, and electronic components under extreme temperature conditions.
This chamber integrates thermal cycling, rapid temperature change, and thermal shock testing functions in a single system, allowing laboratories to perform multiple environmental stress tests using one piece of equipment.
Compared with conventional test chambers, the system can simulate rapid temperature transitions while maintaining precise environmental control. It is especially suitable for semiconductor reliability verification, automotive electronics validation, and high-performance electronic component testing.
In addition to temperature cycling and thermal shock testing, the chamber can also provide humidity control during high-temperature or linear temperature change conditions, enabling more comprehensive environmental simulation for demanding testing applications.
The system is designed to meet internationally recognized reliability testing standards widely used in semiconductor and automotive industries.
The Thermal Cyling Temperature Shock Testing Two In One Chamber is widely used for reliability testing in the following industries:
Semiconductor and integrated circuit testing
Automotive electronics validation
Electronic component reliability testing
PCB and module durability testing
Aerospace electronic component testing
Research laboratories and quality inspection centers
Two In One Environmental Test System
Combines thermal cycling and thermal shock testing functions in a single chamber to improve testing efficiency and reduce equipment investment.
Rapid Temperature Transition
Capable of performing rapid temperature change tests to simulate extreme environmental stress conditions.
Humidity Control Capability
Supports humidity control under high temperature and specific linear temperature change conditions for advanced environmental simulation.
Precise Temperature Control
Ensures stable and accurate temperature distribution during testing cycles.
High Reliability Design
Engineered for continuous laboratory operation with stable performance and durable construction.
The system supports testing requirements commonly used in semiconductor and automotive electronic reliability verification, including:
IEC 60749-4-2002
AEC-Q100
These standards are widely adopted for reliability evaluation of semiconductor devices and integrated circuits.
| Model | TH-80 | TH-150 | TH-225 | TH-408 | TH-800 | TH-1000 |
| Internal Dimension | 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 |
| WxHxD (mm) | ||||||
| External Dimension | 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450 |
| WxHxD (mm) | ||||||
| Temperature Range | T min: Low Temperature (A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) | |||||
| Tmax: High Temperature (150℃, 180℃, 200℃) | ||||||
| Humidity Range | Optional: ( 20%~98%R.H /10%-98% R.H. / 5%-98% R.H ) | |||||
| Analytic Accuracy/ | 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H. | |||||
| Distribution uniformity | ||||||
| of temperature | ||||||
| and humidity | ||||||
| Control Accuracy | ±0.5℃; ±2.5% R.H. | |||||
| of Temperature and | ||||||
| Humidity | ||||||
| Temperature Rising/ | Temperature rising approx. 0.1~3.0℃/min | |||||
| Falling Speed Rate | temperature falling approx. 0.1~1.5℃/min; | |||||
| ( The Falling Speed Rate Min.1.5℃per minute is a special optional condition) | ||||||
| Material |  The material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or |
|||||
| SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperatures, | ||||||
| high density, formate chlorine, ethyl acetum foam insulation materials | ||||||
| Cooling System | Wind cooling or water cooling/single segment compressor(-40℃, double segment | |||||
| compressor -70℃) | ||||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage | |||||
| coolant protection switch, over-humidity, and over-temperature protection switch, fuses, | ||||||
| fault warning system, water short storage warning protection | ||||||
| Optional Accessories | Inner door with operation hole, Recorder, Water Purifier, Dehumidifier | |||||
| Compressor | French Tecumseh Brand,Germany Bizer Brand | |||||
| Power | AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ | |||||
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 |
